GRACO CleanShot Repair Kit Range
GRACO CleanShot Repair Kit Range
1 1

GRACO CleanShot Repair Kit Range

SKU: 244162

GRACO CleanShot Repair Kit Range

$179.00 AUD
$179.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.
Model

Other payment options

View full details
GRACO CleanShot Repair Kit Range

GRACO CleanShot Repair Kit Range

From $66.00 AUD
From $66.00 AUD
Save $0
Sold out

Details

What's the GO?

Do you use a tip extension longer than 40cm? Then we recommend a CleanShot.

What tends to happen beyond 40cm is a back pressure build-up between the gun needle and the tip that, when you're attempting to cease spraying, causes spitting - compromising your finish.

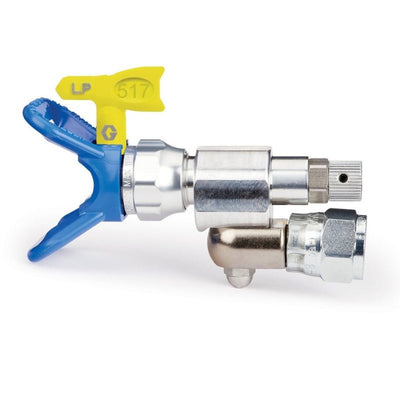

A Graco CleanShot, mitigates this issue by shutting on paint flow at the tip rather than just the gun.

Description:

  • Unique needle valve shuts fluid off at the tip for a clean pattern
  • Perfect for any fine finish applications where spitting and dripping slows the job. Spray skirtings, trim, doors, ceilings, walls and roofs with no inconsistencies.
  • No spitting 180 degrees tip swivel provides versatility when spraying walls and ceilings
  • Pressure-actuated - operates at a minimum of 700 psi (4.8 MPa, 48 bar)
  • Can be attached directly to any extension, or directly onto the hand piece. Provides clean fluid shut-off at the tip - no spitting



Graco CleanShot Repair Kit Range

Overview

Repair Kits for CleanShot Shut-Off Valve 287030

  • Unique needle valve shuts fluid off at the tip for a clean pattern
  • Perfect for any fine finish applications where spitting and dripping slows the job. Spray skirtings, trim, doors, ceilings, walls and roofs with no inconsistencies.
  • No spitting 180 degrees tip swivel provides versatility when spraying walls and ceilings
  • Pressure-actuated - operates at a minimum of 700 psi (4.8 MPa, 48 bar)
  • Can be attached directly to any extension, or directly onto the hand piece. Provides clean fluid shut-off at the tip - no spitting

Range:

  • CleanShot Shut-Off Valve Repair Kit 244162
  • CleanShot Swivel Repair Kit 244363



Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • Graco CleanShot Shut-Off Valve Manual 309642EN-J
  • GO Instruction Graco Cleanshot Shut-Off Valve Repair Kit 309515EN-B

Specifications

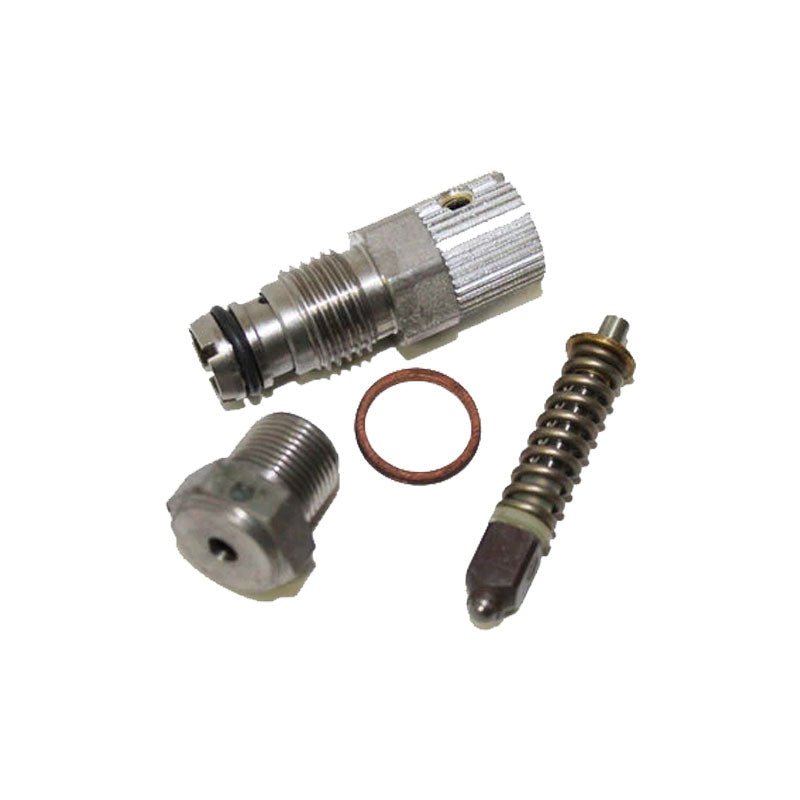

CleanShot Repair Kit 244162

TYPE Repair Kit
INCLUDES Valve Seat, Gasket, Ball Retainer, Spring Dampener, Compression Spring, Spring Guide, U-Cup Seal, Packing O-ring, U-Cup retainer, U-Cup Cap, Valve Knob
VALVE TYPE Cleanshot Shut Off Valve
MAXIMUM WORKING PRESSURE (PSI) 3600
MAXIMUM WORKING PRESSURE (KPA) 24800
MAXIMUM WORKING PRESSURE (MPA) 24.8
MAXIMUM WORKING PRESSURE (BAR) 248
