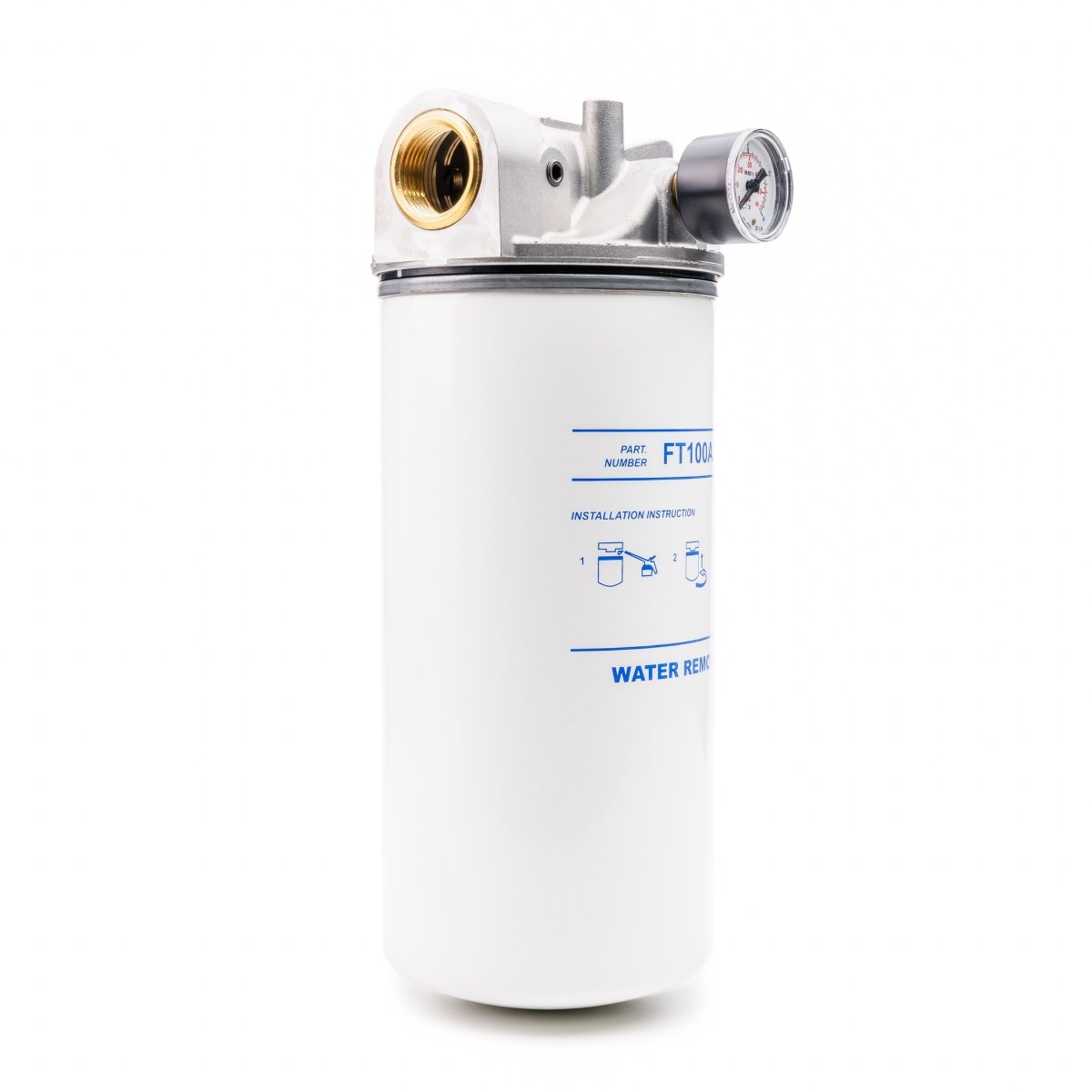

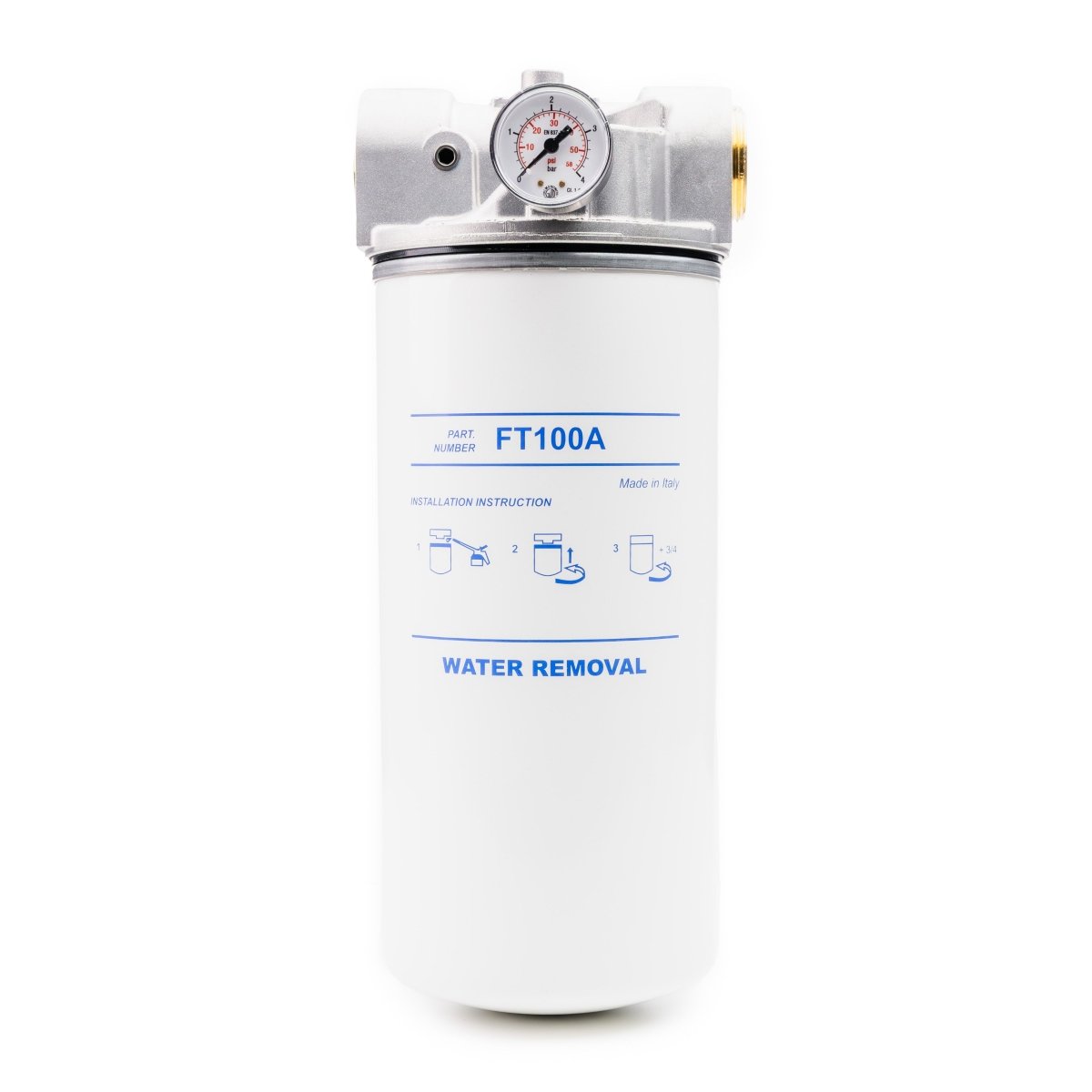

ADAM BY PIUSI Filter DN25 (1") BSP F 100lpm with Pressure Gauge Particulate and Water Removal

SKU: FT10XA

ADAM BY PIUSI Filter DN25 (1") BSP F 100lpm with Pressure Gauge Particulate and Water Removal

$330.00 AUD
$330.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.

Other payment options

Couldn't load pickup availability
View full details
ADAM BY PIUSI Filter DN32 (1.25

ADAM BY PIUSI Filter DN25 (1") BSP F 100lpm with Pressure Gauge Particulate and Water Removal

$330.00 AUD
$330.00 AUD
Save $0
Sold out

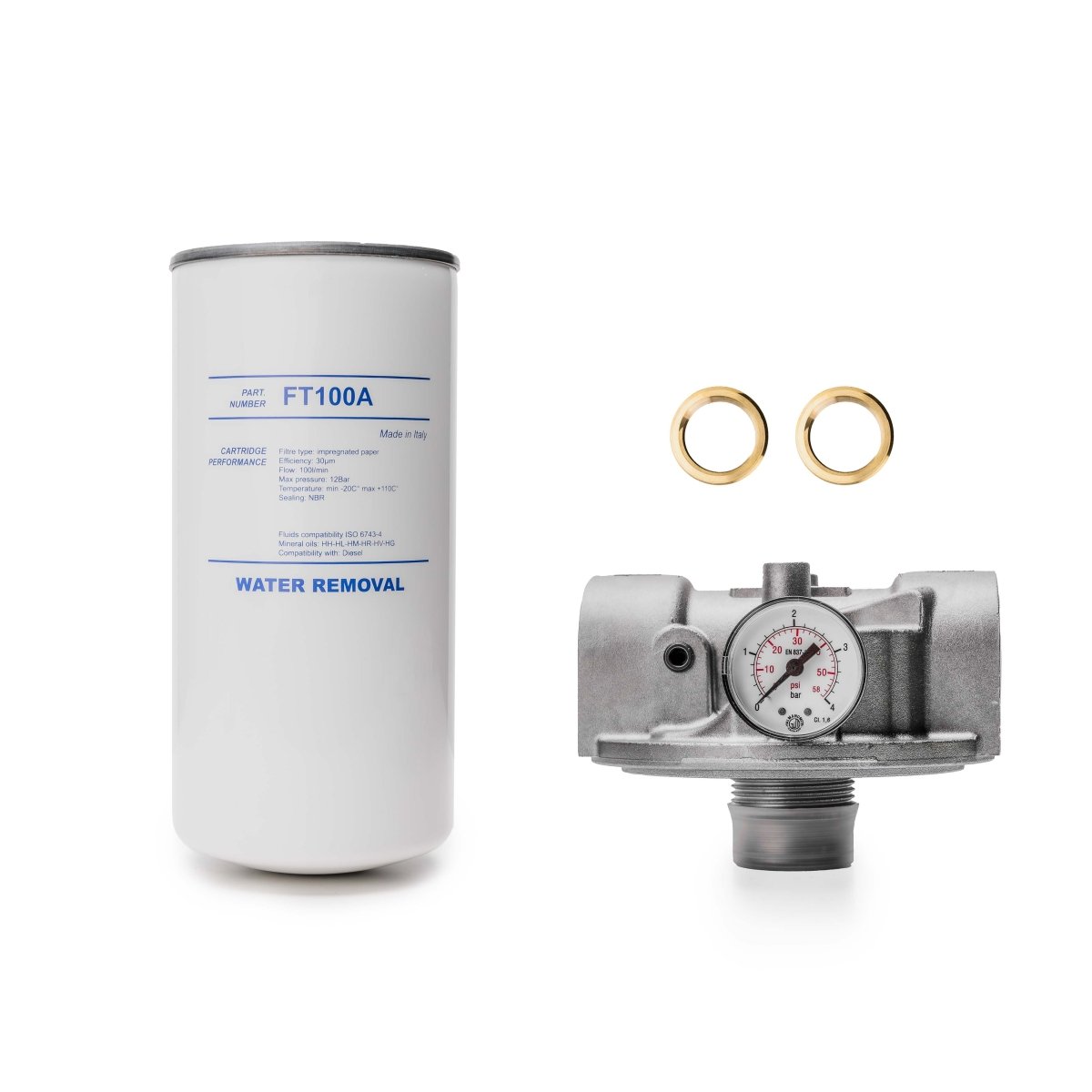

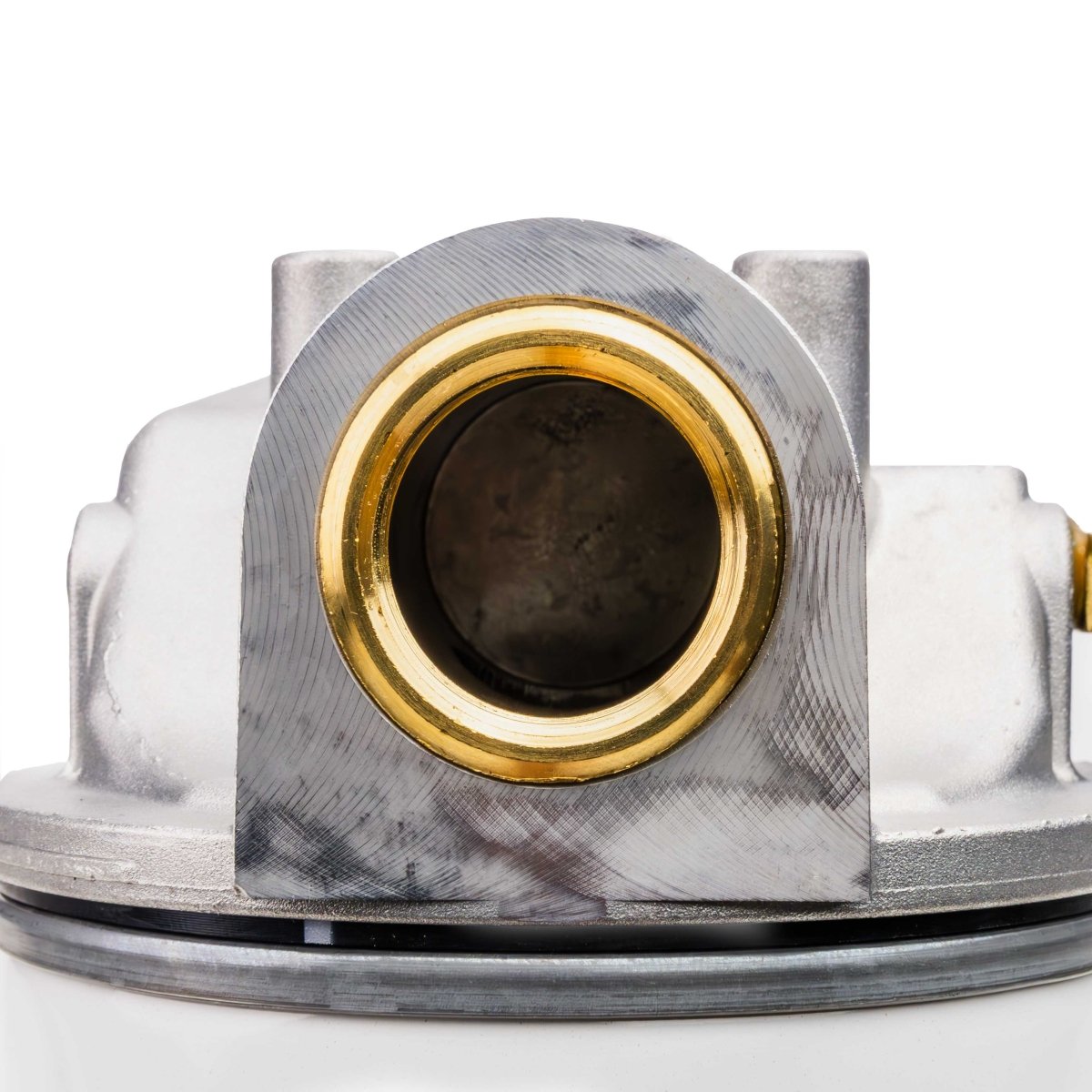

  • DN32 (1-1/4") BSP Female Inlet and Outlet supplied with DN25 (1") BSP Female Reducing Inserts
  • 30um Particulate and Water Removal

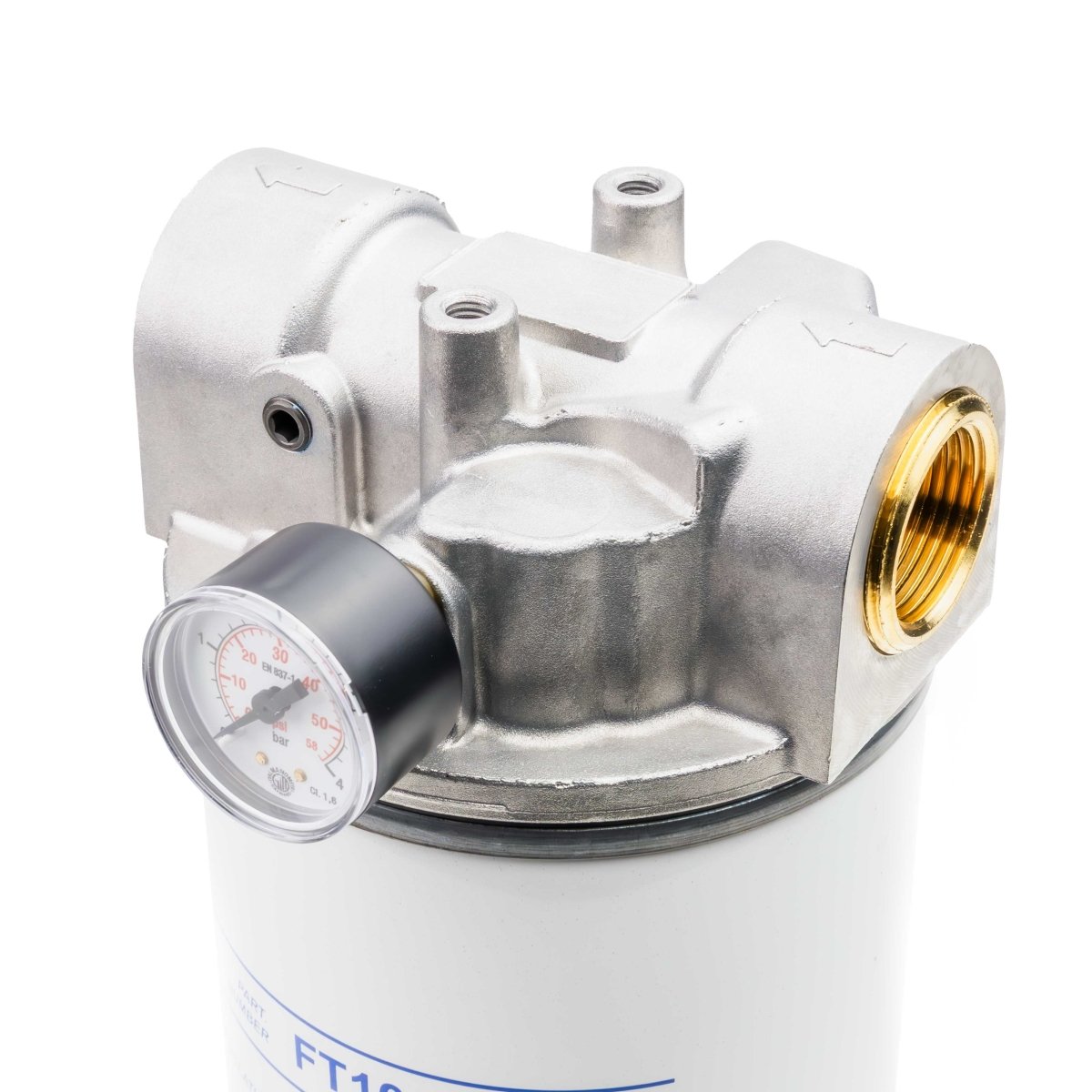

  • Flow Direction Cast on the Housing

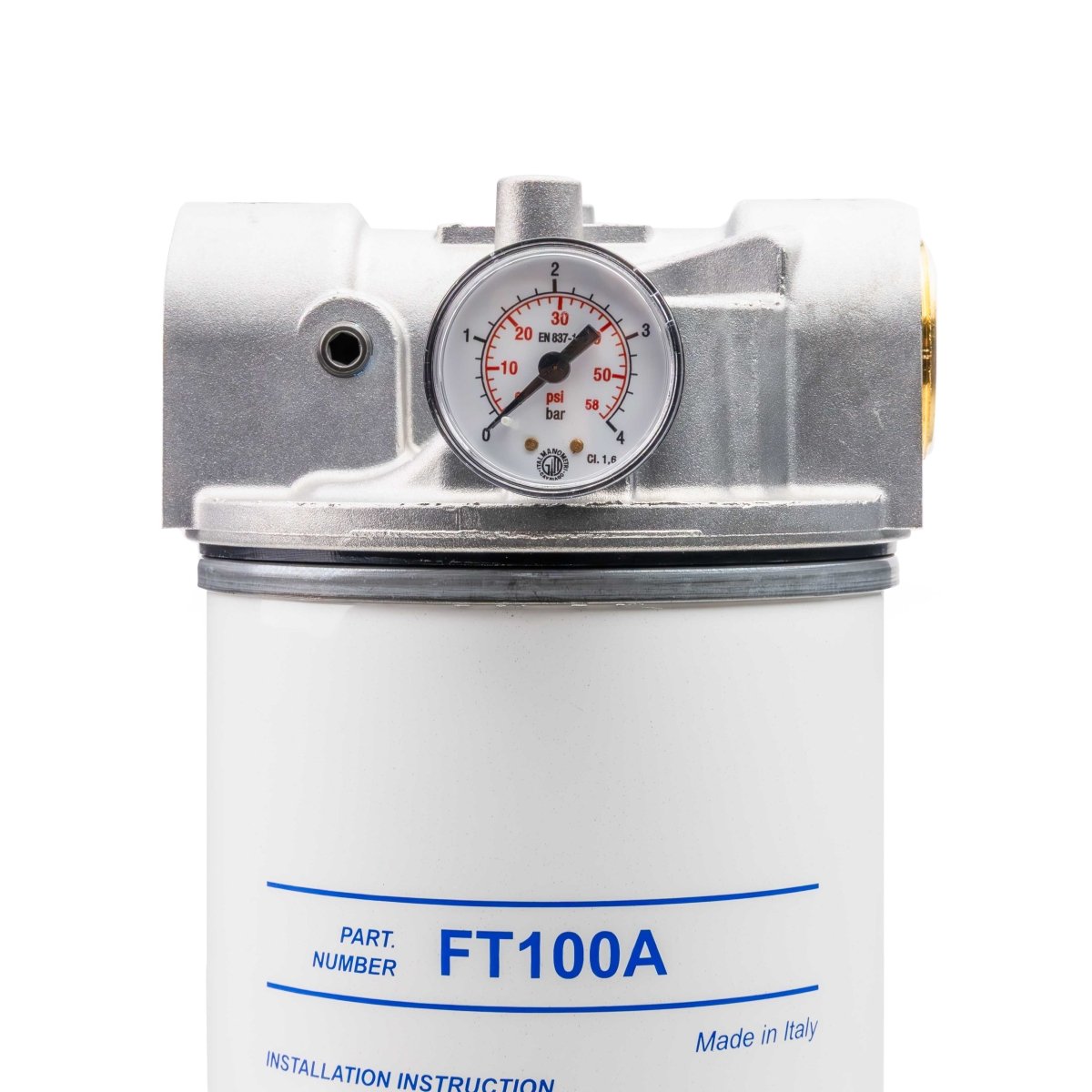

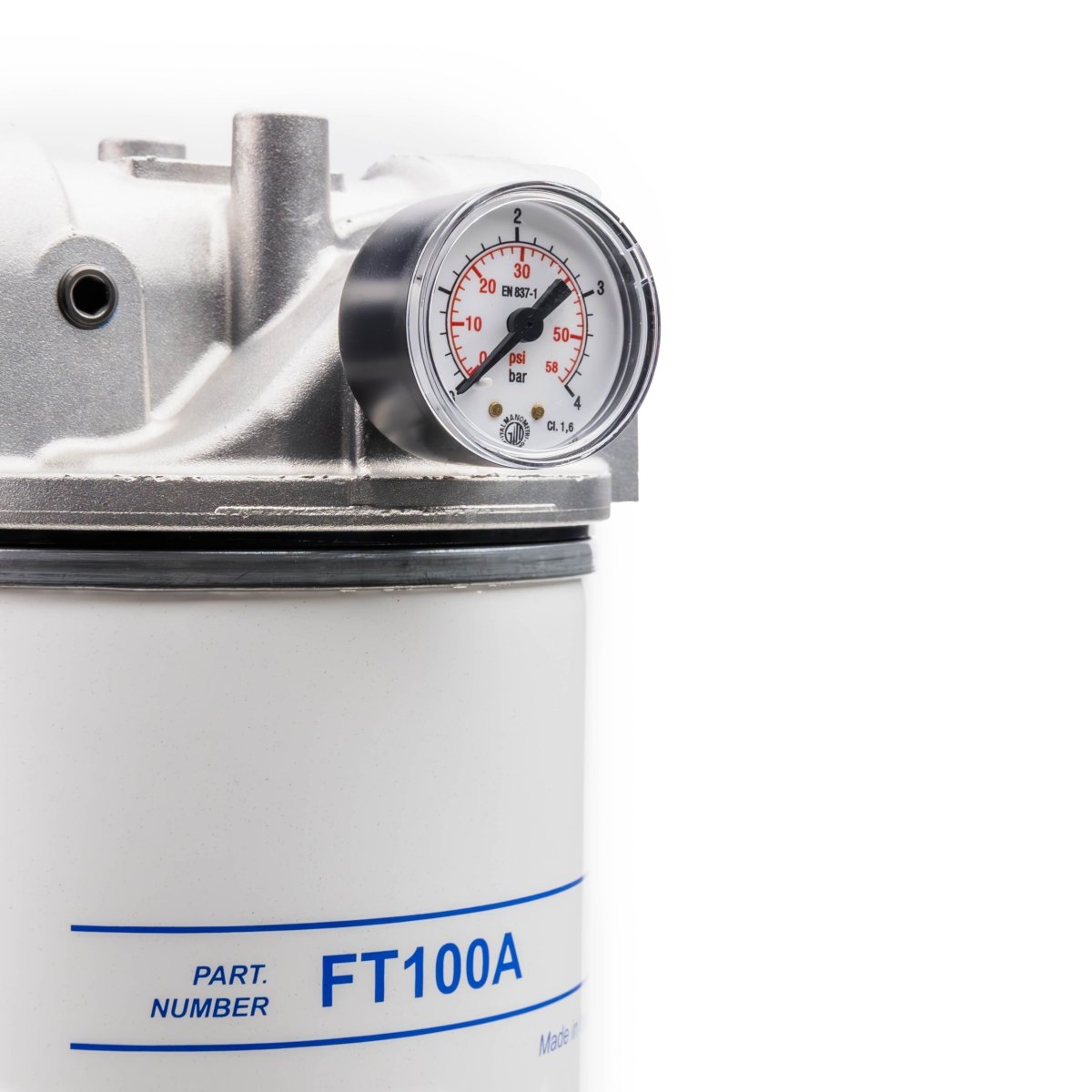

  • Saturation Level Indicator Pressure Gauge
  • Flow Rate up to 100lpm
  • Package Size 220mm L x 150mm W x 220mm H - 1.3kg
  • Suitable for use with Diesel

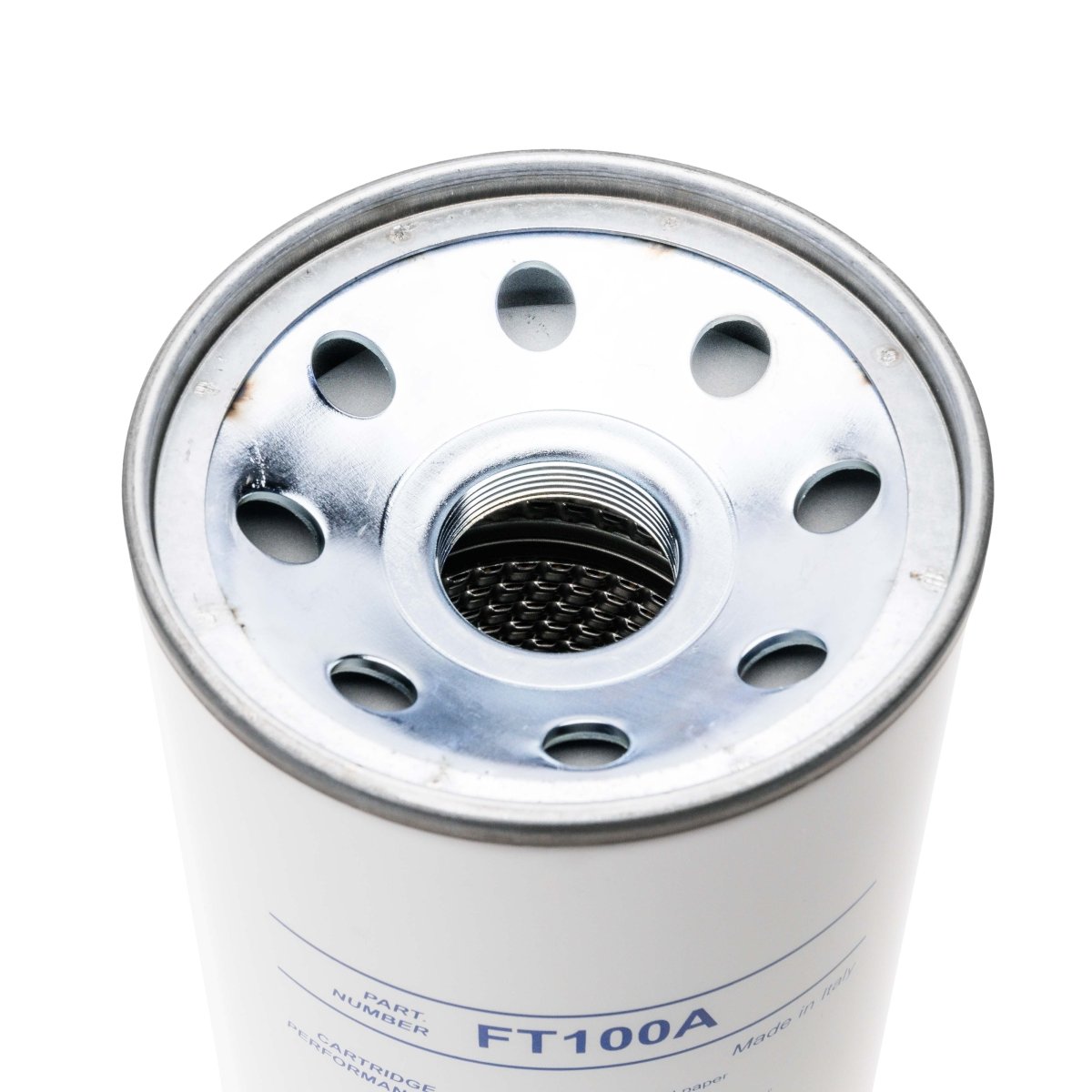

  • Replacement Element Code FT100A

Overview

Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the FT10XA Filter Kit, from GO Industrial, provides 30um Particulate and Water Filtration and is suitable to use with Diesel up to 100lpm.  This filter kit features a Saturation Level Indicator Pressure Gauge.  The thread size is DN32 (1.25") BSP Female.  The filter is supplied with DN25 (1") BSP Female reducing inserts.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • GO Data Sheet Adam by Piusi Filter FT10XA

Specifications

Filter type Particulate + Water removal
Efficiency [um] 30
Flow [l/min] 100
Max pressure [bar] 14
Temperature [°C] -20/+110
Sealing NBR
Fluid Compatibility diesel, light lubricants,
Thread DN32 (1-1/4") BSP Female Inlet and Outlet
Package Size 220mm L x 150mm W x 220mm H - 1.3kg
    • DN32 (1-1/4") BSP Female Inlet and Outlet supplied with DN25 (1") BSP Female Reducing Inserts
    • 30um Particulate and Water Removal
    • Flow Direction Cast on the Housing
    • Saturation Level Indicator Pressure Gauge
    • Flow Rate up to 100lpm
    • Package Size 220mm L x 150mm W x 220mm H - 1.3kg
    • Suitable for use with Diesel
    • Replacement Element Code FT100A
