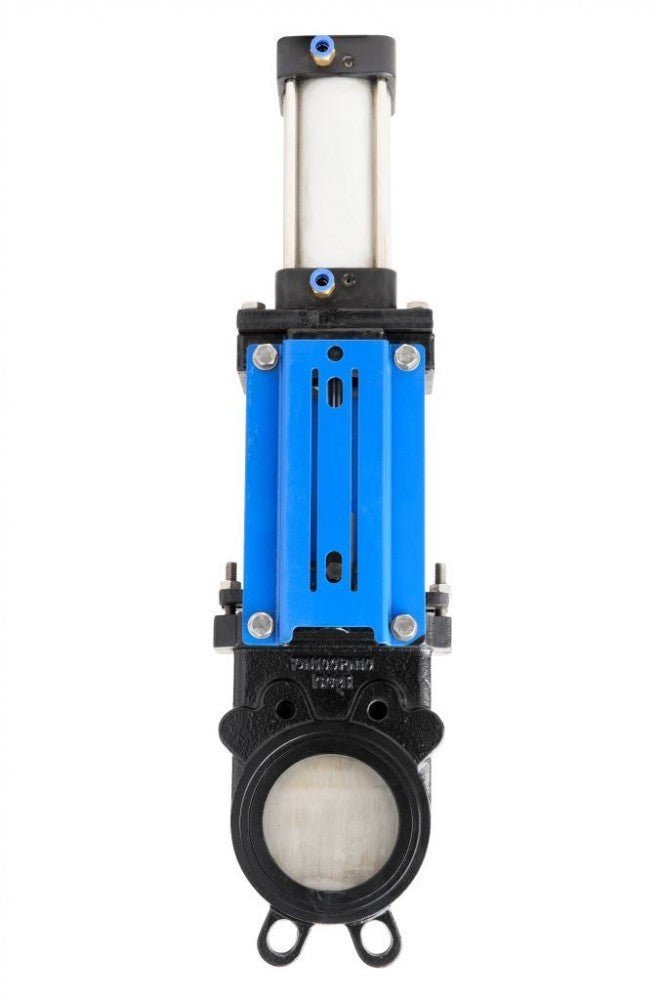

GO KGDDAN Cast Iron Knifegate Valves Actuated Double Acting Pneumatic
SKU: KGDDAN-50GO KGDDAN Cast Iron Knifegate Valves Actuated Double Acting Pneumatic
Other payment options
GO KGDDAN Cast Iron Knifegate Valves Actuated Double Acting Pneumatic
GO KGDDAN Cast Iron Knifegate Valves Actuated Double Acting Pneumatic
Overview
Cast iron wafer knife gate valve with resilient seat (NBR) and 316 stainless steel gate. Operated by a double acting pneumatic actuator and suitable for up to 10 BAR media pressure. Great for effluent, sewerage treatment plants and other applicable meadia (not recommended for abrasive media which will sit in seats). Suits table E flanges. Unique design allows for a long life and low maintenance once installed. Accepts bi-directional flow. Other flanges available upon request. Available with limit switches and striker. Designed to JB308, face to face according to DIN3202-K1 and tested to ISO5208.

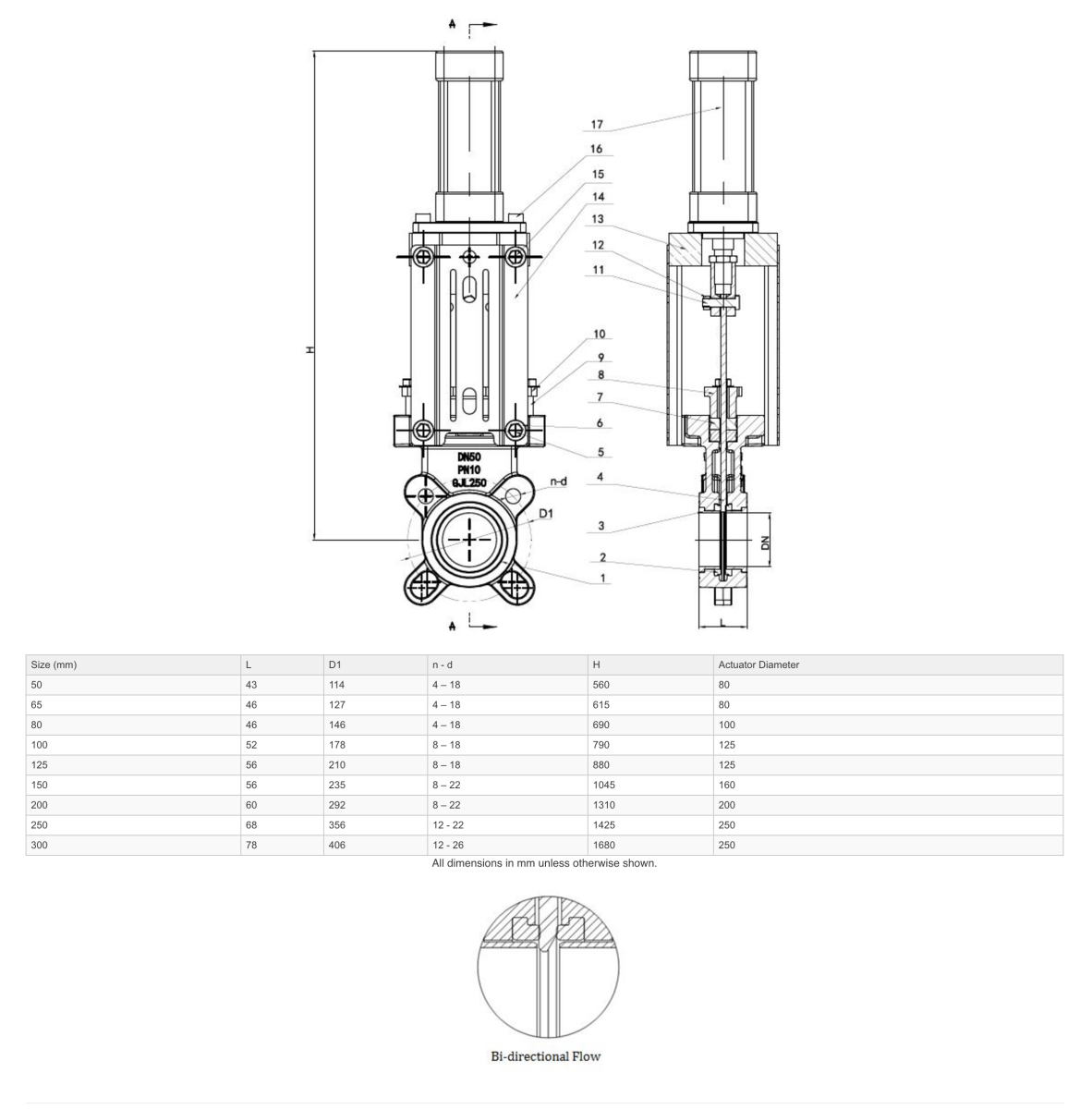

Specifications
| Model | Size (mm) | Pressure Range | Media Temperature | Weight (kg) | Cylinder Port Size |
|---|---|---|---|---|---|
| KGDDAN-50 | 50 | 0 to 10 BAR | 0°C to 80°C | 9 | 3/8" |
| KGDDAN-65 | 65 | 0 to 10 BAR | 0°C to 80°C | 12 | 3/8" |
| KGDDAN-80 | 80 | 0 to 10 BAR | 0°C to 80°C | 13 | 1/2" |
| KGDDAN-100 | 100 | 0 to 10 BAR | 0°C to 80°C | 15 | 1/2" |
| KGDDAN-125 | 125 | 0 to 10 BAR | 0°C to 80°C | 23 | 1/2" |
| KGDDAN-150 | 150 | 0 to 10 BAR | 0°C to 80°C | 27 | 1/2" |
| KGDDAN-200 | 200 | 0 to 10 BAR | 0°C to 80°C | 50 | 1/2" |
| KGDDAN-250 | 250 | 0 to 10 BAR | 0°C to 80°C | 80 | 3/4" |
| KGDDAN-300 | 300 | 0 to 10 BAR | 0°C to 80°C | 115 | 3/4" |
