GO EXD IECEX 316 Stainless Housing Limit Switch Box for Pneumatic Actuator

SKU: ALS600M2EX

GO EXD IECEX 316 Stainless Housing Limit Switch Box for Pneumatic Actuator

Regular price $1,166.00 AUD
Sale price $1,166.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GO EXD IECEX 316 Stainless Housing Limit Switch Box for Pneumatic Actuator - GO Industrial - ALS600M2EX

GO EXD IECEX 316 Stainless Housing Limit Switch Box for Pneumatic Actuator

Regular price $1,166.00 AUD
Sale price $1,166.00 AUD Regular price
Save $0
Sold out

Details

The solenoid can then be wired through the second conduit entry. The sight dome is colour coded for instant clarification of the valve position. Yellow for open and red for closed.

GO EXD IECEX 316 Stainless Housing Limit Switch Box for Pneumatic Actuator

Overview

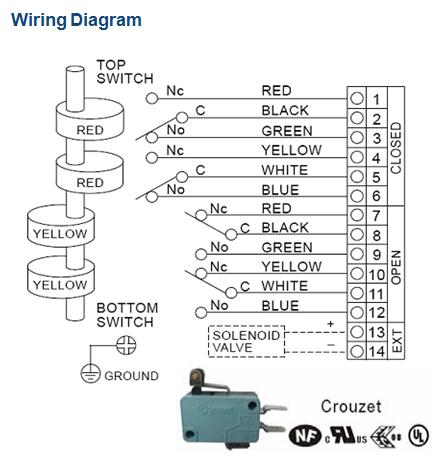

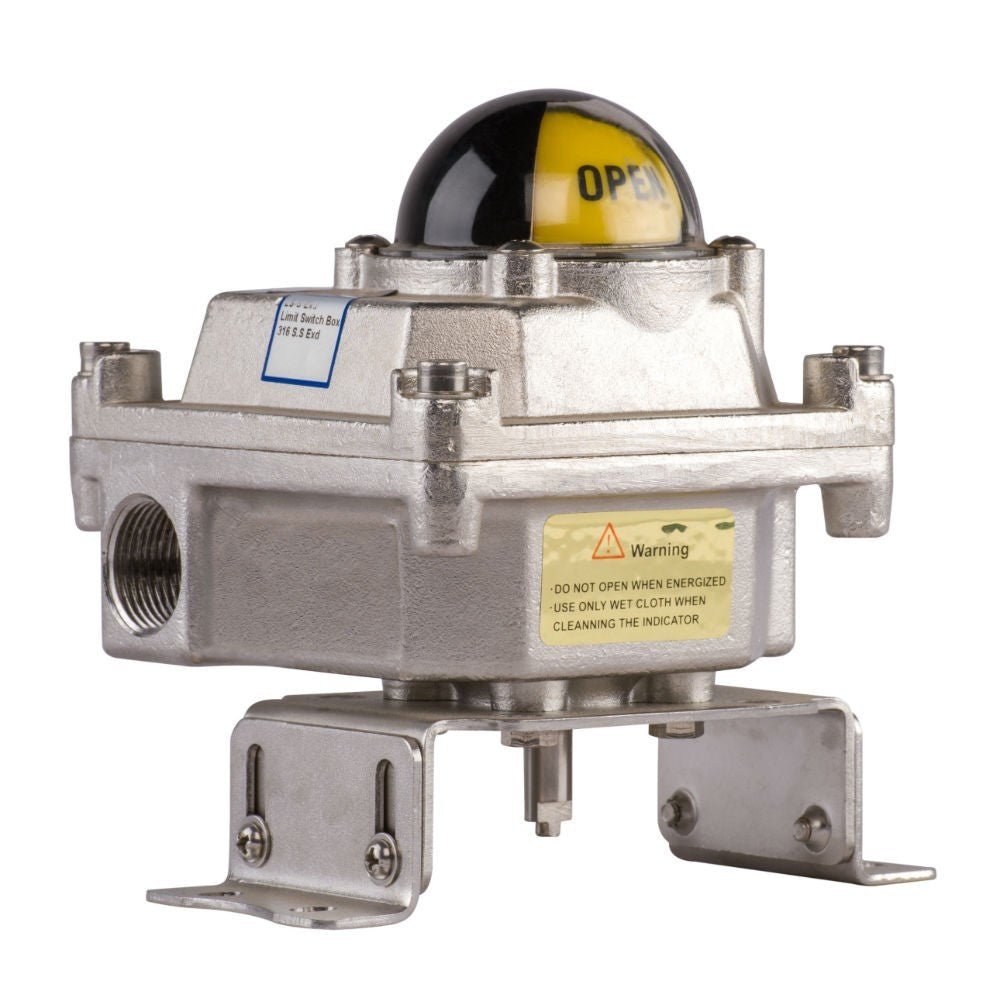

Our hazardous area limit switch box is designed to mount onto the top of pneumatic actuators to give position feedback. Four adjustable SPDT mechanical switches (two for open and two for closed) are wired into a terminal block. It also has termination for a solenoid valve so that a single multiple cable can be used.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      Specifications

    • Function IECex Limit Switch Box
    • Switches 2 x SPDT
    • Body 316 Stainless Steel
    • IP Rating IP66
    • Enclosure 316 Stainless Steel
      Coating Dichromate conversion with polyester powder coating
      O-Rings NBR
      Environment IP66
      Fasteners Stainless Steel
      Shaft Stainless Steel
      Conduit Entries Two M20 x 1.5
      Terminal Strip Contacts 14
      Mounting Bracket MB- 3.4:30 x 80, 130 H:20, 30 carbon steel or 316 SS
      Temperature Rating -20°C to 85°C
      Operating Voltage Max 15A
