Enquire For Price
| Electrical specifications | ||
|---|---|---|
| Operating voltage | 380 ... 415 V | |
| Operating current | 63 A max. | |
| Terminal capacity | ||
| Main terminals capacity | 16 mm2 | |
| Main terminals torque | 3 Nm | |
| Supply frequency | 50/60 Hz | |
| Function | socket | |
| Usage category | AC3: 415 V AC - 63 A | |
| Number of poles | 4 | |
| Color coding according to IEC 60309 | red | |
| Protective contact position according to IEC 60309 | 6 h | |
| Mechanical specifications | ||
| Cable type | non-armored cables | |
| Cover fixing | ||
| Screws | M6 | |
| Number | 4 | |
| Tightening torque | 3 Nm | |
| Degree of protection | IP66 | |
| Cable entry | ||
| Number of cable entries | 2x M50 1x Cable gland , 1x Stopping Plug |
|
| Cable entry face B | ||
| M50 clamping range | 22 ... 35 mm | |
| Material | ||
| Housing | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) | |
| Finish | inherent color black | |
| Mass | 8.25 kg | |
| Dimensions | ||
| External dimension (A) | 371 mm | |
| External dimension (B) | 201 mm | |
| External dimension (C) | 248 mm | |
| Mounting holes distance (G) | 352 mm | |
| Mounting holes distance (H) | 181 mm | |
| Mounting holes diameter (J) | 9 mm | |
| Maximum external dimension (K) | 472 mm | |

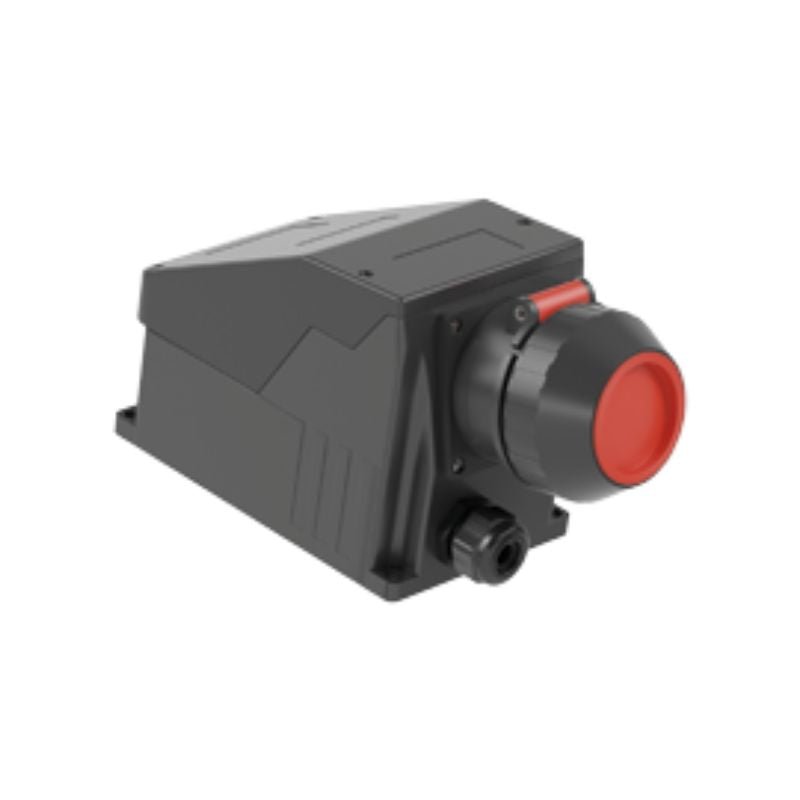

Pepperl+Fuchs PS63-440600 Socket 63A, 4 Pole in Red
SKU: PF-70125606Pepperl+Fuchs PS63-440600 Socket 63A, 4 Pole in Red
Regular price
$6,829.00 AUD
Sale price
$6,829.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Other payment options
Couldn't load pickup availability
The Basics
- Ex de and Ex t certified
- Glass-fiber reinforced polyester (GRP) enclosure
- Full equipment certified
- Installation in Zone 1, Zone 2, Zone 21 and Zone 22
- Degree of protection IP66
- Degree of protection ensured by means of bayonet catch
- Low insertion force
- Self-cleaning lamellar contacts
| Electrical specifications | ||
|---|---|---|
| Operating voltage | 380 ... 415 V | |
| Operating current | 63 A max. | |
| Terminal capacity | ||
| Main terminals capacity | 16 mm2 | |
| Main terminals torque | 3 Nm | |
| Supply frequency | 50/60 Hz | |
| Function | socket | |
| Usage category | AC3: 415 V AC - 63 A | |
| Number of poles | 4 | |
| Color coding according to IEC 60309 | red | |
| Protective contact position according to IEC 60309 | 6 h | |
| Mechanical specifications | ||
| Cable type | non-armored cables | |
| Cover fixing | ||
| Screws | M6 | |
| Number | 4 | |
| Tightening torque | 3 Nm | |
| Degree of protection | IP66 | |
| Cable entry | ||
| Number of cable entries | 2x M50 1x Cable gland , 1x Stopping Plug |
|
| Cable entry face B | ||
| M50 clamping range | 22 ... 35 mm | |
| Material | ||
| Housing | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) | |
| Finish | inherent color black | |
| Mass | 8.25 kg | |
| Dimensions | ||
| External dimension (A) | 371 mm | |
| External dimension (B) | 201 mm | |
| External dimension (C) | 248 mm | |
| Mounting holes distance (G) | 352 mm | |
| Mounting holes distance (H) | 181 mm | |
| Mounting holes diameter (J) | 9 mm | |
| Maximum external dimension (K) | 472 mm | |
