Elcometer 224 Digital Surface Profile Gauge Range

SKU: E224C-BI

$1,007

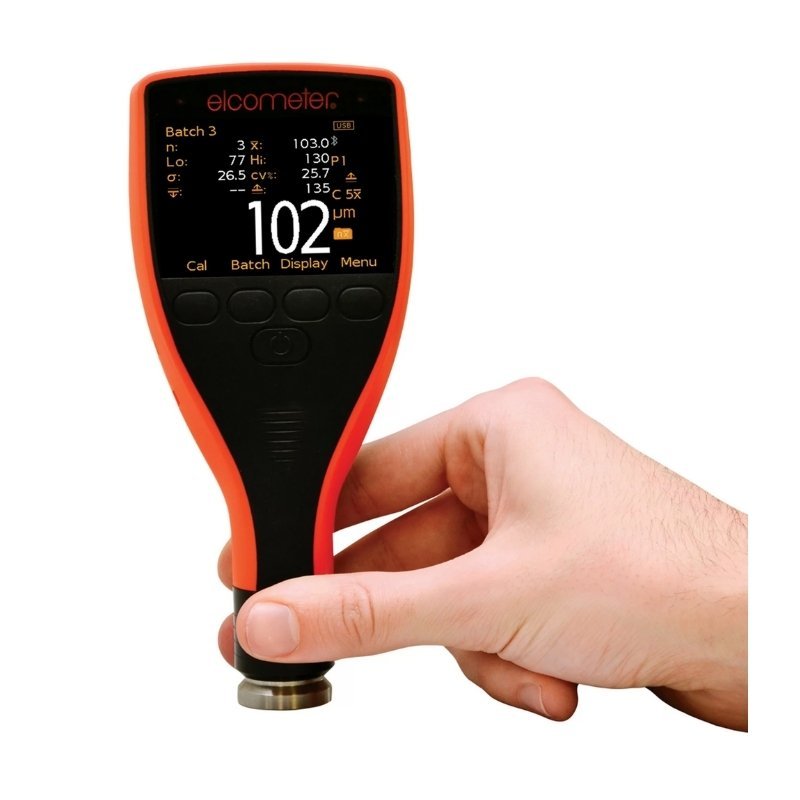

Elcometer 224 Digital Surface Profile Gauge

The Elcometer 224 provides the very latest in surface profile measuring technology for measuring profile on either flat or curved surfaces.

  • Fast and reliable peak-to-valley surface profile measurement
  • Accurately measure surface profile on flat or curved surfaces up to 500μm (20mils)
  • Measures both average peak-to-valley and average maximum peak-to-valley height
  • Portable, rugged hand-held design is ideal for field use

Available In:

  • Model B (Basic) - Entry Level model
  • Model T (Top) - Top of the Range model with memory, alpha-numeric batching and Bluetooth ® communication.

Both models either come with an integrated gauge with an in-built probe or with a separate gauge which allows for the use of multiple probes for flexibility (probes sold separately).

Standard and armoured probes are also available for the separate models, providing even greater measurement flexibility.  Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils (nominal values 125µm (5.0mils) & 500µm (20mils)) and an Elcometer Test Certificate.

How to measure surface profile



How the Elcometer 224 Model T Surface Profiler Works
1. Ensure probe is 90° to substrate to ensure accurate readings and calibrate the gauge on a glass zero tile.

2. To take one spot measurement, take either 5 or 10 readings within a 100mm (4”) diameter area.



3. The measurement displayed is either the average peak-to-valley height or the maximum reading of the 5 or 10 readings, depending on which measurement mode you have selected.

4. To establish the average surface profile of an area, record 5 spot measurements for each 1m x 1m (3ft x 3ft) area.
