GO Airline Regulator Range REG
SKU: REG-02
$44
GO Airline Regulator Range REG

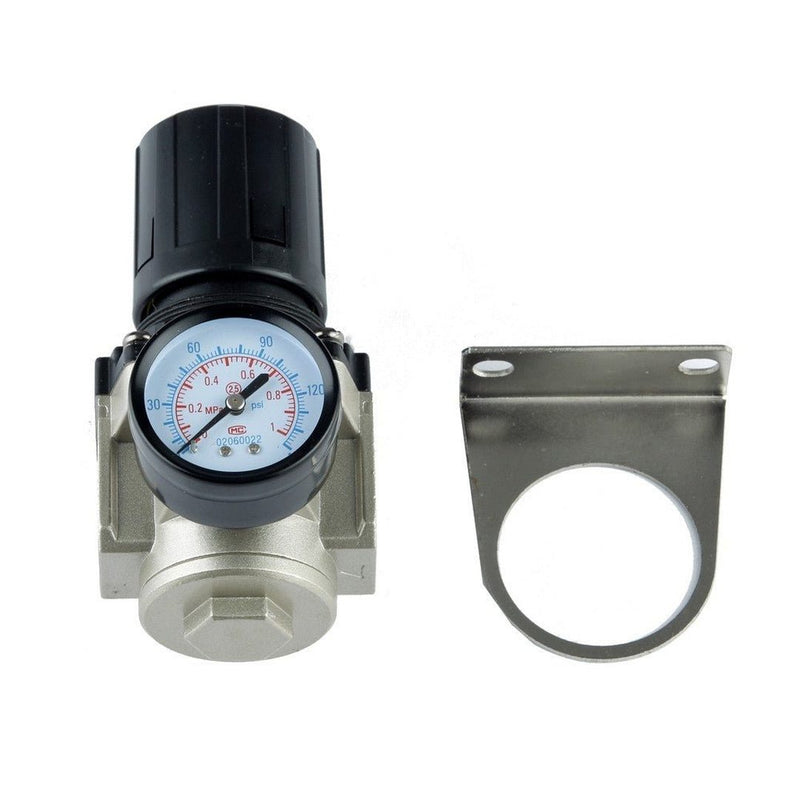

This air regulator operates in air line to regulate the downstream air pressure. If the downstream air pressure becomes to high it will relieve to atmosphere to balance the pressure back to the set point. Available from 1/4" to 2" BSP and comes with gauge & bracket. Commonly used in almost all domestic and industrial air lines as it ensures a constant pressure to air tools and systems.
- Size 1/4" to 2" BSP
- Function Air Regulator - Relieving
- Body Die Cast Aluminium
- Pressure Range 0.5 to 8.5 BAR
- Media Air

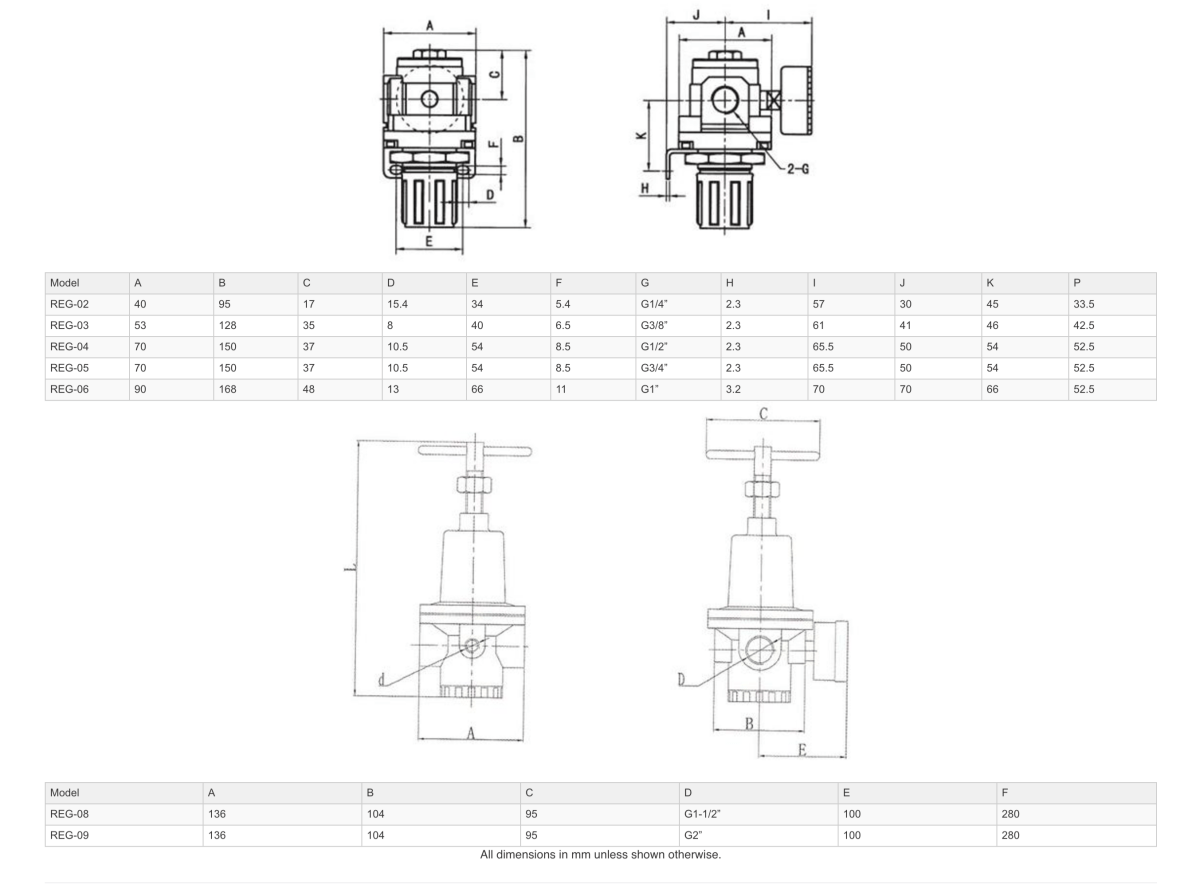

| Specification | REG-02 | REG-03 | REG-04 | REG-05 | REG-06 | REG-08 | REG-09 |
|---|---|---|---|---|---|---|---|
| Port Size (BSPP) | 1/4” | 3/8” | 1/2” | 3/4” | 1” | 1 ½” | 2” |
| Flow Rate L/min | 550 | 2500 | 6000 | 8000 | 8000 | ||
| Pressure Range | 0.5 BAR to 8.5 BAR | 0.5-16 BAR | |||||
| Max Inlet Pressure | 10 BAR | 16 BAR | |||||
| Medium Temperature | 0 to 60°C | ||||||
| Relief Pressure | Set Pressure + 0.5 BAR (relief flow rate of 0.1 L/min) | ||||||
| Construction | Relief Type, Die Cast Aluminium | ||||||
| Gauge Port Size | 1/8" | 1/4" | 1/8" | ||||
