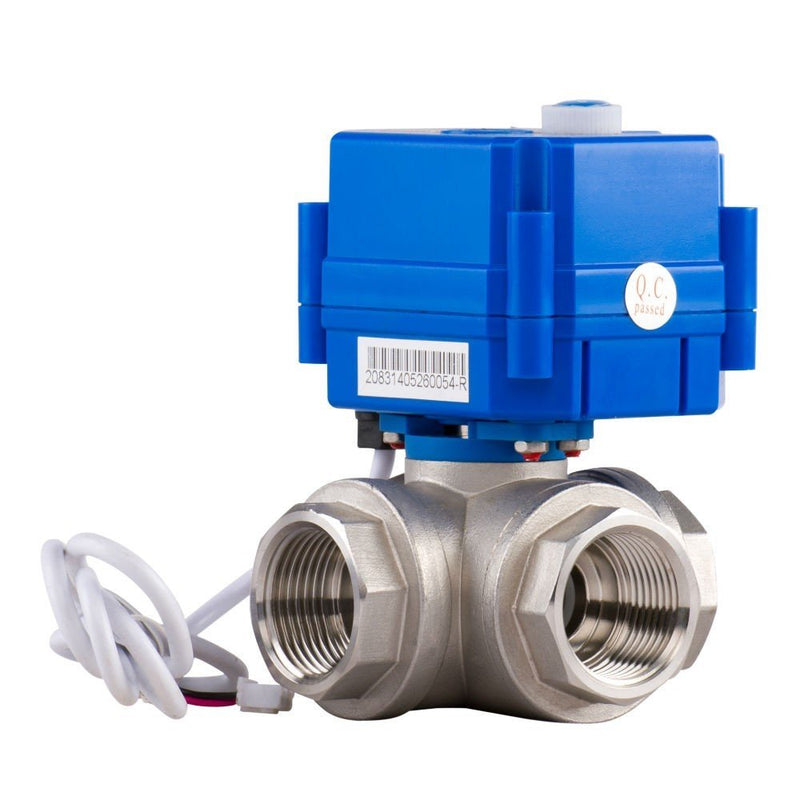

GO Ball Valve Actuated Capacitor Return 3 Way 316 Stainless 1/2
Skip to product information
1 of 1

It has a wide range of industry applications namely; dirty or contaminated fluids, viscous fluids, some corrosive fluids (check compatibility), gravity feed applications, anti water hammer slow close function, IP67 corrosive resistant enclosure, low power/solar/battery operated circuits (12-24v AC/DC).

ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.  The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.



Body Material 316 S.S
Ball Material 316 S.S
Seat Material PTFE with Viton O’Ring
Enclosure Thermoplastic IP65
Current 5 Watt Max (45 ~ 100 mA)
Current Draw at rest (open or close position) 20 Milli Amp
Capacitor Charge Time 30 Seconds
Open/Close Time 3 Seconds
Mounting Any Attitude
Media Pressure 10 BAR Max
Media Temperature 0°C to 90°C
  • Size 1/2" to 3/4" BSP
  • Body 316 Stainless Steel
  • Seat PTFE
  • Pressure  10 BAR
  • Temperature 0°C to 90°C
  • Actuation Capacitor Return Low Voltage

GO Ball Valve Actuated Capacitor Return 3 Way 316 Stainless 1/2" to 3/4" Scr BSP BASM3 Range

SKU: BASM3L4B

GO Ball Valve Actuated Capacitor Return 3 Way 316 Stainless 1/2" to 3/4" Scr BSP BASM3 Range

Regular price $253.00 AUD
Sale price $253.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size

Other payment options

The Basics

The 3 way L port BAS series electrically actuated ball valves automatically returns the valve to its original position when de-energised. The compact design works in the same way as a solenoid valve and can be considered ‘fail safe’ once the storage capacitor has charged up (approx 30 seconds). Unlike a solenoid valve the 3 way series BAS can take full pressure in either direction, eliminating the need for a check valve.

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.  The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

          Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

          It has a wide range of industry applications namely; dirty or contaminated fluids, viscous fluids, some corrosive fluids (check compatibility), gravity feed applications, anti water hammer slow close function, IP67 corrosive resistant enclosure, low power/solar/battery operated circuits (12-24v AC/DC).

          ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.  The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

          Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.



          Body Material 316 S.S
          Ball Material 316 S.S
          Seat Material PTFE with Viton O’Ring
          Enclosure Thermoplastic IP65
          Current 5 Watt Max (45 ~ 100 mA)
          Current Draw at rest (open or close position) 20 Milli Amp
          Capacitor Charge Time 30 Seconds
          Open/Close Time 3 Seconds
          Mounting Any Attitude
          Media Pressure 10 BAR Max
          Media Temperature 0°C to 90°C
          • Size 1/2" to 3/4" BSP
          • Body 316 Stainless Steel
          • Seat PTFE
          • Pressure  10 BAR
          • Temperature 0°C to 90°C
          • Actuation Capacitor Return Low Voltage
