Typical applications include water treatment, chemical, marine, petrochemical and general industry.

GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Way BLS3DA

Overview

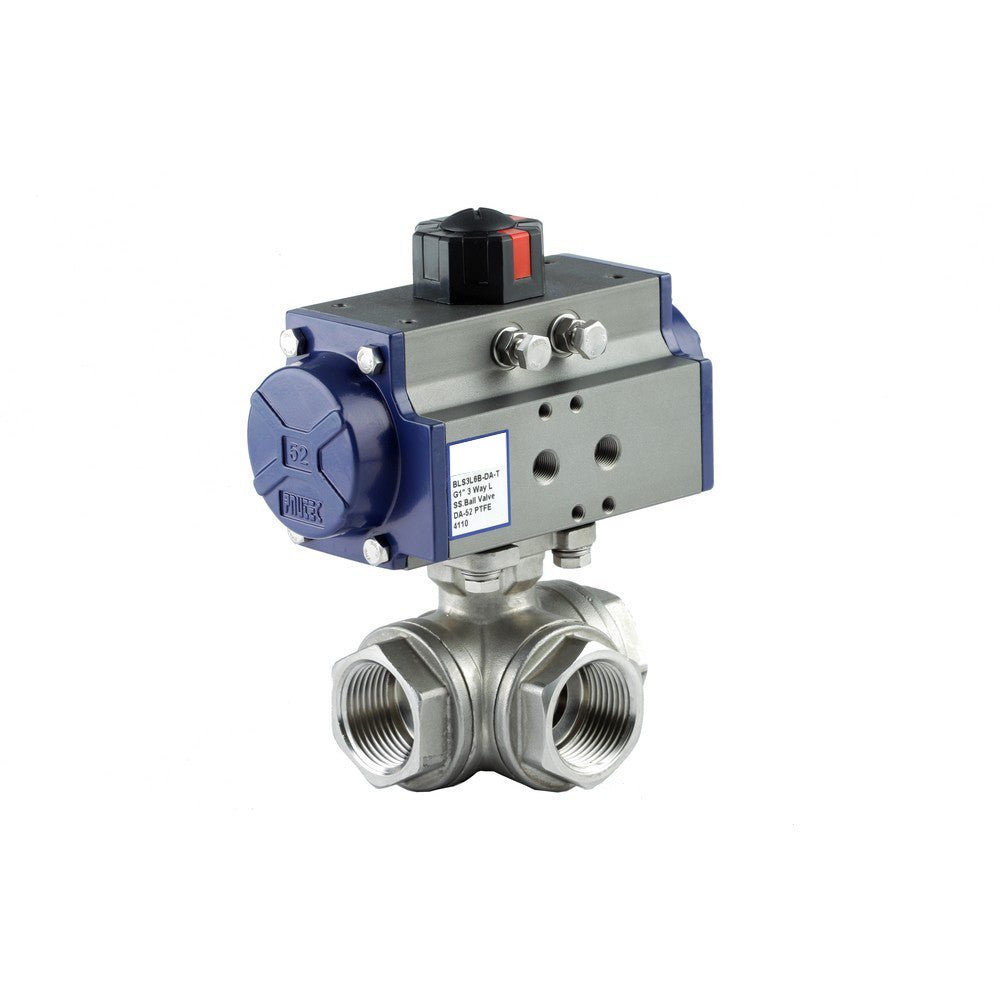

High performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

316 S.S 3 way, L port ball valve, with double acting actuator.G1/4",RTFE seat, FKM seals, live loaded packing. Vacuum to 68 BAR pressure range, media temp -20°C to 180°C.Anodised & coated aluminium double acting pneumatic actuator

  • Size 1/4" to 3" BSP
  • Body 316 Stainless Steel
  • Seat Reinfoced PTFE
  • Pressure 68 BAR
  • Temperature -20°C to 180°C
  • Actuation Double Acting Pneumatic
    • Model Size(BSP) Orifice (mm) Actuator Media Pressure Media Temperature Actuator Pressure
    BLS3L2B-DA-RT 1/4 8 DA50 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L3B-DA-RT 3/8 10 DA50 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L4B-DA-RT 1/2 12 DA50 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L5B-DA-RT 3/4 15 DA50 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L6B-DA-RT 1 20 DA50 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L7B-DA-RT 1 1/4 25 DA63 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L8B-DA-RT 1 ½ 32 DA75 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L9B-DA-RT 2 43 DA88 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L10B-DA-RT 2 ½ 55 DA100 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
    BLS3L11B-DA-RT 3 66 DA115 Vacuum to 68 Bar -20°C to 180°C 6 to 8 BAR
