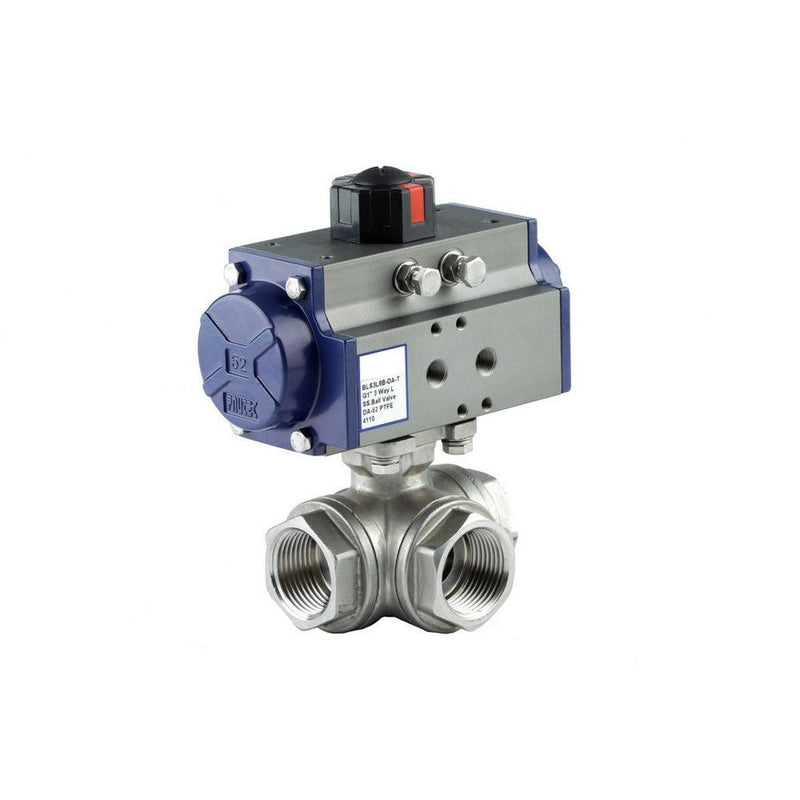

GO Ball Valve Actuated Double Acting Pneumatic 316 Stainless 3 Way 1/4" to 3" BLS3DA Range
SKU: BLS3L2B-DA
$204
GO Ball Valve Actuated Double Acting Pneumatic 316 Stainless 3 Way 1/4" to 3" BLS3DA Range

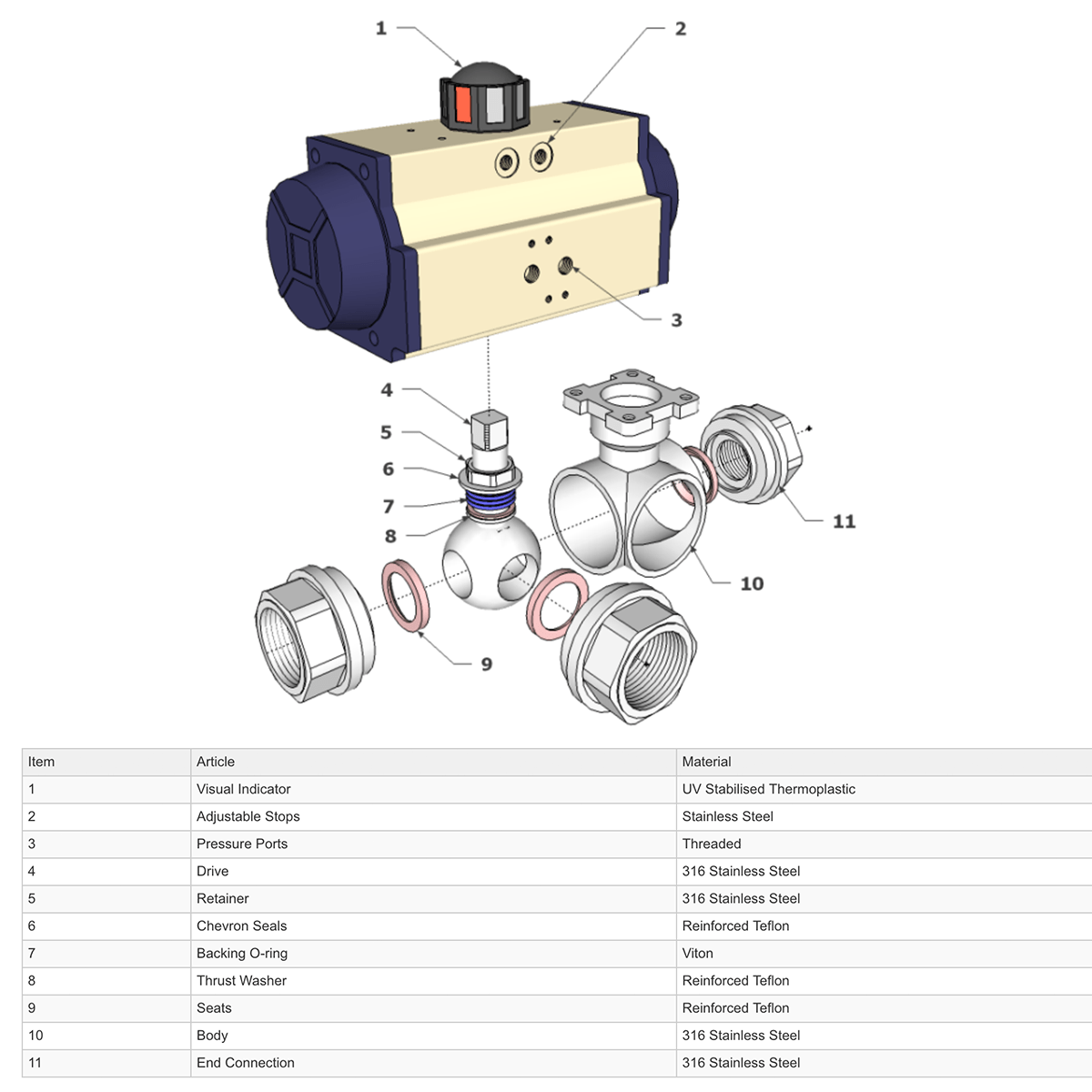

High performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C.
Typical applications include water treatment, chemical, marine, petrochemical and general industry.
- Size 1/4" to 3" BSP
- Body 316 Stainless Steel
- Seat Reinfoced PTFE
- Pressure 68 BAR
- Temperature -20°C to 180°C
- Actuation Double Acting Pneumatic
316 S.S 3 way, L port ball valve, with double acting actuator.G1/4",RTFE seat, FKM seals, live loaded packing. Vacuum to 68 BAR pressure range, media temp -20°C to 180°C.Anodised & coated aluminium double acting pneumatic actuator
| Model | Size(BSP) | Orifice (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|---|
| BLS3L2B-DA-RT | 1/4 | 8 | DA50 | Vacuum to 68 Bar | -20°C to 180°C | 6 to 8 BAR |
| BLS3L3B-DA-RT | 3/8 | 10 | DA50 | Vacuum to 68 Bar | -20°C to 180°C | 6 to 8 BAR |
| BLS3L4B-DA-RT | 1/2 | 12 | DA50 | Vacuum to 68 Bar | -20°C to 180°C | 6 to 8 BAR |
| BLS3L5B-DA-RT | 3/4 | 15 | DA50 | Vacuum to 68 Bar | -20°C to 180°C | 6 to 8 BAR |
| BLS3L6B-DA-RT | 1 | 20 | DA50 | Vacuum to 68 Bar | -20°C to 180°C | 6 to 8 BAR |
| BLS3L7B-DA-RT | 1 1/4 | 25 | DA63 | Vacuum to 68 Bar | -20°C to 180°C | 6 to 8 BAR |
| BLS3L8B-DA-RT | 1 ½ | 32 | DA75 | Vacuum to 68 Bar | -20°C to 180°C | 6 to 8 BAR |
| BLS3L9B-DA-RT | 2 | 43 | DA88 | Vacuum to 68 Bar | -20°C to 180°C | 6 to 8 BAR |
| BLS3L10B-DA-RT | 2 ½ | 55 | DA100 | Vacuum to 68 Bar | -20°C to 180°C | 6 to 8 BAR |
| BLS3L11B-DA-RT | 3 | 66 | DA115 | Vacuum to 68 Bar | -20°C to 180°C | 6 to 8 BAR |
