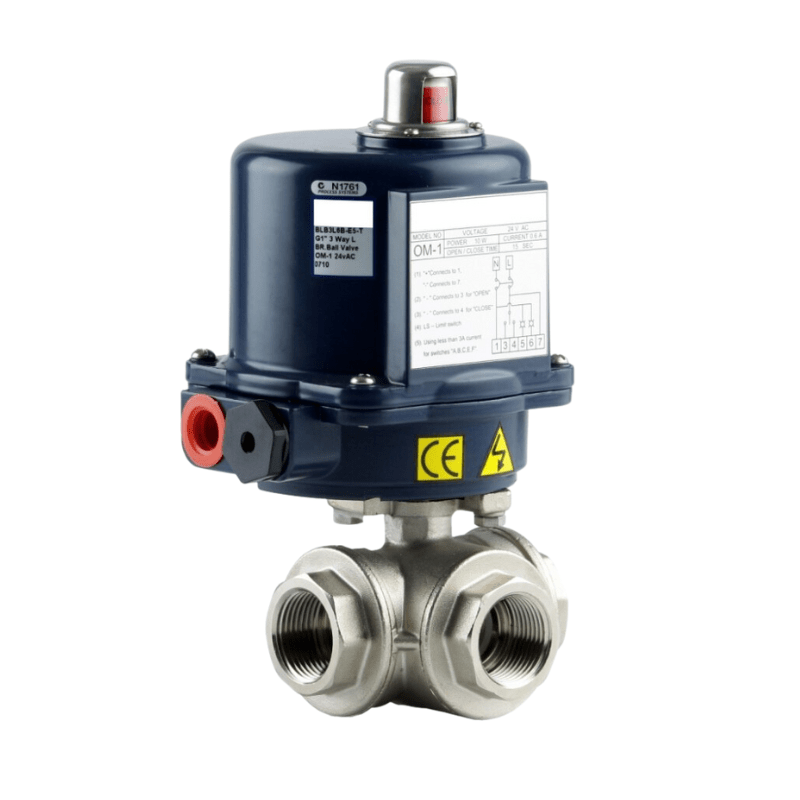

GO Ball Valve Actuated Electric 316 Stainless 3 Way 1/4" to 3" BLS3E Range

SKU: BLS3L2B-E

$594

GO Ball Valve Actuated Electric 316 Stainless 3 Way 1/4" to 3" BLS3E Range

High performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections and a IP67 electric actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C.

Typical applications include water treatment, chemical, marine, petrochemical and general industry.

  • Size 1/4" to 3" BSP
  • Body 316 Stainless Steel
  • Seat Reinfoced PTFE
  • Pressure  68 BAR
  • Temperature -20°C to 180°C
  • Actuation Electric

316 S.S 3 way, L port ball valve, with electric actuator IP67G2. RTFE seat, live loaded packing. Vacuum to 68 BAR pressure range, media temp -20°C to 180°C.OM-2-7LS 12vDC Handwheel override, extra limit switch set, visual indicator

Model Size(BSP) Orifice (mm) Actuator Media Pressure Media Temperature
BLS3L2B-E*-RT 1/4 8 0M-1 Vacuum to 68 Bar -20°C to 180°C
BLS3L3B-E*-RT 3/8 10 0M-1 Vacuum to 68 Bar -20°C to 180°C
BLS3L4B-E*-RT 1/2 12 0M-1 Vacuum to 68 Bar -20°C to 180°C
BLS3L5B-E*-RT 3/4 15 0M-1 Vacuum to 68 Bar -20°C to 180°C
BLS3L6B-E*-RT 1 20 0M-1 Vacuum to 68 Bar -20°C to 180°C
BLS3L7B-E*-RT 1 1/4 25 0M-1 Vacuum to 68 Bar -20°C to 180°C
BLS3L8B-E*-RT 1 ½ 32 0M-A Vacuum to 68 Bar -20°C to 180°C
BLS3L9B-E*-RT 2 43 0M-2 Vacuum to 68 Bar -20°C to 180°C
BLS3L10B-E*-RT 2 ½ 55 0M-2 Vacuum to 68 Bar -20°C to 180°C
BLS3L11B-E*-RT 3 66 0M-3 Vacuum to 68 Bar -20°C to 180°C
