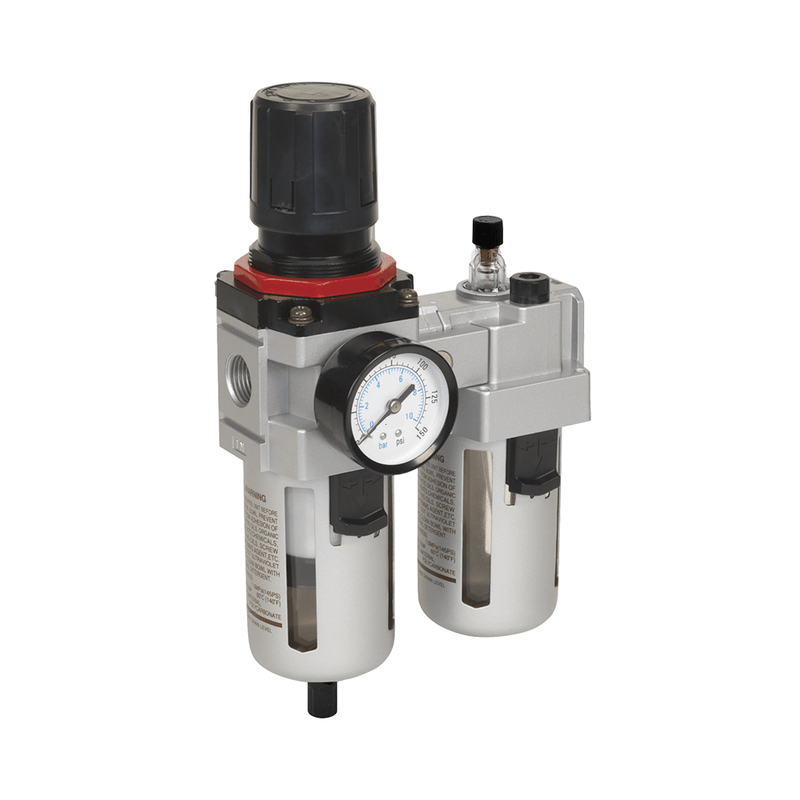

GO Filter Regulator and Lubricator Range FRL



GO Filter Regulator and Lubricator Range FRL

Modular style of air preparation equipment which includes a Filter Regulator and a Lubricator joined together by a mounting bracket. This cleans the air of water, oil and other suspended debris, regulates the downstream pressure and injects mico mist lubricant into the cleaned air to give air tools and machines longer life. Easy to install and service, all units come with mounting bracket, gauge, auto drain and polycarbonate bowl guard with sight glass.

  • Size 1/4" to 1" BSP
  • Function Filter, Regulator & Lubricator combo unit
  • Body Die Cast Aluminium
  • Pressure Range 0.5 to 8.5 BAR
  • Media Air
Specification FRL-02 FRL-03 FRL-04 FRL-05 FRL-06
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1”
Flow Rate L/min 500 1700 3000 4000 4000
Applicable Medium Air
Medium Temperature 0 to 60°C
Filtration 5µm
Maximum Inlet Pressure 9 Bar (130 PSI)
Regulated Pressure 0.5 to 8.5 Bar (8 PSI to 123 PSI)
Bowl Material Polycarbonate
Recommended Lubricant ISOVG32 or Equivalent
Bowl Guard Standard
Regulator Construction Relieving Type
Relief Pressure Set Pressure + 0.5 BAR (relief flow rate of 0.1 L/min)
Gauge Port Size G1/8” G1/4”
