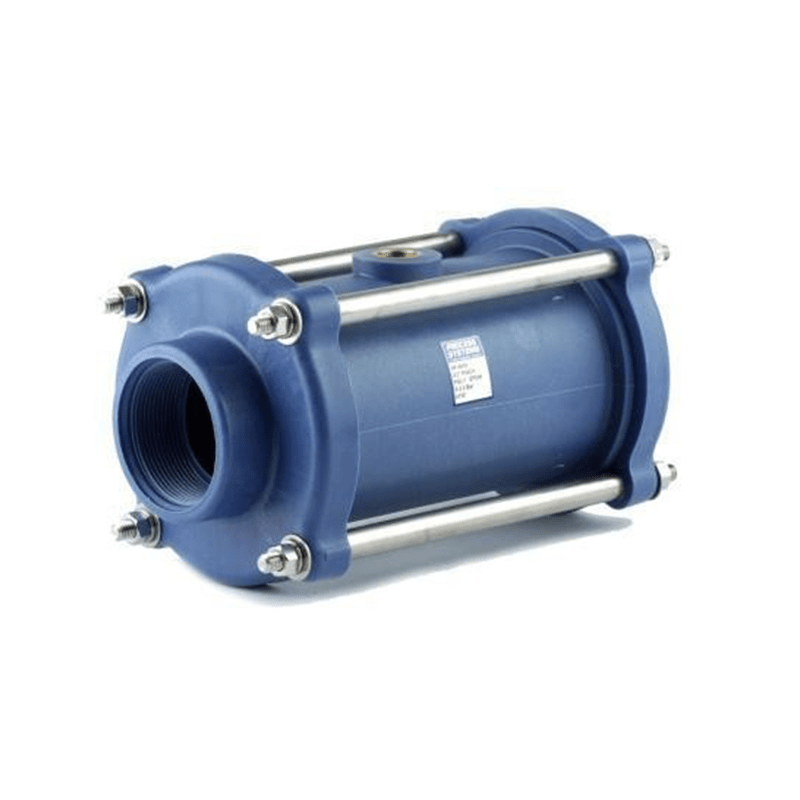

GO AP 1/4" to 2" PVC Body Pinch Valves
GO AP 1/4" to 2" PVC Body Pinch Valves
Overview

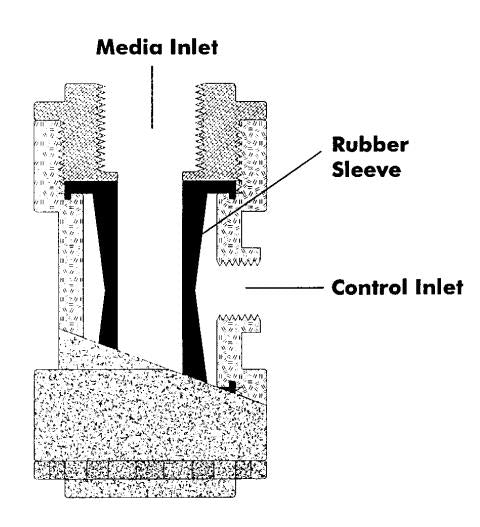

Air or liquid pressure at the control inlet collapses the internal rubber sleeve to provide immediate and positive shut off. The rubber sleeve closes completely even on large particles, abrasive and corrosive materials. When open it allows full, unobstructed flow with little turbulence. The sleeves can be easily replaced when they wear out. To fully close the sleeve the valve requires a signal pressure 1.3 BAR (20 psi) greater than the media pressure.
Specifications

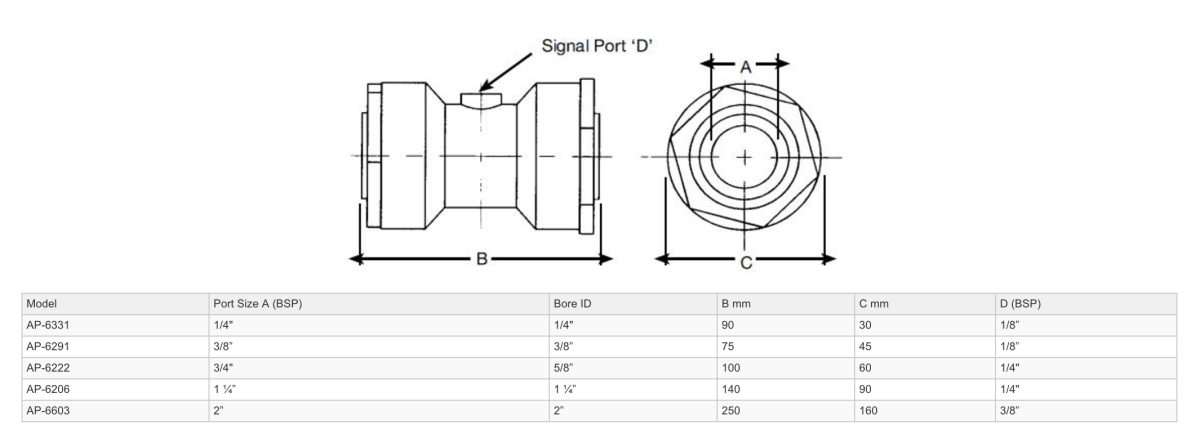

| Model | Port Size A (BSP) | Bore ID | Body Material | Sleeve Material (standard) | Media Max Pressure BAR | Control Max Pressure BAR | Pilot Inlet Size |
|---|---|---|---|---|---|---|---|
| AP-6331 | 1/4" | 1/4" | Nylon | NBR | 3.4 | 5.5 | 1/8” |
| AP-6291 | 3/8” | 3/8” | Nylon | NBR | 4 | 6 | 1/8” |
| AP-6222 | 3/4" | 5/8” | Nylon | NBR | 4 | 6 | 1/4" |
| AP-6206 | 1 ¼” | 1 ¼” | Nylon | NBR | 4 | 6 | 1/4" |
| AP-6603 | 2” | 2” | Polyprop | NBR | 3.4 | 4.7 | 3/8” |
