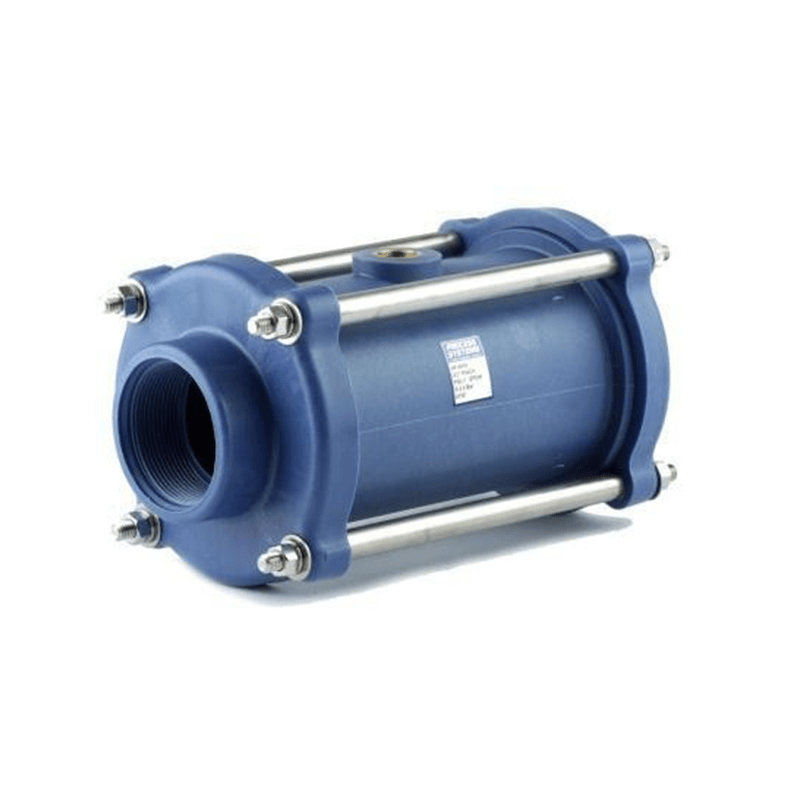

GO Pinch Valve PVC Body 1/4" to 2" AP Range
SKU: AP-6331
$132
GO Pinch Valve PVC Body 1/4" to 2" AP Range

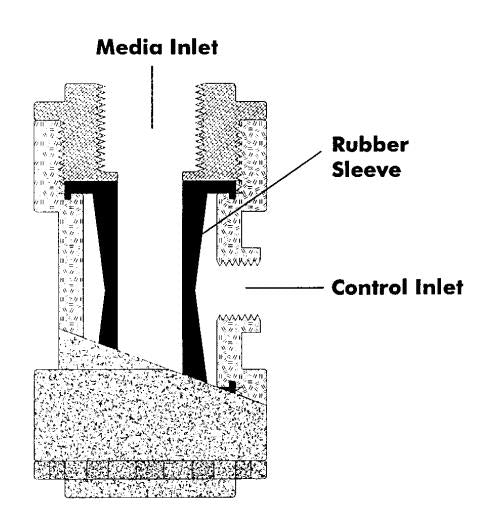

Air or liquid pressure at the control inlet collapses the internal rubber sleeve to provide immediate and positive shut off. The rubber sleeve closes completely even on large particles, abrasive and corrosive materials. When open it allows full, unobstructed flow with little turbulence. The sleeves can be easily replaced when they wear out. To fully close the sleeve the valve requires a signal pressure 1.3 BAR (20 psi) greater than the media pressure.
Great for chemical dosing, slurry, abrasive and dry materials. For other sleeve materials please contact us.
- Size 1/4" to 2" BSP
- Body Nylon
- Sleeve NBR
- Media Pressure Range 0 to 4 BAR
- Pilot Pressure Range 1.5 BAR greater than media
- Factory Accredited CE, ISO 9001
| Model | Port Size A (BSP) | Bore ID | Body Material | Sleeve Material (standard) | Media Max Pressure BAR | Control Max Pressure BAR | Pilot Inlet Size |
|---|---|---|---|---|---|---|---|
| AP-6331 | 1/4" | 1/4" | Nylon | NBR | 3.4 | 5.5 | 1/8” |
| AP-6291 | 3/8” | 3/8” | Nylon | NBR | 4 | 6 | 1/8” |
| AP-6222 | 3/4" | 5/8” | Nylon | NBR | 4 | 6 | 1/4" |
| AP-6206 | 1 ¼” | 1 ¼” | Nylon | NBR | 4 | 6 | 1/4" |
| AP-6603 | 2” | 2” | Polyprop | NBR | 3.4 | 4.7 | 3/8” |
