Built for the work it does.

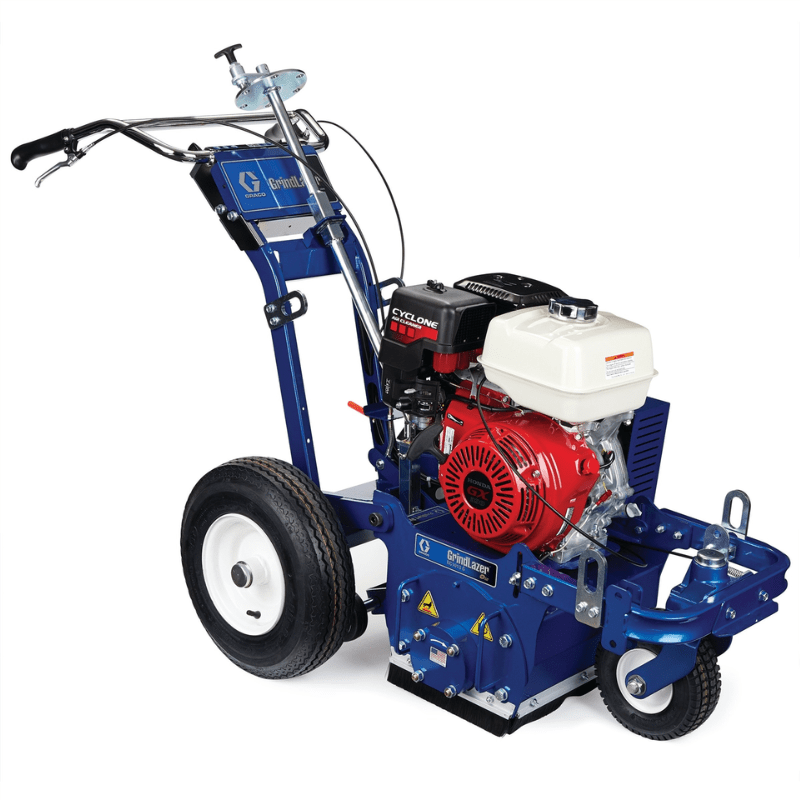

The GrindLazer HP DC1013 G is the contractor choice for all-around scarifying jobs, including parking lot lines, intersection markings, construction zones and sidewalk smoothing. The optional LineDriver System delivers unmatched productivity to get more work done without the fatigue from walking.
Applications: Traffic Paint Removal, Thermoplastic Removal, Smoothing Uneven Surfaces, Epoxy Removal
Bundled Drum Cutter Options
Wire Brush
Ideal for removing curing compounds and cleaning surfaces without damaging the substrate.
Steel Star
Provide deeper penetration of substrate.
Steel Beam
Ideal for gentle removal.
Carbide Flail
Ideal for removing paint and epoxy markings, surface leveling, and removing trip hazards.
Carbide Flat
These versatile cutters use a flat carbide pin to strip, mill, and clean concrete and asphalt surfaces.
Carbide-Tipped Miller
Millers scrape the surface to remove markings, making them a suitable choice for removing paint, epoxy, tape, and thermoplastic.
Full Carbide Miller
Similar to carbide-tipped millers, but cast entirely from carbide for a longer service life.
Carbide Pick
Ideal for applications requiring aggressive removal of thick coatings or material.
See Parts & Accessories tab for the complete list of compatible drum cutters.
Features
Features
Dial Down Depth Control System
- Easy Cutter Depth Control
- Easy to “dial down” for precise cutting depth control with multiple positions
Insta Cut Technology
- Ultimate Removal or Inlay Flexibility
- Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
- Allows deck to “float” when on uneven surfaces No-tool system
Vibration Reduction Technology
- All-Day Comfort
- Up to 4x less vibration than the competition
- Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
- Comfort-grip handlebars for precise steering
Durable 13 HP Honda Power With Cyclone Filter
- Contractor-Preferred Power
- Cyclone filter protects the engine from harmful airborne dust
Extreme-Duty ProStart System
- Safer Operation
- Easy cutter start/stop with centrifugal Easy cold weather starting
- Provides longer belt life and eliminates broken recoils
Tri Belt Drive System
- Maximum Road Handling
- 3-cog belt design optimizes power transfer and eliminates costly downtime
Fat Track Front Swivel Wheel
- Fast, Easy Turning
- Proven front caster wheel system makes turning fast and easy
- Maneuver curves better No need to “muscle it” while moving
Easy Glide Wheel Mount System
- Safer, Easier To Maneuver
- Front-mounted caster along with dual rear pneumatic air-filled tires
- Pneumatic air-filled tires help eliminate vibration
Dust Removal
- Vacuum port for optional LazerVac vacuum system
Line Driver Compatible
- Double Your Productivity
Specifications
| Cut Direction | Forward |
|---|---|
| Engine Brand | Honda |
| Engine Model | GX390 |
| LineDriver Required | Optional |
| Maximum Cut Width (cm) | 25 |
| Maximum Cut Width (in) | 10 |
| Maximum Cut Width (mm) | 254 |
| Type | Concrete Scarifier |
| Engine Size (HP) | 13 |
| Product Series | High Production |
| Cutter Type | Drum |
| Cutter Drum Diameter (in) | 5 |
| Maximum Cut Rate (ft2/hr) | 800 |
| Maximum Cut Rate w/ LineDriver (ft2/hr) | 1700 |
| Vacuum Port | Yes |
| Water Connection | Optional |
| Engine Start Type | ProStart |
| Air Filter Type | Cyclone |
| depth_adjustment | Manual |
| Model | GrindLazer |
| Series | High Production Series |
