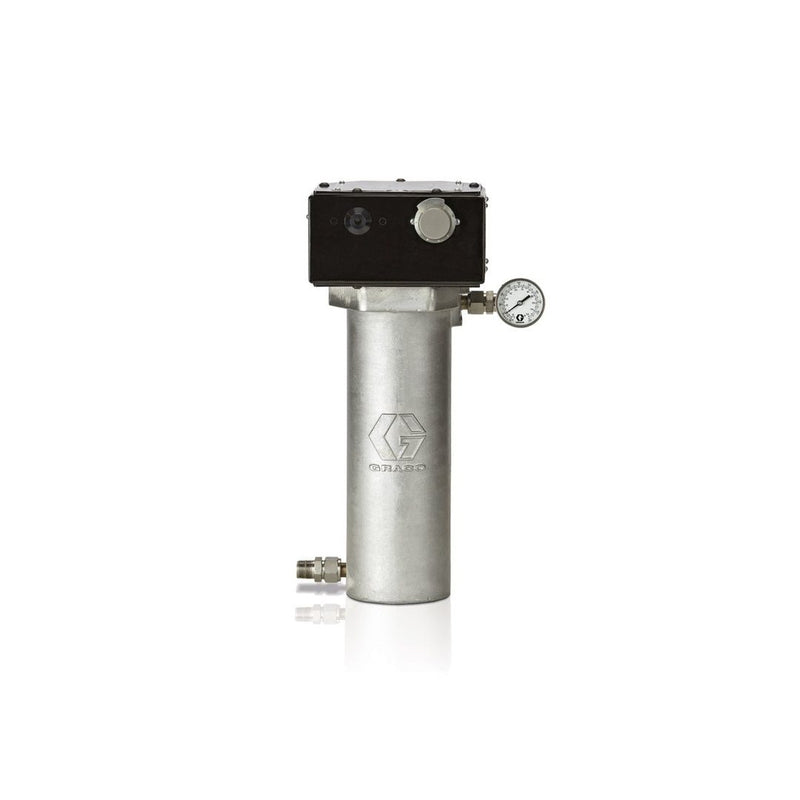

GRACO Viscon Fluid Heater Range

SKU: 245869

$2,964

GRACO Viscon Fluid Heater Range

  • High performance fluid heaters
  • Provides excellent temperature conditioning for high solids coatings and high viscosity materials
  • Graco's Viscon heaters maintain optimal temperatures to provide consistent control of fluid viscosity.
  • With a wide temperature operating range, Viscon heaters are excellent for any coating, sealant, adhesive or lubricant you need to pump.

Features

Viscon HP High Output Fluid Heaters

  • Offers high pressure (7250 psi/500 bar) for use with most pumps
  • Higher pressure for use with most pumps
  • Excellent for high solids coatings, adhesives or resins
  • 7/16 in (11 mm) diameter fluid passages
  • Stainless steel design
  • Available in standard or explosive atmosphere versions
  • 7250 psi (500 bar, 50 MPa)
  • Temperature operating range: 84 to 219°F (29 to 104°C)

    Viscon HF Fluid Heaters for Explosive Atmospheres

    • Developed to handle the highest viscosity coatings such as 100% solids epoxies coatings and epoxy fireproofing materials
    • The patent-pending design has a triple-path spiral core that can be easily disassembled for cleaning.
    • Increased flow capacity: The Viscon HF has over three (3) times more flow capacity compared to the standard Viscon HP heaters.
    • Increased heat capacity: The Viscon HF heaters have 35% more wattage; 5400 watts compared to 4000W for the standard Viscon HP heaters.
    • Available in manual thermostat or externally controlled versions.
    • Cleanable and replaceable fluid core – repair instead of replace.
    • 7250 psi (500 bar, 50 MPA) pressure rating – handles the highest pressure rating of Graco protective coating sprayers.
    • Temperature operating range: 84 to 219°F (29 to 104°C)
    • Same mounting configuration as standard Viscon HP heaters – Easy to retrofit onto existing equipment.

        Downloads

         DATA SHEET
         MANUAL

        Specifications

        Graco Viscon HF

        U.S.
        Metric
        The heater can be used in the following environmental conditions: indoor use, 99% maximum relative humidity, pollution degree 2, installation category II, maximum ambient temperature 135° F (57° C).
        Maximum Working Pressure
        7250 psi (50 MPa, 500 bar)
        Voltage / Wattage / Current*
        See Models on page 2.
        Fluid Passage Heat Transfer Area
        210 in.² (1355 cm²)
        Fluid Passage Dimensions (3 parallel paths)
        Height: 0.41 in.
        Width: 0.32 in.
        Length: 3 x 48 in.
        Fluid Passage Equivalent Diameter
        0.72 in. (18.3 mm)
        Thermometer Range
        64 - 250°F (18 - 121°C)
        Wetted Parts
        Stainless Steel, Anodized Aluminum, Electroless Nickel-Plated Steel, PTFE
        Temperature Operating Range
        84 - 219°F (29 - 104°C)
        Weight
        51 lb (23.2 kg)
        RTD (Model 262853 only)
        1000 ohm, class B, 3-wire Connector: M8, 4-pin male
        Main supply fluctuation not to exceed 10%.
