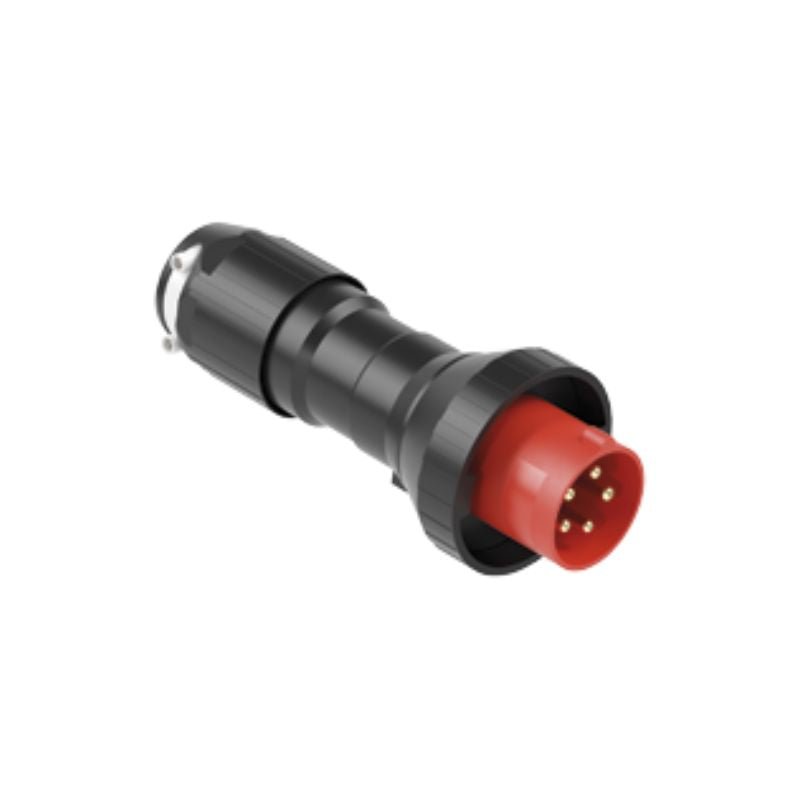

Pepperl+Fuchs PS125-740600 4 Pole in Red Plug 125A

Overview

  • Ex de and Ex t certified
  • Polyamide
  • Full equipment certified
  • Installation in Zone 1, Zone 2, Zone 21 and Zone 22
  • Degree of protection IP66
  • Degree of protection ensured when plugged into socket and secured by means of bayonet catch
  • Low insertion force

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • GO Manual Pepperl Fuchs PS125-740600 Plug 125A
  • GO Data Sheet Pepperl Fuchs PS125-740600 Plug 125A
  • GO Certificates Declaration Pepperl Fuchs PS125-740600 Plug 125A 1
  • GO Certificates Declaration Pepperl Fuchs PS125-740600 Plug 125A 2
  • GO Certificates Declaration Pepperl Fuchs PS125-740600 Plug 125A 3

Specifications

Electrical specifications
Operating voltage 380 ... 415 V
Operating current 125 A max.
Terminal capacity
Main terminals capacity 50 mm2
Main terminals torque 0.8 Nm
Supply frequency 50/60 Hz
Function plug
Usage category AC3: 415 V AC - 125 A
Number of poles 4
Color coding according to IEC 60309 red
Protective contact position according to IEC 60309 6 h
Mechanical specifications
Cable type non-armored cables
Clamping range (D) 20 ... 57 mm
Degree of protection IP66
Material
Housing Polyamide (PA)
Finish inherent color black
Mass 1.25 kg
Dimensions
Diameter (D) 121 mm
Total length (L) 298 mm
