PEPPERL+FUCHS PS16-730600 Plug 3 Pole in Blue 16A
SKU: PF-70125596PEPPERL+FUCHS PS16-730600 Plug 3 Pole in Blue 16A
Other payment options
PEPPERL+FUCHS PS16-730600 Plug 3 Pole in Blue 16A

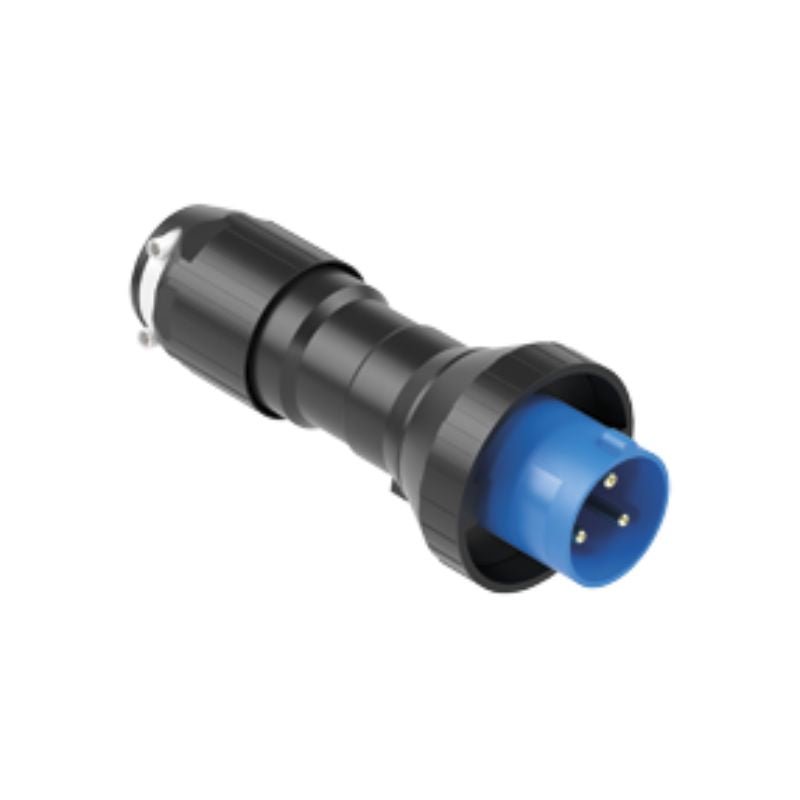

Pepperl+Fuchs PS16-730600 Plug 3 Pole in Blue 16A
Overview
- Ex de and Ex t certified
- Polyamide
- Full equipment certified
- Installation in Zone 1, Zone 2, Zone 21 and Zone 22
- Degree of protection IP66
- Degree of protection ensured when plugged into socket and secured by means of bayonet catch
- Low insertion force
Specifications
| Electrical specifications | ||
|---|---|---|
| Operating voltage | 200 ... 250 V | |
| Operating current | 16 A max. | |
| Terminal capacity | ||
| Main terminals capacity | 2.5 mm2 | |
| Main terminals torque | 0.8 Nm | |
| Supply frequency | 50/60 Hz | |
| Function | plug | |
| Usage category | AC3: 250 V AC - 16 A | |
| Number of poles | 3 | |
| Color coding according to IEC 60309 | blue | |
| Protective contact position according to IEC 60309 | 6 h | |
| Mechanical specifications | ||
| Cable type | non-armored cables | |
| Clamping range (D) | 6.5 ... 18.5 mm | |
| Degree of protection | IP66 | |
| Material | ||
| Housing | Polyamide (PA) | |
| Finish | inherent color black | |
| Mass | 0.35 kg | |
| Dimensions | ||
| Diameter (D) | 73 mm | |
| Total length (L) | 163 mm | |
