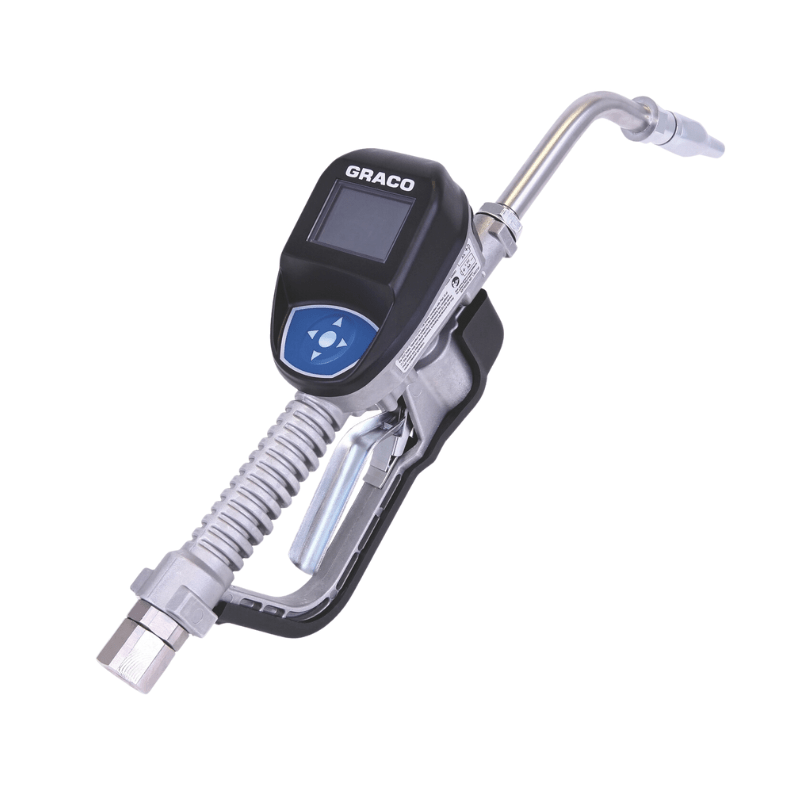

GRACO Pulse Metered Dispense Valve with 3/4" Rigid Nozzle for Oil Applications
SKU: 25M329GRACO Pulse Metered Dispense Valve with 3/4" Rigid Nozzle for Oil Applications
Other payment options
GRACO Pulse Metered Dispense Valve with 3/4" Rigid Nozzle for Oil Applications
Features
Graco Pulse Metered Dispense Valve with 3/4" Rigid Nozzle for Oil Applications
Overview
Graco dispense meters designed for the Pulse® fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display.
Specifications
| Display Type | LCD |
|---|---|
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Includes | Extension, Nozzle, Batteries, Swivel Boot |
| Inlet Size (cm) | 1.905 |
| Inlet Size (in) | 3/4 |
| Inlet Size (mm) | 19.05 |
| Inlet Thread Type | BSPT |
| Maximum Flow Rate (GPM) | 18 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Working Pressure (psi) | 1500 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (bar) | 103.4 |
| Meter Accuracy (%) | ±0.5 |
| Overall Length (cm) | 33 |
| Overall Length (ft) | 1 |
| Overall Length (in) | 13 |
| Overall Length (mm) | 330 |
| Overall Width (cm) | 9.5 |
| Overall Width (in) | 3.75 |
| Overall Width (mm) | 95 |
| Meter Technology | Oval Gear, Engranaje oval |
| Metering Gun Weight (lb) | 5.3 |
| Metering Gun Weight (kg) | 2.4 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Flow Rate (L/min) | 0.9 |
| Wetted Material | Aluminum, Stainless Steel, PBT, Nitrile Rubber, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Warranty | Five Years Structural, 3 Years Electronics, 1 Year Wear Components |
| Unit of Measure | Pint, Quart, Gallon, Liter |
| Trigger Lock | Locking |
| Nozzle Type | High Flow |
| Minimum Operating Temperature (°F) | 4 |
| Minimum Operating Temperature (°C) | -16 |
| Type | Electronic Metered Dispense Valve |
| Maximum Working Pressure (MPa) | 10.3 |
| Overall Length (m) | 0.33 |
| Product Type | Meter |
| Model | Pulse |
- Track and record inventory levels with electronic metering
- Increase technician productivity
- Flexible—one meter can handle all fluids
- Reliable—time-tested Graco engineering
- Protective trigger guard—prevents accidental dispenses
- Large, Intuitive Display—high-contrast display for low and bright light conditions
- Four finger trigger with lock-on feature
- No need to leave bay or use computer to complete dispense
- Long battery life—uses 4 AA easy-to-replace batteries
Features
