Graco dispense meters designed for the Pulse® fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display.

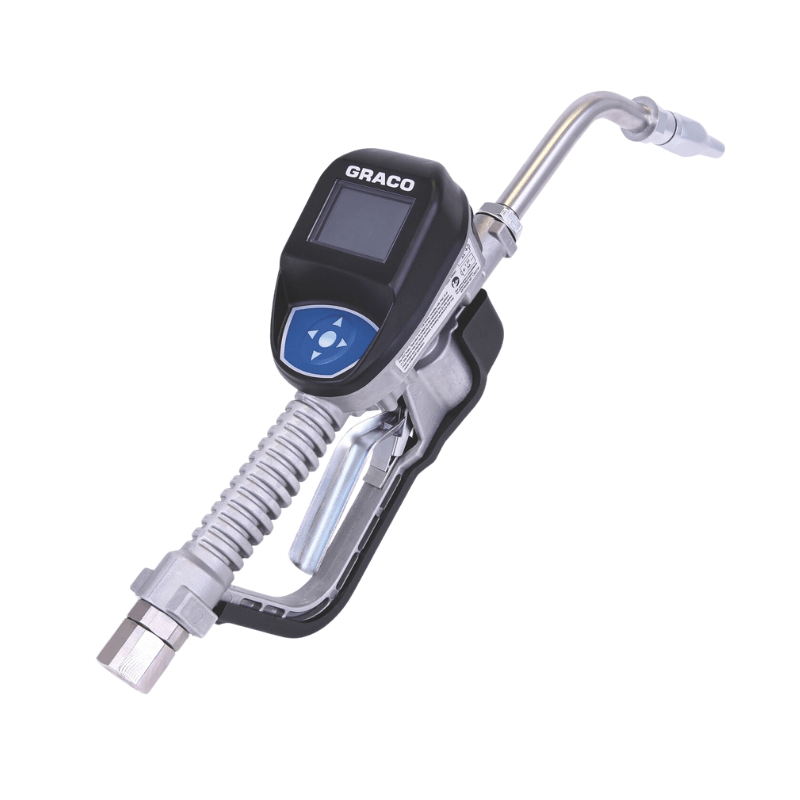

GRACO Pulse Metered Dispense Valve with 3/4" Rigid Nozzle for Oil Applications
SKU 25M329
$2,500.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Features
Features
Specifications
| Display Type | LCD |
|---|---|
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Includes | Extension, Nozzle, Batteries, Swivel Boot |
| Inlet Size (cm) | 1.905 |
| Inlet Size (in) | 3/4 |
| Inlet Size (mm) | 19.05 |
| Inlet Thread Type | BSPT |
| Maximum Flow Rate (GPM) | 18 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Working Pressure (psi) | 1500 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (bar) | 103.4 |
| Meter Accuracy (%) | ±0.5 |
| Overall Length (cm) | 33 |
| Overall Length (ft) | 1 |
| Overall Length (in) | 13 |
| Overall Length (mm) | 330 |
| Overall Width (cm) | 9.5 |
| Overall Width (in) | 3.75 |
| Overall Width (mm) | 95 |
| Meter Technology | Oval Gear, Engranaje oval |
| Metering Gun Weight (lb) | 5.3 |
| Metering Gun Weight (kg) | 2.4 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Flow Rate (L/min) | 0.9 |
| Wetted Material | Aluminum, Stainless Steel, PBT, Nitrile Rubber, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Warranty | Five Years Structural, 3 Years Electronics, 1 Year Wear Components |
| Unit of Measure | Pint, Quart, Gallon, Liter |
| Trigger Lock | Locking |
| Nozzle Type | High Flow |
| Minimum Operating Temperature (°F) | 4 |
| Minimum Operating Temperature (°C) | -16 |
| Type | Electronic Metered Dispense Valve |
| Maximum Working Pressure (MPa) | 10.3 |
| Overall Length (m) | 0.33 |
| Product Type | Meter |
| Model | Pulse |
