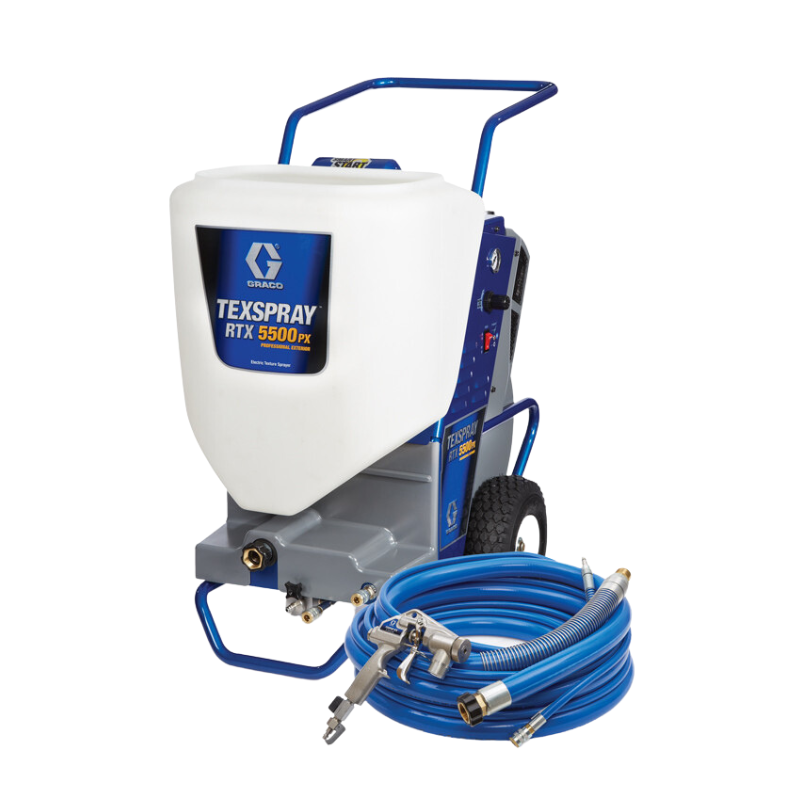

GRACO TexSpray RTX 5500 Texture Sprayer
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The Graco TexSpray RTX 5500PX is configured for the large residential and commercial contractor who needs a compact yet powerful texture sprayer for a wide variety of materials, such as synthetic stuccos, deck coatings and stone paints. Part of the RTX Pro Exterior Series, it runs on 240V power to tackle exterior jobs of all sizes.
A high-output electric motor connects to standard 240V receptacles and works well with long extension cords, while the RotoFlex HD pump delivers 5.5 gpm (21 lpm) to get the job done quickly. The SmartStart system starts and stops the pump and compressor from the trigger with a soft start, a twin-cylinder air compressor supplies air for demanding finishes, and the FlexChange pump section swaps in seconds with no tools.
Features
240V high-output electric motor: connects to standard 240V L6-30 receptacles for trouble-free use with long extension cords.
RotoFlex HD pump: a braided sling supports the pump tube, with 5.5 gpm (21 lpm) output.
SmartStart system: trigger-activated power that starts and stops the pump and compressor, with a soft start for a quality finish.
Twin-cylinder air compressor: a high-output, maintenance-free design that runs at lower RPM for longer life.
External air input: allows external air to be used for demanding finishes.
Heavy-duty material and air hose: both hoses are bonded together for easy handling.
FlexChange pump section: swap the RotoFlex pump in seconds with no tools required.
Adjustable material flow control: quickly adjust material flow with an easy-to-read gauge.
Heavy-duty aluminium trigger gun: an integrated prime selector and oversized passages for total spray control.
WideTex hardened tips and adapter: uniform, repeatable patterns with tips twice as hard as standard WideTex.
Included accessories
Specifications
| COMPATIBLE MATERIAL | Simulated Acoustic, Drywall Mud, Elastomerics, Deck Coating, Cement-Based Material |
|---|---|
| ENGINE SIZE (HP) | 2 |
| FRAME CONFIGURATION | Cart |
| MAXIMUM FLOW RATE (GPM) | 5.5 |
| MAXIMUM FLOW RATE (L/MIN) | 20.8 |
| MAXIMUM WORKING PRESSURE (PSI) | 100 |
| MAXIMUM WORKING PRESSURE (KPA) | 690 |
| MAXIMUM WORKING PRESSURE (MPA) | 0.7 |
| OVERALL WIDTH (MM) | 580 |
| MODEL | TexSpray RTX |
| MAXIMUM WORKING PRESSURE (BAR) | 6.9 |
| OVERALL HEIGHT (CM) | 100 |
| OVERALL HEIGHT (IN) | 39.5 |
| WEIGHT (KG) | 78.9 |
| WEIGHT (LB) | 174 |
| OVERALL HEIGHT (MM) | 1000 |
| OVERALL LENGTH (CM) | 86 |
| OVERALL WIDTH (IN) | 22.75 |
| OVERALL LENGTH (IN) | 33.75 |
| SERIES | 5500PX |
| OVERALL LENGTH (MM) | 860 |
| OVERALL WIDTH (CM) | 58 |
| TYPE | Air-Powered Sprayer |
| WETTED MATERIAL | Brass, Aluminium, Plastic, Stainless Steel, Plated Carbon Steel, Elastomer |
| HOPPER CAPACITY (GAL) | 15 |
| APPLICATION | Residential and Commercial Exteriors |
| MAXIMUM OPERATING TEMPERATURE (°C) | 46 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 115 |
| SOUND PRESSURE LEVEL (DB(A)) | 81.8 |
| SOUND POWER LEVEL (DB(A)) | 90.9 |
| MAXIMUM AIR PRESSURE (BAR) | 3.5 |
| MAXIMUM AIR PRESSURE (KPA) | 350 |
| MAXIMUM AIR PRESSURE (PSI) | 50 |
| MINIMUM OPERATING TEMPERATURE (°C) | 4 |
| MINIMUM OPERATING TEMPERATURE (°F) | 40 |
| MAXIMUM STORAGE TEMPERATURE (°C) | 71 |
| MAXIMUM STORAGE TEMPERATURE (°F) | 160 |
| MINIMUM STORAGE TEMPERATURE (°C) | -1.6 |
| MINIMUM STORAGE TEMPERATURE (°F) | -35 |
| HOPPER CAPACITY (L) | 57 |
| PRODUCT SERIES | ProExterior |
