GRACO Fast-Ball 1:1 Oil Pumps
Features

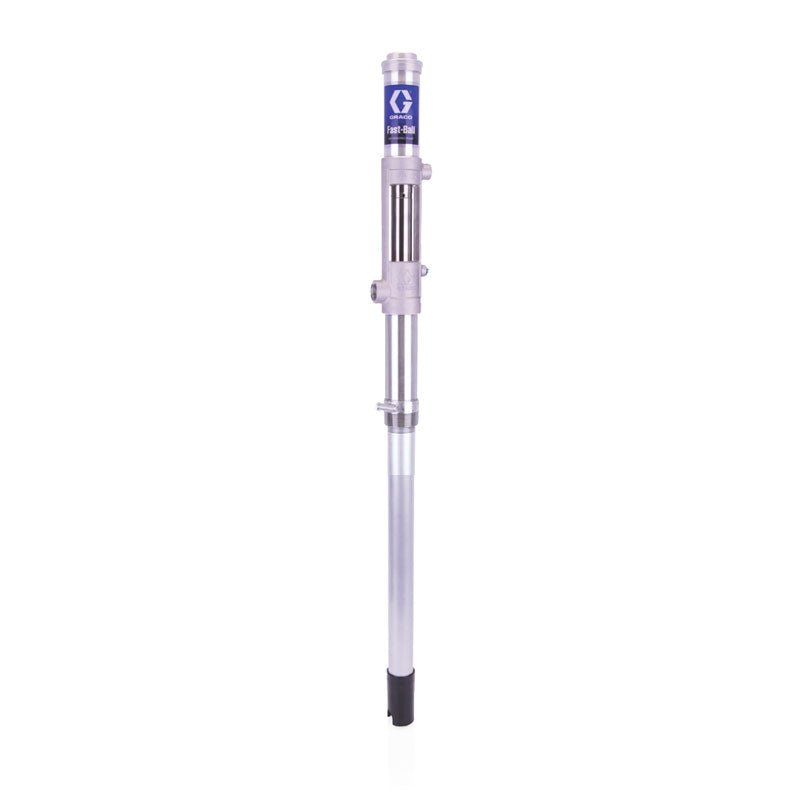

Graco Fast-Ball 1:1 Oil Pumps
Overview
The Graco Fast-Ball 1:1 Oil Pump Range, from GO Industrial, is ideal for the transfer of oils or automatic transmission fluids (ATF). The Fast-Ball features an in-line design with fewer parts for less pump wear.
This air-operated piston pump is used for low-volume transfer of petroleum-based lubricants and provides a continuous duty flow rate of up to 5 gpm (19 lpm).
Ideal for low-volume transfer of petroleum and synthetic-based oils.
Specifications
| Type | Pneumatic Piston Pump |
|---|---|
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Air Motor Effective Diameter (in) | 1.4 |
| Application | Industrial |
| Compatible Material | Oil, Gear Lube, ATF |
| Cycles Per Gallon | 10 |
| Fluid Inlet Size (cm) | 3.81 |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 1.905 |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Maximum Air Inlet Pressure (bar) | 12.41 |
| Maximum Air Inlet Pressure (kPa) | 1241 |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (CPM) | 100 |
| Maximum Working Pressure (bar) | 12.4 |
| Maximum Working Pressure (kPa) | 1240 |
| Maximum Working Pressure (psi) | 180 |
| Power Type | Pneumatic |
| Pump Ratio | 1:1 |
| Sound Power Level (dB(A)) | 83.5 |
| Sound Pressure Level (dB(A)) | 74.9 |
| Weight (lb) | 8 |
| Wetted Material | Carbon Steel, Aluminium, Urethane, UHMWPE |
| Weight (kg) | 0.3632 |
| Maximum Working Pressure (MPa) | 1.2 |
- In-line design with fewer parts for less pump wear
- Double-acting pump provides reliable fluid flow
- Differential air motor ensures smooth pumping
Features
