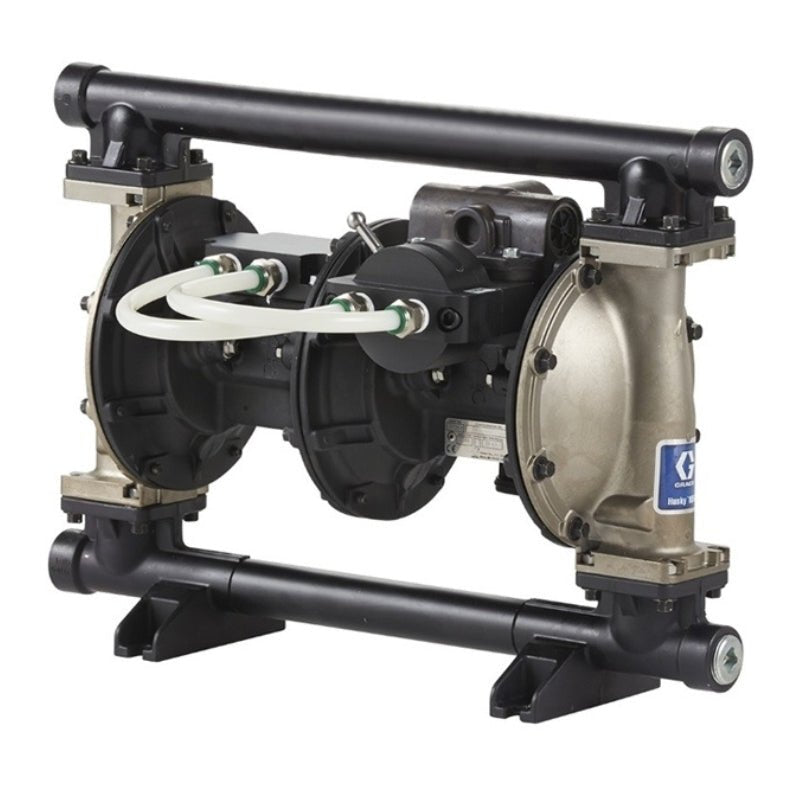

GRACO Husky 1050HP High Pressure Air-Operated Diaphragm Pumps
SKU: 24W765GRACO Husky 1050HP High Pressure Air-Operated Diaphragm Pumps
Other payment options
GRACO Husky 1050HP High Pressure Air-Operated Diaphragm Pumps
Features
-
Benefits of the Husky 1050HP Double Diaphragm Pump
- Increased fluid pressure without sacrificing flow
- Low-high pressure mode valve lets you operate the pump as a standard AODD or a high pressure AODD
- Reduce air consumption up to 50% with the low pressure mode
- Same repair parts as the Husky 1050 diaphragm pump
-
External Pilots
- Ease of maintenance
- Reduced down-time (quick change time)
- Spring loaded for faster change over
-
Modular Air Valve
- Ease of maintenance
- Stall and lube free
-
Fluid Manifold
- Stainless Steel or Aluminum
-
Additional Diaphragm
- For high pressure operation
-
Low/High Pressure Operation Valve
- Selectable operating setting
- Reduces air consumption
- Only use high pressure when required
-
Wetted Components
- Utilizes same parts as Husky 1050 which reduces repair part inventory
Graco Husky 1050HP High Pressure Air-Operated Diaphragm Pumps
Overview
The Husky 1050HP air-operated diaphragm pump is the first pump on the market that allows users to choose between low pressure and high pressure operating modes with Graco’s low-high pressure mode valve. High pressure operation isn’t always required, so switch to the low pressure mode to reduce air consumption up to 50%. These features combined with the quality and reliability of our standard Husky diaphragm pump design make this one of the most unique high pressure diaphragm pumps on the market.
Specifications
| TYPE | Pneumatic Diaphragm Pump |
| AIR EXHAUST PORT SIZE (IN) | 3/4 |
| AIR EXHAUST PORT THREAD GENDER | Female |
| AIR EXHAUST PORT THREAD TYPE | NPT |
| AIR INLET SIZE (IN) | 3/4 |
| AIR INLET THREAD GENDER | Female |
| AIR INLET THREAD TYPE | NPT |
| APPLICATION | Industrial |
| BALL MATERIAL | Geolast |
| CENTER SECTION MATERIAL | Aluminum |
| COMPATIBLE MATERIAL | Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Polymer, Fibers, Alkyds, Resin, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Windshield Washer Fluid, Diesel Exhaust Fluid, Water, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Automotive Undercoating |
| DIAPHRAGM MATERIAL | Buna-N |
| FLUID INLET SIZE (CM) | 2.54 |
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4 |
| FLUID INLET THREAD GENDER | Female [24W764] |
| FLUID INLET THREAD TYPE | BSPT [24W765] NPT [24W764] |
| FLUID OUTLET SIZE (CM) | 2.54 |
| FLUID OUTLET SIZE (IN) | 1 |
| FLUID OUTLET SIZE (MM) | 25.4 |
| FLUID OUTLET THREAD GENDER | NPT [24W764] |
| FLUID OUTLET THREAD TYPE | BSPT [24W765] NPT [24W764] |
| FLUID SECTION MATERIAL | Aluminum |
| MANIFOLD CONFIGURATION | End Port |
| MANIFOLD O-RING MATERIAL | PTFE |
| MATERIAL | Aluminum |
| MAXIMUM AIR CONSUMPTION (SCFM) | 95 |
| MAXIMUM AIR PRESSURE (BAR) | 8.62 |
| MAXIMUM AIR PRESSURE (KPA) | 862 |
| MAXIMUM AIR PRESSURE (PSI) | 125 |
| MAXIMUM CYCLE RATE (CPM) | 140 |
| MAXIMUM FLOW RATE (GPM) | 50 |
| MAXIMUM FLOW RATE (L/MIN) | 189 |
| MAXIMUM FLUID PRESSURE (BAR) | 17.2 |
| MAXIMUM FLUID PRESSURE (KPA) | 1720 |
| MAXIMUM FLUID PRESSURE (PSI) | 250 |
| MAXIMUM SOLID SIZE (CM) | 0.3175 |
| MAXIMUM SOLID SIZE (IN) | 0.125 |
| MAXIMUM SOLID SIZE (MM) | 3.175 |
| MODEL | Husky |
| POWER SOURCE | Air |
| PUMP RATIO | 2:1 |
| SEAT MATERIAL | Geolast |
| SERIES | 1050HP |
| STANDARDS MET | ATEX, CE |
| MAXIMUM FLUID PRESSURE (MPA) | 1.72 |
| MAXIMUM AIR PRESSURE (MPA) | 0.862 |
| CONNECTION TYPE | Threaded |
| DIAPHRAGM_COMPATIBLE_MATERIAL | Buna |
-
Benefits of the Husky 1050HP Double Diaphragm Pump
- Increased fluid pressure without sacrificing flow
- Low-high pressure mode valve lets you operate the pump as a standard AODD or a high pressure AODD
- Reduce air consumption up to 50% with the low pressure mode
- Same repair parts as the Husky 1050 diaphragm pump
-
External Pilots
- Ease of maintenance
- Reduced down-time (quick change time)
- Spring loaded for faster change over
-
Modular Air Valve
- Ease of maintenance
- Stall and lube free
-
Fluid Manifold
- Stainless Steel or Aluminum
-
Additional Diaphragm
- For high pressure operation
-
Low/High Pressure Operation Valve
- Selectable operating setting
- Reduces air consumption
- Only use high pressure when required
-
Wetted Components
- Utilizes same parts as Husky 1050 which reduces repair part inventory
Features
