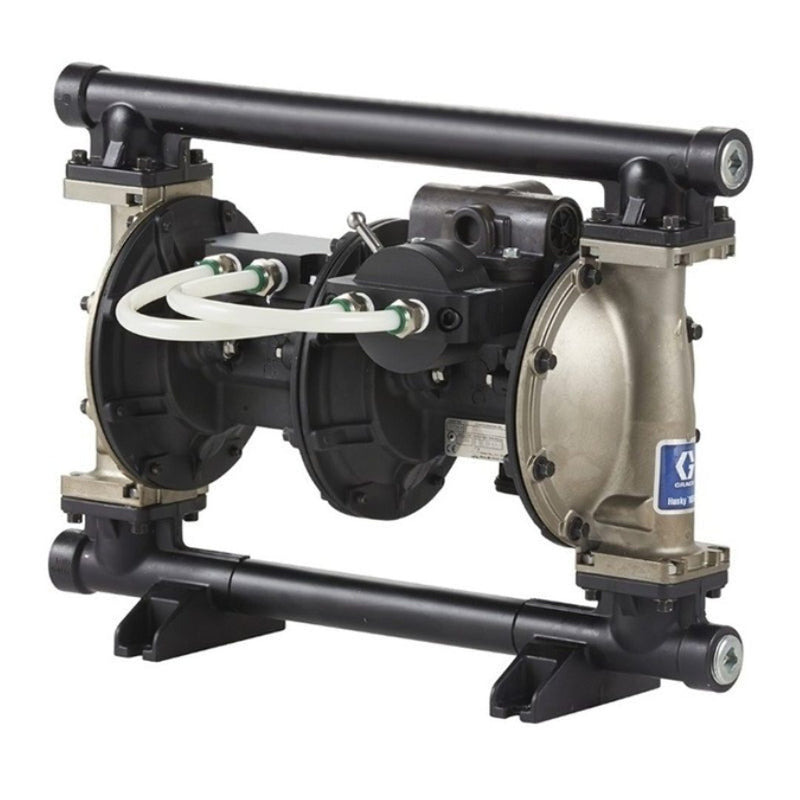

GRACO Husky 1050HP High Pressure Air - Operated Diaphragm Pumps - GO Industrial - 24W765
  • GRACO Husky 1050HP High Pressure Air - Operated Diaphragm Pumps - GO Industrial - 24W765
1 1

GRACO Husky 1050HP High Pressure Air-Operated Diaphragm Pumps

SKU: 24W765

GRACO Husky 1050HP High Pressure Air-Operated Diaphragm Pumps

$8,976.00 AUD
$8,976.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Models

Other payment options

View full details
GRACO Husky 1050HP High Pressure Air - Operated Diaphragm Pumps - GO Industrial - 24W765

GRACO Husky 1050HP High Pressure Air-Operated Diaphragm Pumps

From $8,723.00 AUD
From $8,723.00 AUD
Save $0
Sold out

Details

Applicable for:

Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Polymer, Fibers, Alkyds, Resin, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Windshield Washer Fluid, Diesel Exhaust Fluid, Water, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Automotive Undercoating

Model List

  • 24W765: Husky 1050HP 1 in. (25.4 mm) BSPT AL Pump, AL Center Section, GE Seats, GE Balls & BN Diaphragm
  • 24W764: Husky 1050HP 1 in. (25.4 mm) NPT AL Pump, AL Center Section, GE Seats, GE Balls & BN Diaphragm

Features

  • Benefits of the Husky 1050HP Double Diaphragm Pump

    • Increased fluid pressure without sacrificing flow
    • Low-high pressure mode valve lets you operate the pump as a standard AODD or a high pressure AODD
    • Reduce air consumption up to 50% with the low pressure mode
    • Same repair parts as the Husky 1050 diaphragm pump

  • External Pilots

    • Ease of maintenance
    • Reduced down-time (quick change time)
    • Spring loaded for faster change over

  • Modular Air Valve

    • Ease of maintenance
    • Stall and lube free

  • Fluid Manifold

    • Stainless Steel or Aluminum

  • Additional Diaphragm

    • For high pressure operation

  • Low/High Pressure Operation Valve

    • Selectable operating setting
    • Reduces air consumption
    • Only use high pressure when required

  • Wetted Components

    • Utilizes same parts as Husky 1050 which reduces repair part inventory

Graco Husky 1050HP High Pressure Air-Operated Diaphragm Pumps

Overview

The Husky 1050HP air-operated diaphragm pump is the first pump on the market that allows users to choose between low pressure and high pressure operating modes with Graco’s low-high pressure mode valve. High pressure operation isn’t always required, so switch to the low pressure mode to reduce air consumption up to 50%. These features combined with the quality and reliability of our standard Husky diaphragm pump design make this one of the most unique high pressure diaphragm pumps on the market.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • Graco Husky 1050HP High Pressure Diaphragm Pump Manual
    • Graco Husky 1050HP High Pressure Diaphragm Pump Parts Brochure 345064EN-B
    • Graco Husky 1050HP High Pressure Diaphragm Pump Parts Manual 334390EN-E
    • GO Data Sheet Graco Husky 1050
    • GO Data Sheet Graco Husky 1050HP High Pressure 300570EN-K

    Specifications

    TYPE Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 3/4
    AIR EXHAUST PORT THREAD GENDER Female
    AIR EXHAUST PORT THREAD TYPE NPT
    AIR INLET SIZE (IN) 3/4
    AIR INLET THREAD GENDER Female
    AIR INLET THREAD TYPE NPT
    APPLICATION Industrial
    BALL MATERIAL Geolast
    CENTER SECTION MATERIAL Aluminum
    COMPATIBLE MATERIAL Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Polymer, Fibers, Alkyds, Resin, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Windshield Washer Fluid, Diesel Exhaust Fluid, Water, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Automotive Undercoating
    DIAPHRAGM MATERIAL Buna-N
    FLUID INLET SIZE (CM) 2.54
    FLUID INLET SIZE (IN) 1
    FLUID INLET SIZE (MM) 25.4
    FLUID INLET THREAD GENDER Female [24W764]
    FLUID INLET THREAD TYPE BSPT [24W765] NPT [24W764]
    FLUID OUTLET SIZE (CM) 2.54
    FLUID OUTLET SIZE (IN) 1
    FLUID OUTLET SIZE (MM) 25.4
    FLUID OUTLET THREAD GENDER NPT [24W764]
    FLUID OUTLET THREAD TYPE BSPT [24W765] NPT [24W764]
    FLUID SECTION MATERIAL Aluminum
    MANIFOLD CONFIGURATION End Port
    MANIFOLD O-RING MATERIAL PTFE
    MATERIAL Aluminum
    MAXIMUM AIR CONSUMPTION (SCFM) 95
    MAXIMUM AIR PRESSURE (BAR) 8.62
    MAXIMUM AIR PRESSURE (KPA) 862
    MAXIMUM AIR PRESSURE (PSI) 125
    MAXIMUM CYCLE RATE (CPM) 140
    MAXIMUM FLOW RATE (GPM) 50
    MAXIMUM FLOW RATE (L/MIN) 189
    MAXIMUM FLUID PRESSURE (BAR) 17.2
    MAXIMUM FLUID PRESSURE (KPA) 1720
    MAXIMUM FLUID PRESSURE (PSI) 250
    MAXIMUM SOLID SIZE (CM) 0.3175
    MAXIMUM SOLID SIZE (IN) 0.125
    MAXIMUM SOLID SIZE (MM) 3.175
    MODEL Husky
    POWER SOURCE Air
    PUMP RATIO 2:1
    SEAT MATERIAL Geolast
    SERIES 1050HP
    STANDARDS MET ATEX, CE
    MAXIMUM FLUID PRESSURE (MPA) 1.72
    MAXIMUM AIR PRESSURE (MPA) 0.862
    CONNECTION TYPE Threaded
    DIAPHRAGM_COMPATIBLE_MATERIAL Buna

      Features

      • Benefits of the Husky 1050HP Double Diaphragm Pump

        • Increased fluid pressure without sacrificing flow
        • Low-high pressure mode valve lets you operate the pump as a standard AODD or a high pressure AODD
        • Reduce air consumption up to 50% with the low pressure mode
        • Same repair parts as the Husky 1050 diaphragm pump

      • External Pilots

        • Ease of maintenance
        • Reduced down-time (quick change time)
        • Spring loaded for faster change over

      • Modular Air Valve

        • Ease of maintenance
        • Stall and lube free

      • Fluid Manifold

        • Stainless Steel or Aluminum

      • Additional Diaphragm

        • For high pressure operation

      • Low/High Pressure Operation Valve

        • Selectable operating setting
        • Reduces air consumption
        • Only use high pressure when required

      • Wetted Components

        • Utilizes same parts as Husky 1050 which reduces repair part inventory
