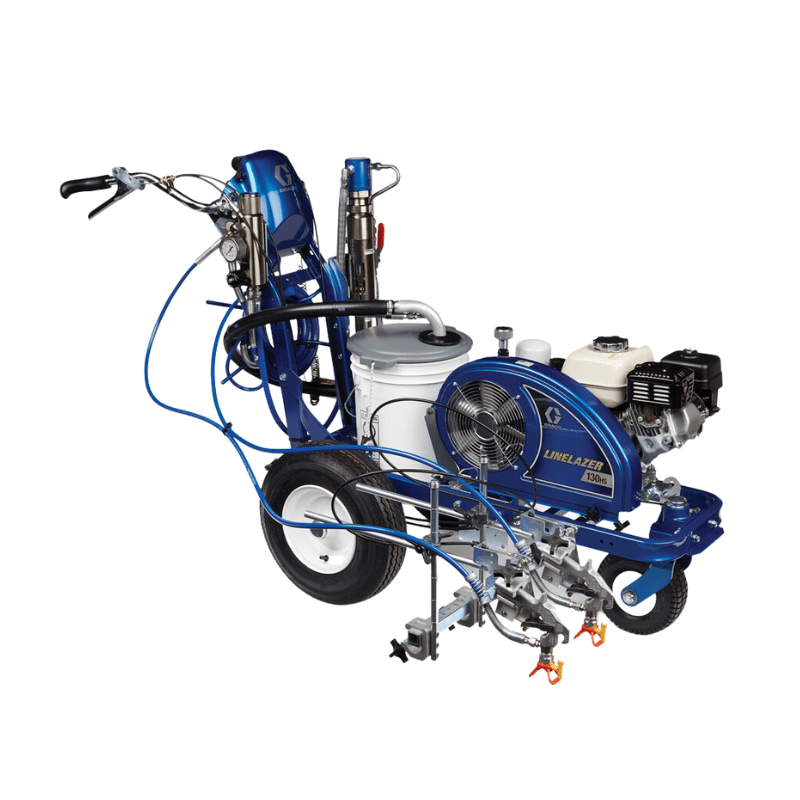

Graco LineLazer 130HS Standard Series Airless Line Marker 2 Manual Guns 17H448

SKU: 17H448

Graco LineLazer 130HS Standard Series Airless Line Marker 2 Manual Guns 17H448

Regular price $19,690.00 AUD
Sale price $19,690.00 AUD Regular price
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

The Basics

The LineLazer 130HS is the preferred hydraulic airless striping unit that consistently delivers everyday striping performance with proven power, day in and day out. The ultimate hydraulic airless striping unit that contractors rely on for their most challenging line marking jobs.

  • Petrol hydraulic performance
  • Preferred hydraulic line marker for everyday jobs
  • Consistently delivers solid performance day in and day out
  • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel system - locking the front wheel straight when striping

Includes:

  • GO Catalogue Graco LineLazer 344385EN-K
  • GO Data Sheet Graco LineLazer 130HS 344385EN-K
  • GO Manual Graco LineLazer 130HS
  • GO Manual Parts Graco LineLazer 130HS
COMPATIBLE SURFACES Pavement, Turf
ENGINE BRAND Honda
ENGINE MODEL GX120
FUEL TANK CAPACITY (GAL) 0.66
FUEL TANK CAPACITY (L) 2.5
GUN ACTIVATION 2 Manual
INCLUDES Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz
MAXIMUM FLOW RATE (GPM) 1.3
MAXIMUM FLOW RATE (L/MIN) 4.9
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 96
MAXIMUM TIP SIZE (CM) 0.0737
MAXIMUM TIP SIZE (IN) 0.029
MAXIMUM TIP SIZE (MM) 0.7366
MAXIMUM WORKING PRESSURE (BAR) 227
MAXIMUM WORKING PRESSURE (KPA) 2270
MAXIMUM WORKING PRESSURE (PSI) 3300
MODEL LineLazer
NUMBER OF COLORS One Color
NUMBER OF GUNS 2
NUMBER OF HOPPERS 1
NUMBER OF PUMPS 1
OVERALL HEIGHT (CM) 113.03
OVERALL HEIGHT (IN) 44.5
OVERALL HEIGHT (MM) 1130.3000
OVERALL LENGTH (CM) 173.36
OVERALL LENGTH (IN) 68.25
OVERALL LENGTH (MM) 1733.55
OVERALL WIDTH (CM) 87
OVERALL WIDTH (IN) 34.25
OVERALL WIDTH (MM) 869.9500
POWER RATING (HP) 4
POWER RATING (KW) 2.98
PUMP TYPE Endurance
SERIES 130HS
COMPATIBLE MATERIAL Road-Marking Paint
WEIGHT (KG) 119
WEIGHT (LB) 263
TYPE Walk-Behind Line Striper
POWER SOURCE Gas Hydraulic
RECOMMENDED ANNUAL USAGE Up to 500 gallons per week
PRODUCT SERIES Standard
ATTACHMENTS None

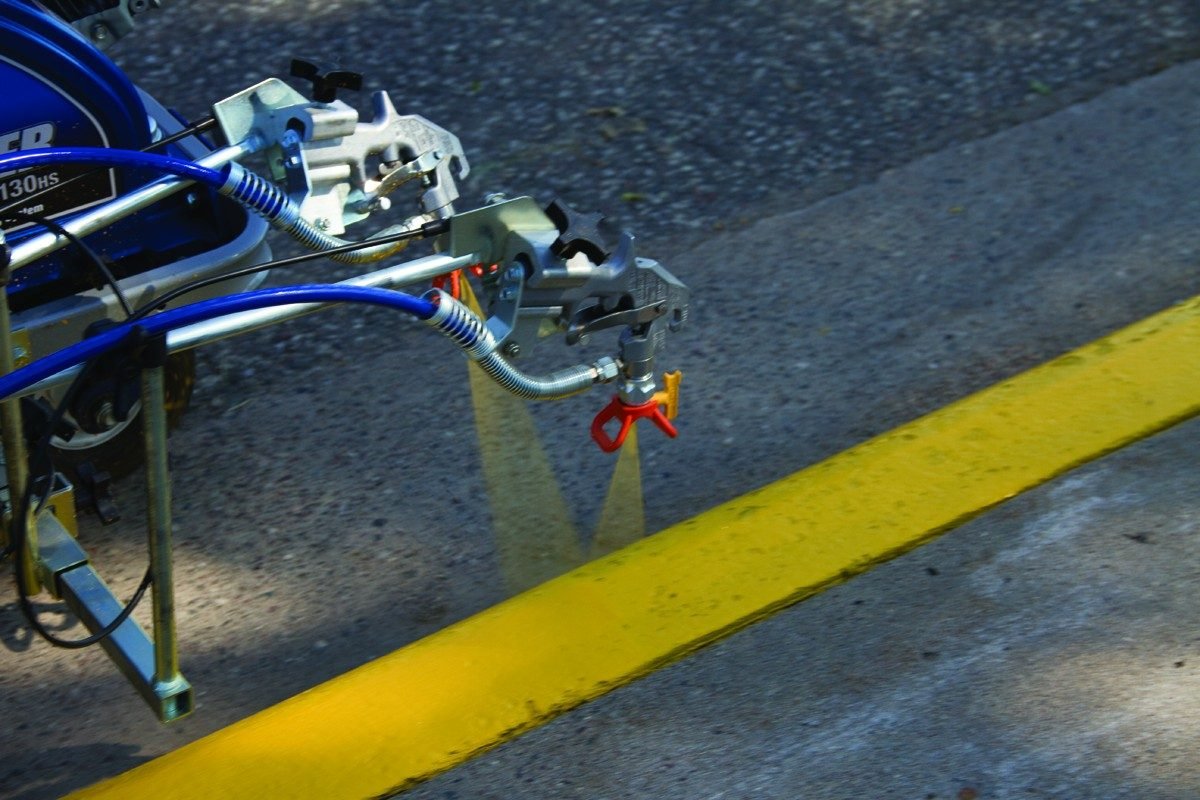

    EasyMark Gun Adjustment System

    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector

    EZ Align Wheel System

    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed

    DualComfort Handlebar System

    • Easy Handlebar Adjustment

    QuikSelect Gun Selector

    • Simple Gun Control
    • Independently control of two guns with one lever — solid/skip

    Honda® GX Engine

    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low

    Endurance Chromex Pump

    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome

    High-Efficiency Hydraulic Motor

    • Uninterrupted Performance
    • No-Stall design

    High-Capacity Cooling System

    • Reduced Downtime
    • Innovative design allows the pump to run cooler and more efficiently
    • Easier and more thorough fluid changes
    • Reservoir cooling fins deflect more heat
    • No special hydraulic fluid needed

    Easy Out Pump Filter

    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs

    Storage Compartment

    • New compartment for tips, guards and miscellaneous items
