The Flex Plus Airless Spray Gun is ideal for striping applications, heavy coatings and joint compounds. Includes 2-Finger trigger and RAC 5 LineLazer SwitchTip and Guard.

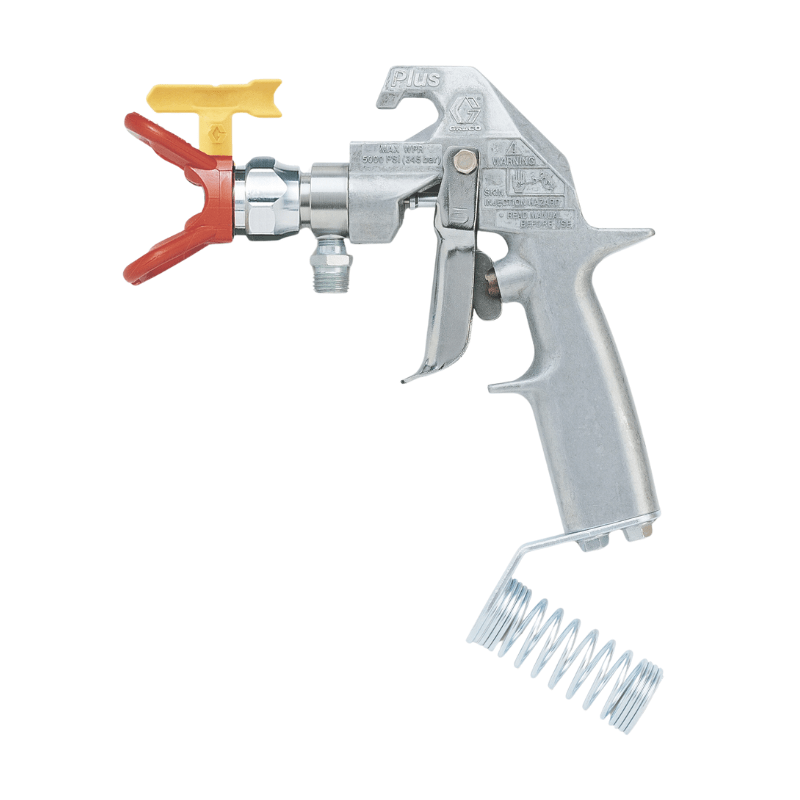

GRACO Flex Plus Linemarking Spray Gun
SKU 248157
$691.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Features
Features
Maximized Flow for Heavier Coatings
- Airless hose bypasses the handle and connects directly to the gun
- Spring guard provides additional hose support
No Adjustment Needle
- Provides quick and easy repairs
Patented Needle Design
- Increases life
Large Fluid Path
- Reduces clogging
Specifications
| AIR INLET SIZE (CM) | 0.635 |
|---|---|
| AIR INLET SIZE (IN) | 1/4 |
| AIR INLET SIZE (MM) | 6.35 |
| AIR INLET THREAD GENDER | Male |
| AIR INLET THREAD TYPE | NPSM |
| BODY MATERIAL | Aluminum |
| COMPATIBLE MATERIAL | Paint, Coating |
| COMPONENT A INLET SIZE (CM) | 0.635 |
| COMPONENT A INLET SIZE (IN) | 1/4 |
| COMPONENT A INLET SIZE (MM) | 6.35 |
| COMPONENT A INLET THREAD TYPE | NPSM |
| COMPONENT TYPE | Single Component |
| FLUID ORIFICE SIZE (CM) | 0.229 |
| FLUID ORIFICE SIZE (IN) | 0.090 |
| FLUID ORIFICE SIZE (MM) | 2.29 |
| FOR USE WITH |
Airless Spray and Line Striping Application LineLazer III 3900/5900 Airless Line Stripers |
| GUN ACTIVATION | Manual |
| GUN TYPE | Airless Gun |
| GUN WEIGHT (G) | 510 |
| GUN WEIGHT (KG) | 0.51 |
| GUN WEIGHT (LB) | 1.125 |
| GUN WEIGHT (OZ) | 18 |
| INCLUDES | 235474 Repair Kit, RAC 5 LineLazer III 319, RAC X Guard |
| MAXIMUM FLUID PRESSURE (BAR) | 345 |
| MAXIMUM FLUID PRESSURE (KPA) | 34500 |
| MAXIMUM FLUID PRESSURE (PSI) | 5000 |
| MAXIMUM FLUID TEMPERATURE (°C) | 50 |
| MAXIMUM FLUID TEMPERATURE (°F) | 120 |
| MODEL | Flex Plus |
| PURGE METHOD | Liquid |
| SERIES | Airless Spray Gun |
| TRIGGER LOCK | Locking |
| TRIGGER TYPE | Two-Finger |
| TYPE | Spray Gun |
| PRODUCT TYPE | Spray Gun |
| SPRAY TYPE | Airless |
| GUN INCLUDED | 1 |
| APPLICATOR TYPE | Manual |
| WETTED PARTS | Stainless Steel, Polyethylene, Polyurethane, Nylon, PTFE |
| SOUND POWER LEVEL (DB(A)) | 87 |
| SOUND PRESSURE LEVEL (DB(A)) | 78 |
| MAXIMUM FLUID PRESSURE (MPA) | 34.5 |
