GRACO LD Hose Reel for Air 6mm id x 11m L
Features

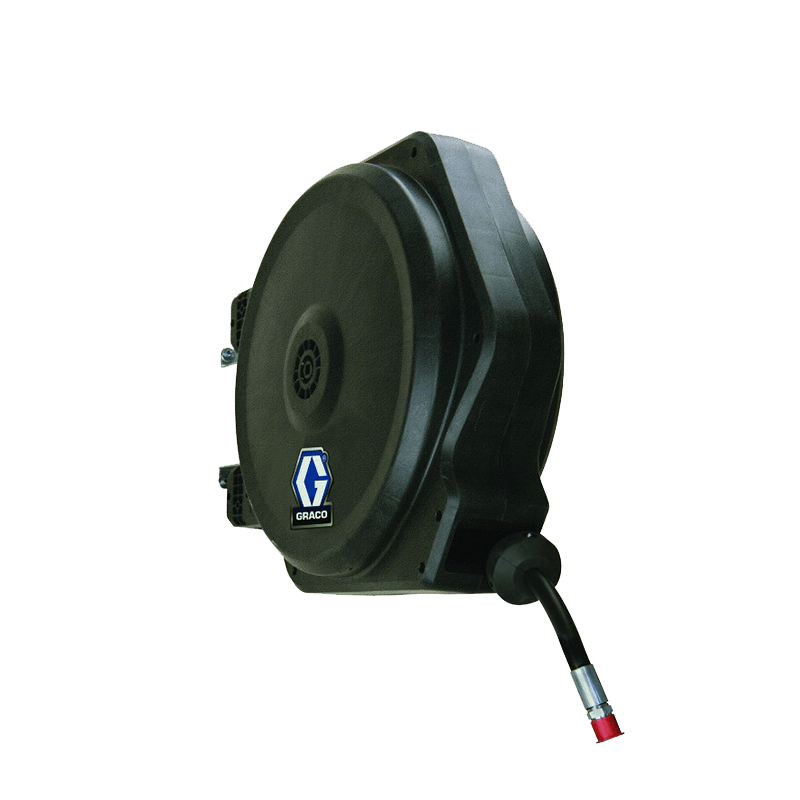

Graco LD Hose Reel for Air 6mm id x 11m L
Overview
- Economical enclosed hose reels get you up and running fast
- Designed for light-duty applications with flexible mounting options for easy, quick Installation.
- Reduce clutter and increase workplace safety with a Graco one-piece hose reel. Designed for light-duty applications in dealerships, service garages, collision repair and industrial manufacturing facilities.
Specifications
| DRY WEIGHT (LB) | 19.8 |
|---|---|
| HOSE INSIDE DIAMETER (IN) | 1/4 |
| HOSE INSIDE DIAMETER (MM) | 6.35 |
| HOSE LENGTH (FT) | 35 |
| HOSE LENGTH (M) | 11 |
| INLET SIZE (IN) | 1/2 |
| INLET SIZE (MM) | 12.7 |
| INLET THREAD TYPE | BSPT |
| MAXIMUM TEMPERATURE (°C) | 60 |
| MAXIMUM TEMPERATURE (°F) | 140 |
| MAXIMUM WORKING PRESSURE (PSI) | 250 |
| MINIMUM TEMPERATURE (°C) | -10 |
| MINIMUM TEMPERATURE (°F) | 14 |
| OUTLET SIZE (IN) | 1/4 |
| OUTLET SIZE (MM) | 6.35 |
| WETTED PARTS | Aluminum, Buna-N, PVC |
| APPLICATION | Air |
| TYPE | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor |
| FRAME TYPE | Enclosed |
| HOSE REEL TYPE | Reel with Hose |
| MODEL | LD |
- Simple to install-mounts in minutes!
- Enclosed reel with a compact enclosure extends hose life
- Full flow swivel maximizes fluid output while minimizing pressure loss
- Adjustable spring makes it easy to retract the hose
- Quality entry-level reel mounts in minutes–gives you years of worry-free performance!
- Ceiling/Wall swivel-mount is standard
- Ceiling/Wall stationary and bench mount options are available
- Pressure - 5,000 psi (345 bar)
- Inlet - 1/2" BSP
- Outlet - 1/4" BSP
