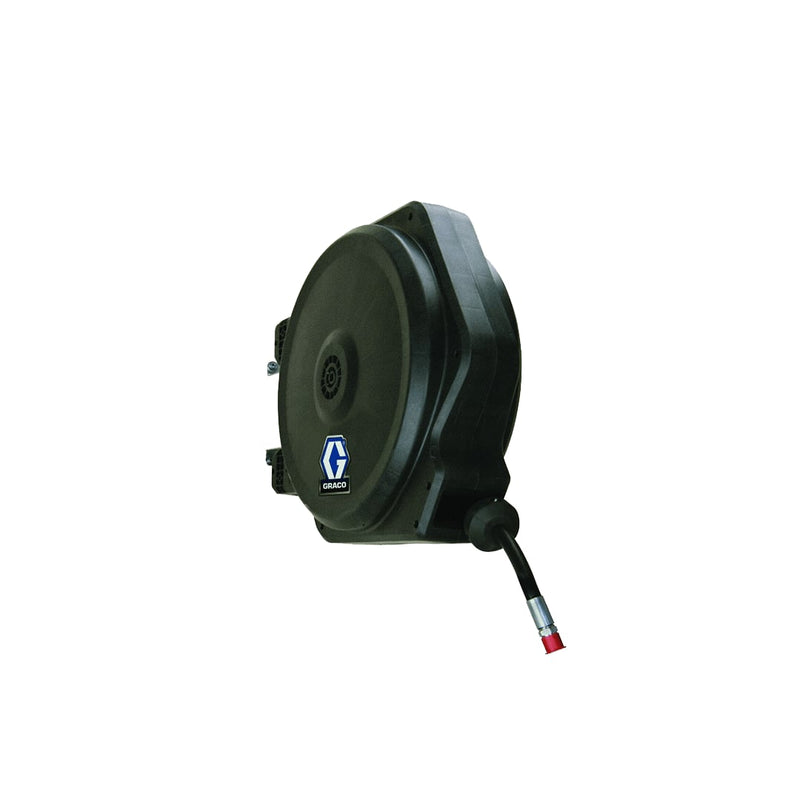

GRACO LD Hose Reel for Air 6mm id x 15m L
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
These economical enclosed hose reels get you up and running fast. Designed for light-duty applications with flexible mounting options for quick installation, a one-piece hose reel reduces clutter and increases workplace safety in dealerships, service garages, collision repair and industrial manufacturing facilities.
The built-in enclosure protects internal components from the elements and extends hose life, while the full flow swivel maximises fluid output and minimises pressure loss. Spring tension can be increased or decreased while the hose is pressurised.
Features
Quick Install: Simple to install and mounts in minutes.
Enclosed Reel: A compact one-piece enclosure protects internal components and extends hose life.
Full Flow Swivel: Maximises fluid output while minimising pressure loss.
Adjustable Spring: Makes it easy to retract the hose, and spring tension can be adjusted while the hose is pressurised.
Mounting Options: Ceiling or wall swivel mount is standard, with stationary and bench-mount options available.
Included accessories
Specifications
| Application | Air |
|---|---|
| Model | LD |
| Type | Spring-Rewind Reel |
| Frame Type | Enclosed |
| Hose Reel Type | Reel with Hose |
| Hose Inside Diameter | 1/4 in / 6.35 mm |
| Hose Length | 50 ft / 15 m |
| Inlet Size | 1/2 in / 12.7 mm |
| Inlet Thread Type | BSPT |
| Outlet Size | 1/4 in / 6.35 mm |
| Maximum Working Pressure | 250 psi |
| Operating Temperature | -10 to 60 degrees C / 14 to 140 degrees F |
| Wetted Parts | Aluminium, Buna-N, PVC |
| Dry Weight | 21 lb |
| Recommended Environment | Indoor |
