GRACO LineLazer 3400 Airless Line Striper
Regular price
$11,187.00 AUD
Sale price
$11,187.00 AUD
Regular price
$12,430.00 AUD
Unit price
per
Save $1,243
Sold out
Features
Updated Frame
- Improved Tracking & Line Quality
- Added stability with newly designed, 3-inch longer frame
- Accepts 15-gallon hopper and EZ Bead System
Rear Mount Hose Wrap
- Easier Stencil Jobs
- Easy on/off functionality
Easy-To-Reach Controls
- Fine-tune the striper without stopping
- Operator controls are located on the handlebars
New Handlebar Design
- Reduced Vibration
- Less operator fatigue with greater comfort and control
Electronic Pressure Control
- Improved Line Quality
- Accurate, tight tolerance system
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
Front Swivel Wheel
- Easier Maneuverability
- Ability to stripe right up to the curb
- Makes easy work of hard-to-do curves
- Years of dependable operation with tapered locking pin design

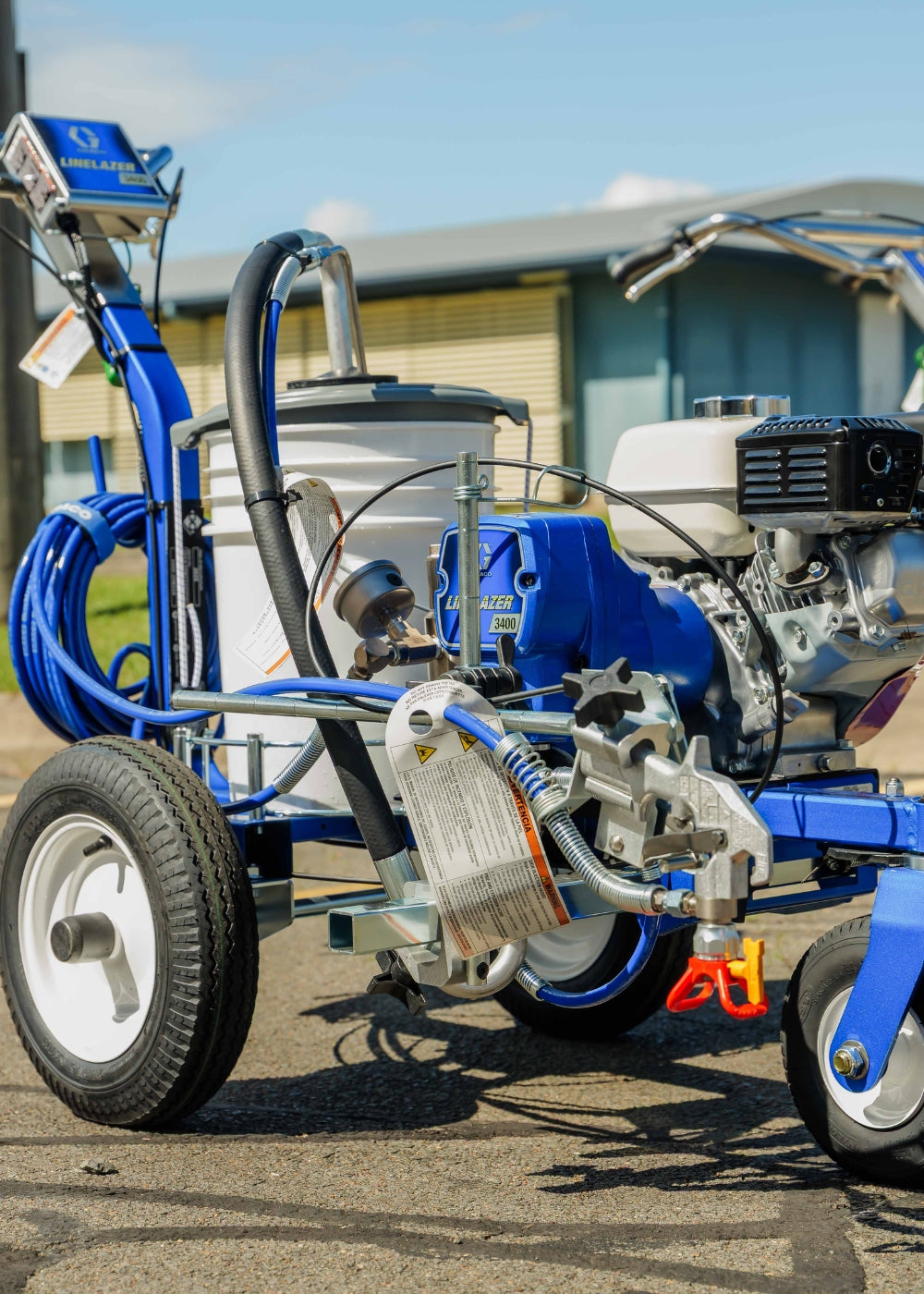

Graco LineLazer 3400 Airless Line Striper
Overview
The LineLazer 3400 is the professional choice for dependable, 1-gun striping for small parking lots, mini malls, seal coating contractors, schools and park and recreation departments.
The Graco LineLazer 3400 is a petrol powered (Honda GX120 Engine) one gun line marking machine and is ideal for restripe work.
The new model has a 75mm longer frame to allow greater stability and straighter lines and you can now add a 57L paint hopper and gravity bead system.

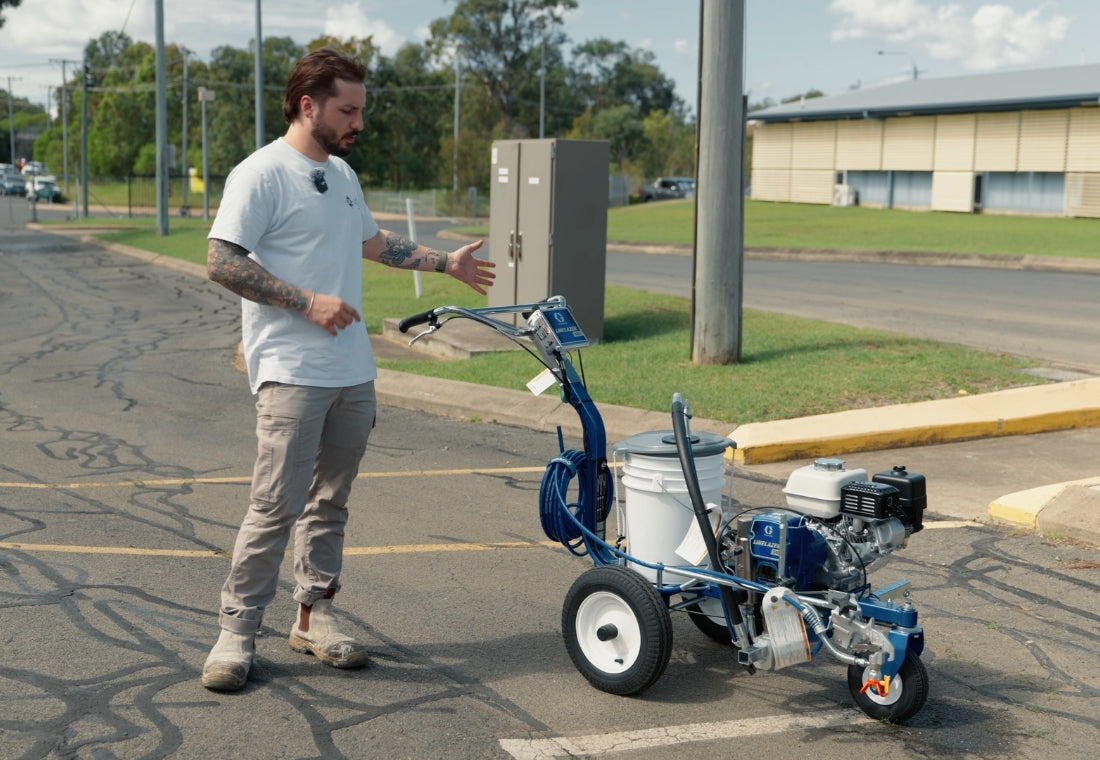

Watch our Graco LineLazer 3400 Features, Setup and How-To Guide:
Specifications
| COMPATIBLE SURFACES | Pavement, Turf |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX120 |
| FUEL TANK CAPACITY (GAL) | 0.66 |
| FUEL TANK CAPACITY (L) | 2.5 |
| GUN ACTIVATION | 1 Manual |
| HOPPER VOLUME CAPACITY (GAL) | 15 |
| HOPPER VOLUME CAPACITY (L) | 56.8 |

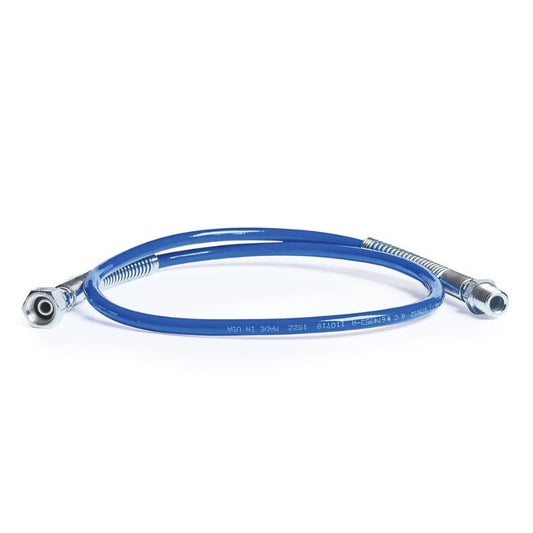

| INCLUDES | Contractor PC Gun, Flex Plus Gun, LineLazer RAC 5 317 Spray Tip, LineLazer RAC 5 319 Spray Tip, RAC 5 Tip Guard, 1/4 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 ml) |
| MAXIMUM FLOW RATE (GPM) | 0.75 |
| MAXIMUM FLOW RATE (L/MIN) | 2.8 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 91 |
| MAXIMUM TIP SIZE (CM) | 0.0686 |
| MAXIMUM TIP SIZE (IN) | 0.027 |
| MAXIMUM TIP SIZE (MM) | 0.6858 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 1 |
| NUMBER OF PUMPS | 1 |
| OVERALL HEIGHT (CM) | 100 |
| OVERALL HEIGHT (IN) | 39.4 |
| OVERALL HEIGHT (MM) | 1000.7600 |
| OVERALL LENGTH (CM) | 168.4 |
| OVERALL LENGTH (IN) | 66.3 |
| OVERALL LENGTH (MM) | 1684.02 |
| OVERALL WIDTH (CM) | 66 |
| OVERALL WIDTH (IN) | 26 |
| OVERALL WIDTH (MM) | 660.4000 |
| POWER RATING (HP) | 4 |
| POWER RATING (KW) | 2.98 |
| POWER RATING (W) | 2980 |
| PUMP TYPE | Endurance |
| SERIES | 3400 |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 73 |
| WEIGHT (LB) | 160 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas |
| RECOMMENDED ANNUAL USAGE | Up to 250 gallons per week |
| PRODUCT SERIES | Standard |
| ATTACHMENTS | None |
- Improved Tracking & Line Quality
- Added stability with newly designed, 3-inch longer frame
- Accepts 15-gallon hopper and EZ Bead System
- Easier Stencil Jobs
- Easy on/off functionality
- Fine-tune the striper without stopping
- Operator controls are located on the handlebars
- Reduced Vibration
- Less operator fatigue with greater comfort and control
- Improved Line Quality
- Accurate, tight tolerance system
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
- Easier Maneuverability
- Ability to stripe right up to the curb
- Makes easy work of hard-to-do curves
- Years of dependable operation with tapered locking pin design
Features
Updated Frame
Rear Mount Hose Wrap
Easy-To-Reach Controls
New Handlebar Design
Electronic Pressure Control
Endurance Chromex Pump
Honda GX Engine
Easy Out Pump Filter
Front Swivel Wheel
Take a closer look
Take a closer look
What is included in the box
Let’s Answer Your Questions
What is the Graco LineLazer 3400 and who is it designed for?
The Graco LineLazer 3400 is a professional airless line striping machine. It's designed for contractors, property maintenance teams, schools, and councils who require a dependable and efficient solution for painting crisp, consistent lines for car parks, roads, sports pitches, and industrial safety zones. Its ease of use makes it a popular choice for both experienced professionals and those newer to line striping.
What are the main advantages of using a Graco LineLazer 3400?
The LineLazer 3400 offers bulletproof reliability, straightforward operation, and robust functionality. It's known for producing sharp, professional-quality lines, ease of manoeuvrability thanks to its front swivel wheel, and user-friendly controls located on the handlebars. It's powered by a reliable Honda GX120 petrol engine, and Graco’s Endurance Piston Pump.
What kind of projects is the Graco LineLazer 3400 suitable for?
It's ideal for small to medium-sized projects such as marking car park bays, laying out bike paths, applying stencils, and striping sports fields. It's a versatile unit that can be a valuable addition to an existing line marking fleet or a great starting point for new line marking operators and contractors.
How easy is the Graco LineLazer 3400 to set up and operate?
The setup is very similar to Graco's airless paint sprayers, involving priming the unit, testing spray patterns, and adjusting pressure. The controls are intuitively designed and located on the handlebars for ease of use during operation. The GO article, "The Anatomy of a Graco LineLazer 3400," provides a comprehensive guide to setup and operation.
What are the key components of the Graco LineLazer 3400?

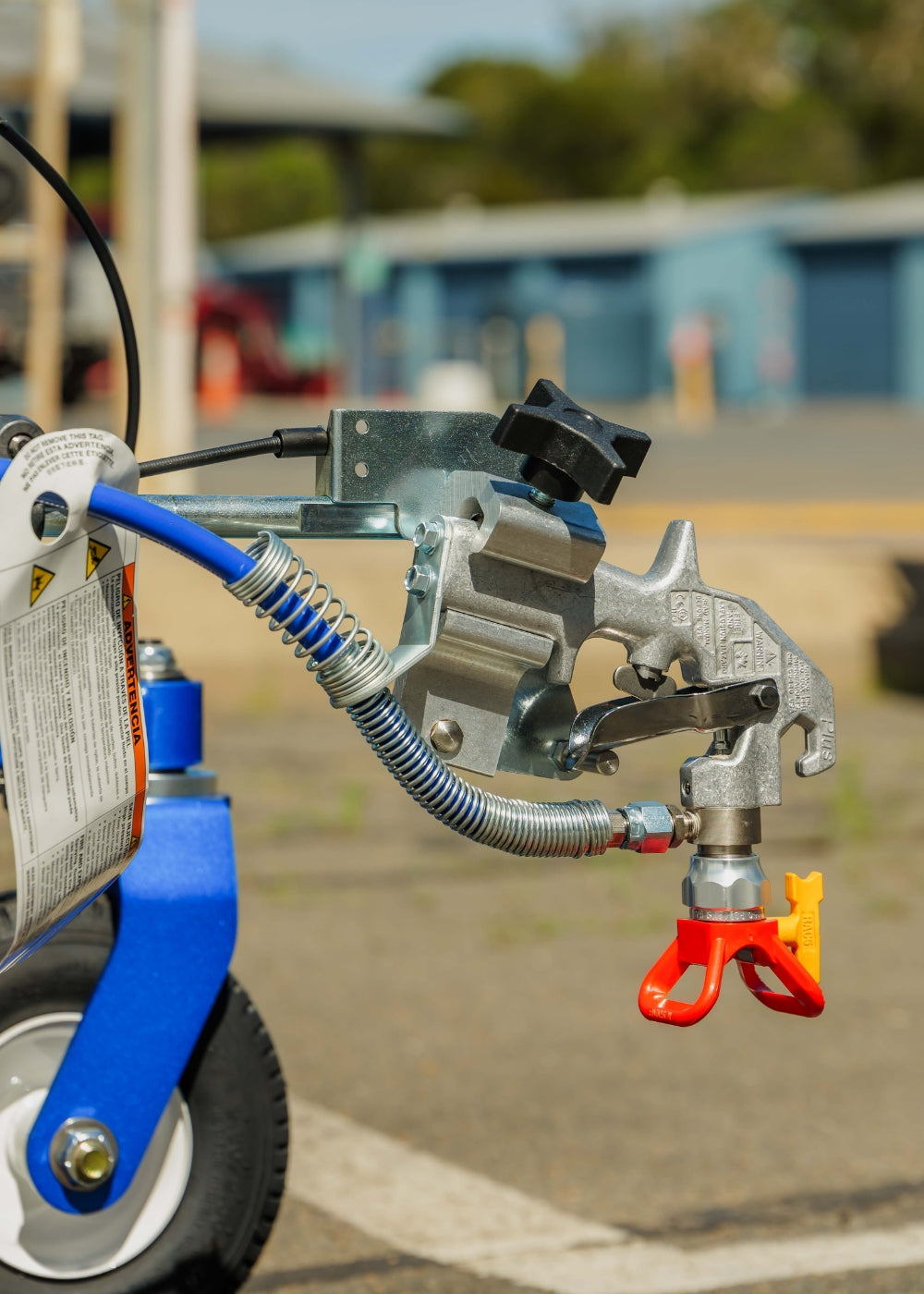

Key components include the Honda GX120 petrol engine, a single manual Graco Flex Plus spray gun, a Graco Endurance Piston Pump, manifold filter, pressure gauge, spray tips (LL319 and Rac 5 Guards, a robust frame with handlebars, and a front swivel wheel for manoeuvrability.

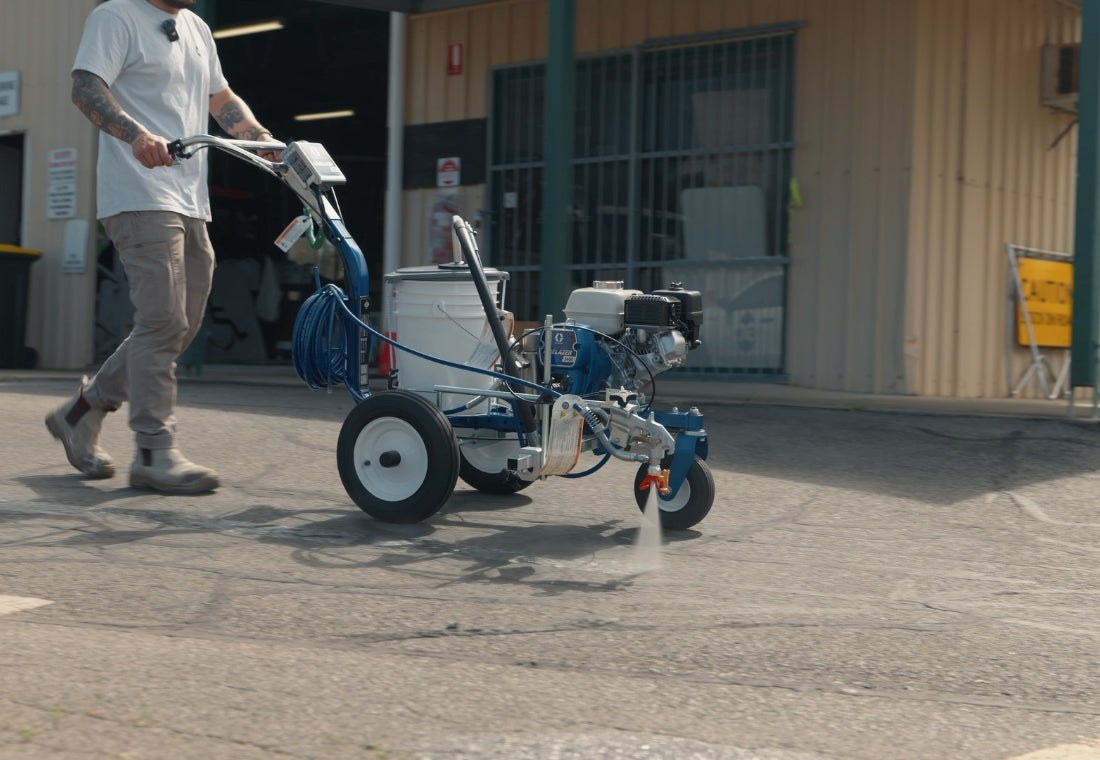

How do I control the Graco LineLazer 3400 for straight lines and curves?
The handlebars feature controls for both steering and spraying. The left trigger typically controls the front wheel, allowing you to lock it for straight lines or release it for marking curves and turns. The right trigger activates the spray gun.
What maintenance is required for the Graco LineLazer 3400?
Regular maintenance is crucial for longevity. This includes engine maintenance (checking fuel, air filter, and spark plug), proper cleaning after each use to prevent paint from drying in the system, and using Graco Pump Armour before storage to protect against corrosion and keep packings from drying out.
What is included when I purchase a Graco LineLazer 3400 from GO Industrial?
Standard inclusions typically feature the LineLazer 3400 unit with a Honda petrol engine, a Graco Silver Plus striping gun, an airless line marking hose (e.g., ¼” x 15M), extra LineLazer & Rac 5 Spray Tips for varying line widths, and a Rac 5 Tip Guard. It's always best to confirm the exact package contents at the time of purchase.
Can I adjust the line width with the Graco LineLazer 3400?
Yes, line width can be adjusted by changing the spray tip and adjusting the height of the spray gun. Different tip sizes are available to achieve various line widths suitable for different applications.
What safety precautions should I take when using the Graco LineLazer 3400?
Always operate the machine in a well-ventilated area. Be aware that it operates at high pressure, so skin injection injuries are a serious risk; always engage the trigger lock when the gun is not in use. Ensure the brake is engaged when the machine is not actively being used to prevent it from rolling away. Refer to the manufacturer's safety guidelines for comprehensive information.
How should I clean the Graco LineLazer 3400 after use?
After spraying, it's essential to flush the unit thoroughly. If using water-based paint, flush with water. For solvent-based paints, use the appropriate solvent. Ensure all paint is removed from the pump, hose, and gun. The GO Industrial YouTube video provides a visual walkthrough of the cleaning process.
What is Pump Armour and why is it important?
Pump Armour is a protective fluid that should be primed through the unit after cleaning and before storage. It prevents corrosion, stops packings from drying out and cracking, and helps to avoid costly repairs, ensuring the machine performs reliably for years.
Where can I find more detailed information or a how-to guide for the Graco LineLazer 3400?
GO Industrial has published an in-depth article, "The Anatomy of a Graco LineLazer 3400 — Features, Setup & a How-To Guide You Need to Master Your Line Marking Unit," and a companion YouTube video that provides a comprehensive walkthrough of its features, setup, operation, and maintenance.
Is the Graco LineLazer 3400 a good investment for a new line marking contractor?
Yes, the LineLazer 3400 is considered an ideal entry-level line marking unit. It offers a great balance of ease of use, simple maintenance, and high capability for its price point, making it a solid choice for those starting out or looking to streamline their operations without a steep learning curve.
