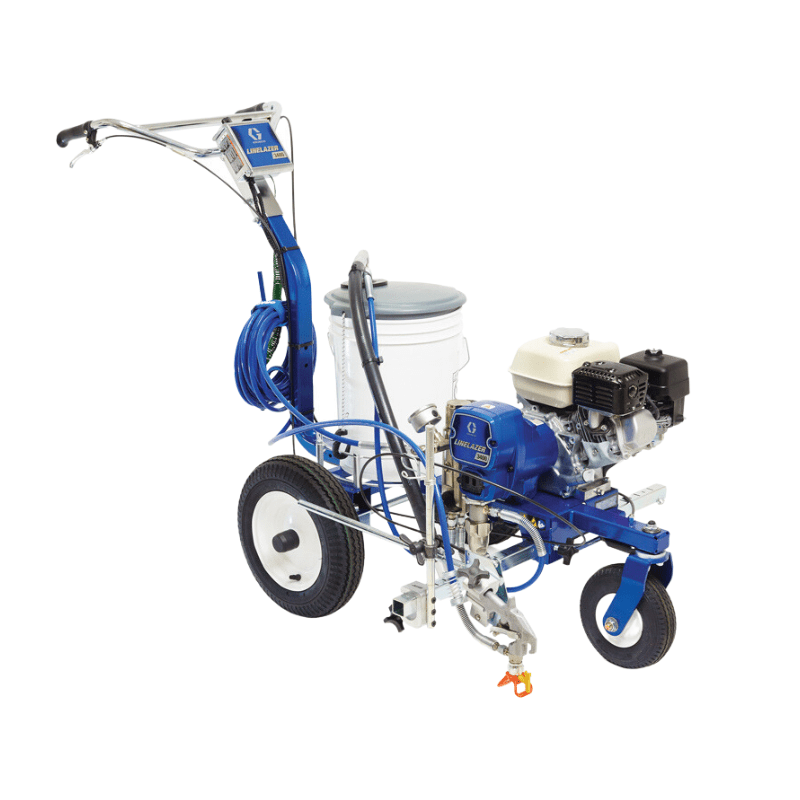

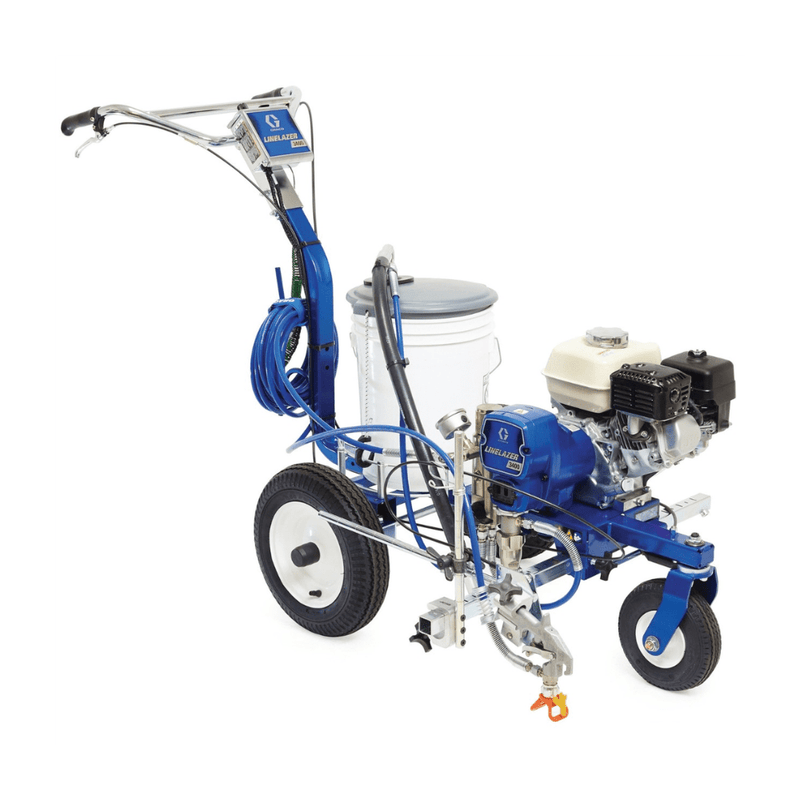

GRACO LineLazer 3400 Airless Line Striper
SKU 25M224
$13,100.00
Tax included. Shipping calculated at checkout.
Quantity
In Stock
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

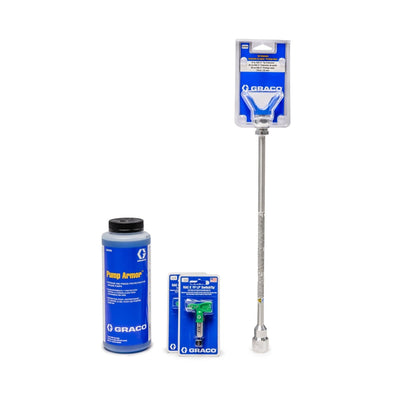

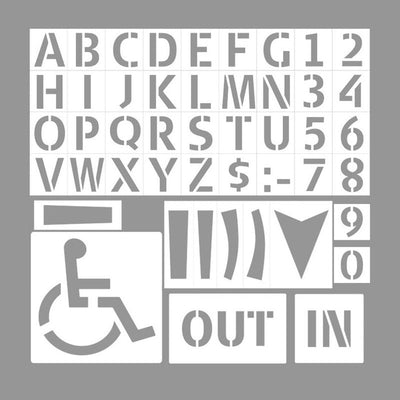

Frequently bought together
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Product details
Built for the work it does.

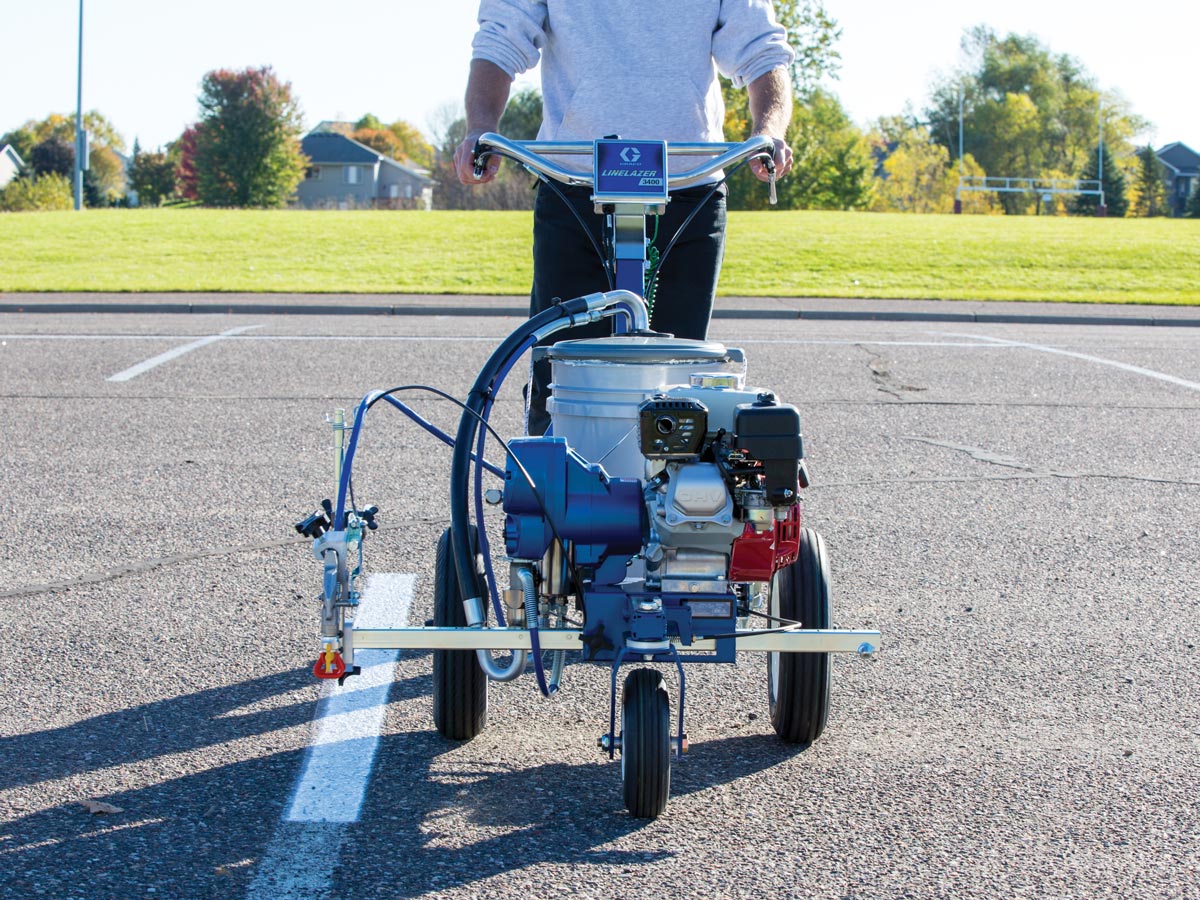

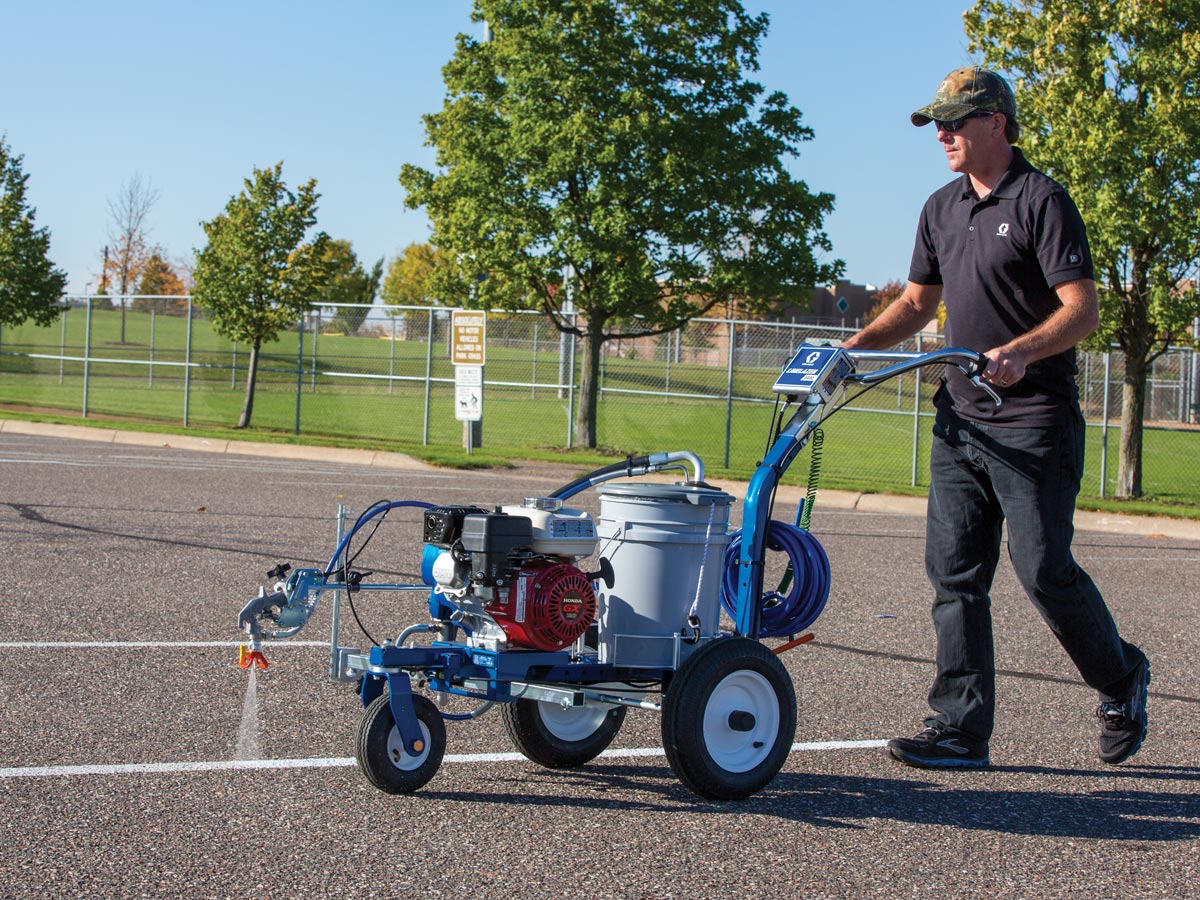

The LineLazer 3400 is the professional choice for dependable, 1-gun striping for small parking lots, mini malls, seal coating contractors, schools and park and recreation departments.
The Graco LineLazer 3400 is a petrol powered (Honda GX120 Engine) one gun line marking machine and is ideal for restripe work.
The new model has a 75mm longer frame to allow greater stability and straighter lines and you can now add a 57L paint hopper and gravity bead system.
Features
Features
Updated Frame
- Improved Tracking & Line Quality
- Added stability with newly designed, 3-inch longer frame
- Accepts 15-gallon hopper and EZ Bead System
Rear Mount Hose Wrap
- Easier Stencil Jobs
- Easy on/off functionality
Easy-To-Reach Controls
- Fine-tune the striper without stopping
- Operator controls are located on the handlebars
New Handlebar Design
- Reduced Vibration
- Less operator fatigue with greater comfort and control
Electronic Pressure Control
- Improved Line Quality
- Accurate, tight tolerance system
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
Front Swivel Wheel
- Easier Maneuverability
- Ability to stripe right up to the curb
- Makes easy work of hard-to-do curves
- Years of dependable operation with tapered locking pin design
Specifications
| COMPATIBLE SURFACES | Pavement, Turf |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX120 |
| FUEL TANK CAPACITY (GAL) | 0.66 |
| FUEL TANK CAPACITY (L) | 2.5 |
| GUN ACTIVATION | 1 Manual |
| HOPPER VOLUME CAPACITY (GAL) | 15 |
| HOPPER VOLUME CAPACITY (L) | 56.8 |

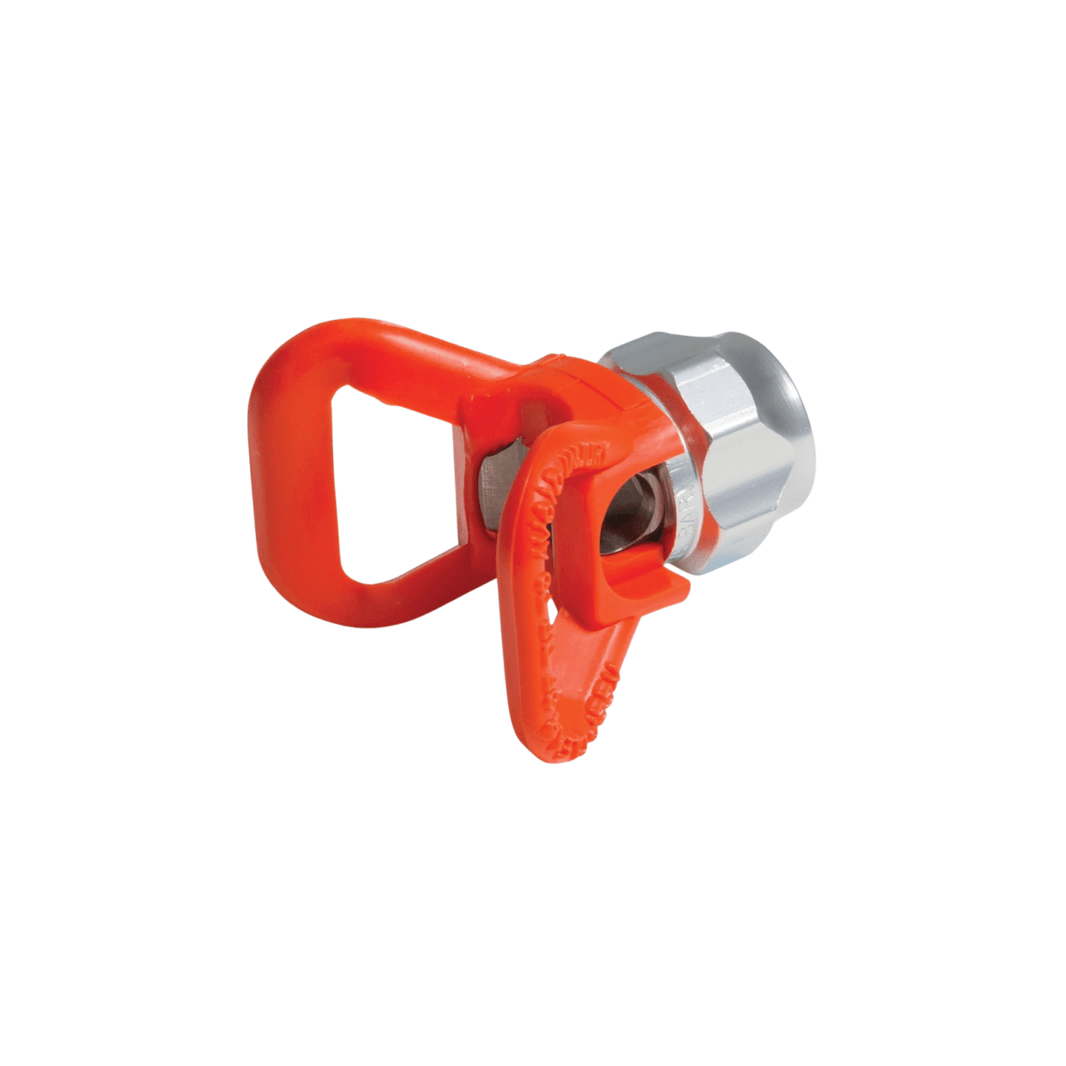

| INCLUDES | Contractor PC Gun, Flex Plus Gun, LineLazer RAC 5 317 Spray Tip, LineLazer RAC 5 319 Spray Tip, RAC 5 Tip Guard, 1/4 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 ml) |
| MAXIMUM FLOW RATE (GPM) | 0.75 |
| MAXIMUM FLOW RATE (L/MIN) | 2.8 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 91 |
| MAXIMUM TIP SIZE (CM) | 0.0686 |
| MAXIMUM TIP SIZE (IN) | 0.027 |
| MAXIMUM TIP SIZE (MM) | 0.6858 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 1 |
| NUMBER OF PUMPS | 1 |
| OVERALL HEIGHT (CM) | 100 |
| OVERALL HEIGHT (IN) | 39.4 |
| OVERALL HEIGHT (MM) | 1000.7600 |
| OVERALL LENGTH (CM) | 168.4 |
| OVERALL LENGTH (IN) | 66.3 |
| OVERALL LENGTH (MM) | 1684.02 |
| OVERALL WIDTH (CM) | 66 |
| OVERALL WIDTH (IN) | 26 |
| OVERALL WIDTH (MM) | 660.4000 |
| POWER RATING (HP) | 4 |
| POWER RATING (KW) | 2.98 |
| POWER RATING (W) | 2980 |
| PUMP TYPE | Endurance |
| SERIES | 3400 |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 73 |
| WEIGHT (LB) | 160 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas |
| RECOMMENDED ANNUAL USAGE | Up to 250 gallons per week |
| PRODUCT SERIES | Standard |
| ATTACHMENTS | None |
Warranty
Manuals
- GO Manual Operation Repair Parts Graco LineLazer 3400 Airless Line Striper Part1 3A4587EN-G
- GO Manual Operation Repair Parts Graco LineLazer 3400 Airless Line Striper Part2 3A4587EN-G
- GO Manual Instuctions Graco Silver Plus Silver Plus HP and Flex Plus Airless Spray Guns 311254EN-P
- GO Manual Repair LineLazer Displacement Pump 309250EN-Z
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Watch on the job
Field videos & walkthroughs.
More videos
Tap a thumbnail to switch the main player.
-
Video 1 -
Video 2
FAQs
Common questions.
What is the Graco LineLazer 3400 and who is it designed for?
The Graco LineLazer 3400 is a professional airless line striping machine. It's designed for contractors, property maintenance teams, schools, and councils who require a dependable and efficient solution for painting crisp, consistent lines for car parks, roads, sports pitches, and industrial safety zones. Its ease of use makes it a popular choice for both experienced professionals and those newer to line striping.
What are the main advantages of using a Graco LineLazer 3400?
The LineLazer 3400 offers bulletproof reliability, straightforward operation, and robust functionality. It's known for producing sharp, professional-quality lines, ease of manoeuvrability thanks to its front swivel wheel, and user-friendly controls located on the handlebars. It's powered by a reliable Honda GX120 petrol engine, and Graco’s Endurance Piston Pump.
What kind of projects is the Graco LineLazer 3400 suitable for?
It's ideal for small to medium-sized projects such as marking car park bays, laying out bike paths, applying stencils, and striping sports fields. It's a versatile unit that can be a valuable addition to an existing line marking fleet or a great starting point for new line marking operators and contractors.
How easy is the Graco LineLazer 3400 to set up and operate?
The setup is very similar to Graco's airless paint sprayers, involving priming the unit, testing spray patterns, and adjusting pressure. The controls are intuitively designed and located on the handlebars for ease of use during operation. The GO article, "The Anatomy of a Graco LineLazer 3400," provides a comprehensive guide to setup and operation.
What are the key components of the Graco LineLazer 3400?
Key components include the Honda GX120 petrol engine, a single manual Graco Flex Plus spray gun, a Graco Endurance Piston Pump, manifold filter, pressure gauge, spray tips (LL319 and Rac 5 Guards, a robust frame with handlebars, and a front swivel wheel for manoeuvrability.
How do I control the Graco LineLazer 3400 for straight lines and curves?
The handlebars feature controls for both steering and spraying. The left trigger typically controls the front wheel, allowing you to lock it for straight lines or release it for marking curves and turns. The right trigger activates the spray gun.
What maintenance is required for the Graco LineLazer 3400?
Regular maintenance is crucial for longevity. This includes engine maintenance (checking fuel, air filter, and spark plug), proper cleaning after each use to prevent paint from drying in the system, and using Graco Pump Armour before storage to protect against corrosion and keep packings from drying out.
What is included when I purchase a Graco LineLazer 3400 from GO Industrial?
Standard inclusions typically feature the LineLazer 3400 unit with a Honda petrol engine, a Graco Silver Plus striping gun, an airless line marking hose (e.g., ¼” x 15M), extra LineLazer & Rac 5 Spray Tips for varying line widths, and a Rac 5 Tip Guard. It's always best to confirm the exact package contents at the time of purchase.
Can I adjust the line width with the Graco LineLazer 3400?
Yes, line width can be adjusted by changing the spray tip and adjusting the height of the spray gun. Different tip sizes are available to achieve various line widths suitable for different applications.
What safety precautions should I take when using the Graco LineLazer 3400?
Always operate the machine in a well-ventilated area. Be aware that it operates at high pressure, so skin injection injuries are a serious risk; always engage the trigger lock when the gun is not in use. Ensure the brake is engaged when the machine is not actively being used to prevent it from rolling away. Refer to the manufacturer's safety guidelines for comprehensive information.
How should I clean the Graco LineLazer 3400 after use?
After spraying, it's essential to flush the unit thoroughly. If using water-based paint, flush with water. For solvent-based paints, use the appropriate solvent. Ensure all paint is removed from the pump, hose, and gun. The GO Industrial YouTube video provides a visual walkthrough of the cleaning process.
What is Pump Armour and why is it important?
Pump Armour is a protective fluid that should be primed through the unit after cleaning and before storage. It prevents corrosion, stops packings from drying out and cracking, and helps to avoid costly repairs, ensuring the machine performs reliably for years.
Where can I find more detailed information or a how-to guide for the Graco LineLazer 3400?
GO Industrial has published an in-depth article, "The Anatomy of a Graco LineLazer 3400 — Features, Setup & a How-To Guide You Need to Master Your Line Marking Unit," and a companion YouTube video that provides a comprehensive walkthrough of its features, setup, operation, and maintenance.
Is the Graco LineLazer 3400 a good investment for a new line marking contractor?
Yes, the LineLazer 3400 is considered an ideal entry-level line marking unit. It offers a great balance of ease of use, simple maintenance, and high capability for its price point, making it a solid choice for those starting out or looking to streamline their operations without a steep learning curve.
