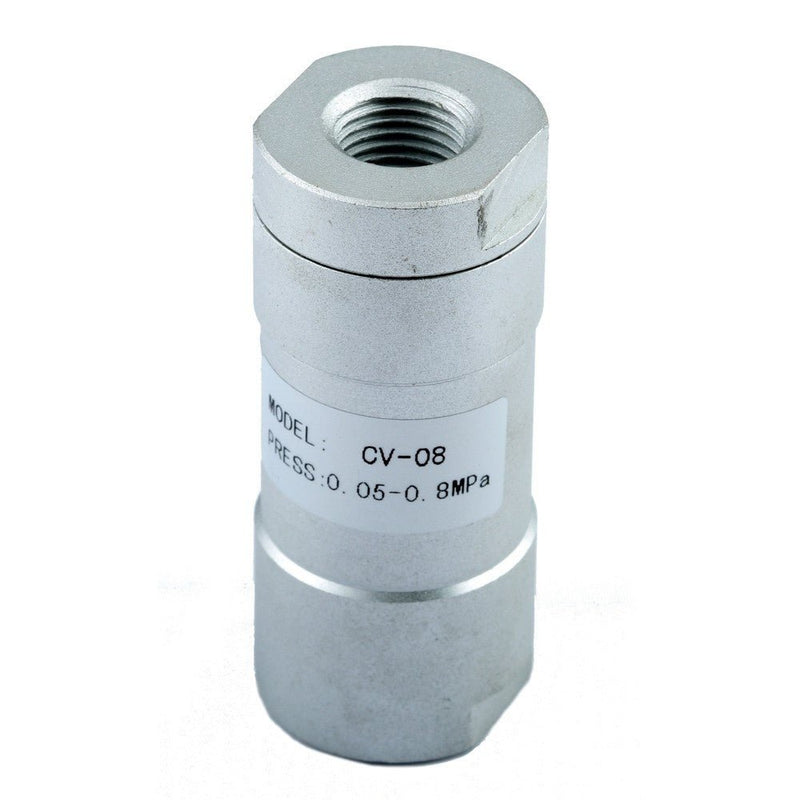

GO Inline Check Valve Aluminium 1/8" to 1" ACV Range

SKU: ACV-01

$24

GO Inline Check Valve Aluminium 1/8" to 1" ACV Range

Aluminium in line check valve for air and inert gases. It has a 0.5 to 12 BAR operating pressure range with media temperatures from-5 to 60°C. Great for installation in pneumatic systems where backflow prevention is needed. Can install in any direction. From 1/8" to 1" BSP.

  • Size 1/8" to 1" BSP
  • Function Check Valve
  • Body Aluminium
  • Pressure Range 0.5 to 12 BAR
  • Media Air
Specification ACV-01 ACV-02 ACV-03 ACV-04 ACV-05 ACV-06
Port Size G1/8” G1/4” G3/8” G1/2” G3/4” G1”
Nominal Diameter 6mm 8mm 10mm 15mm 20mm 25mm
Pressure Range 0.5 to 12 BAR
Max Inlet Pressure 12 BAR
Medium Temperature -5 to 60°C
Body Aluminium
Lubrication Not Required
Applicable Medium Air


A check valve, clack valve, non-return valve or one-way valve is a valve that normally allows fluid to flow through it in only one direction.

Check valves are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. There are various types of check valves used in a wide variety of applications.  Although they are available in a wide range of sizes and costs, check valves generally are very small, simple, or inexpensive.

Check valves work automatically and most are not controlled by a person or any external control; accordingly, most do not have any valve handle or stem. The bodies (external shells) of most check valves are made of plastic or metal.

An important concept in check valves is the cracking pressure, which is the minimum upstream pressure at which the valve will operate. Typically the check valve is designed for and can therefore be specified for a specific cracking pressure.
