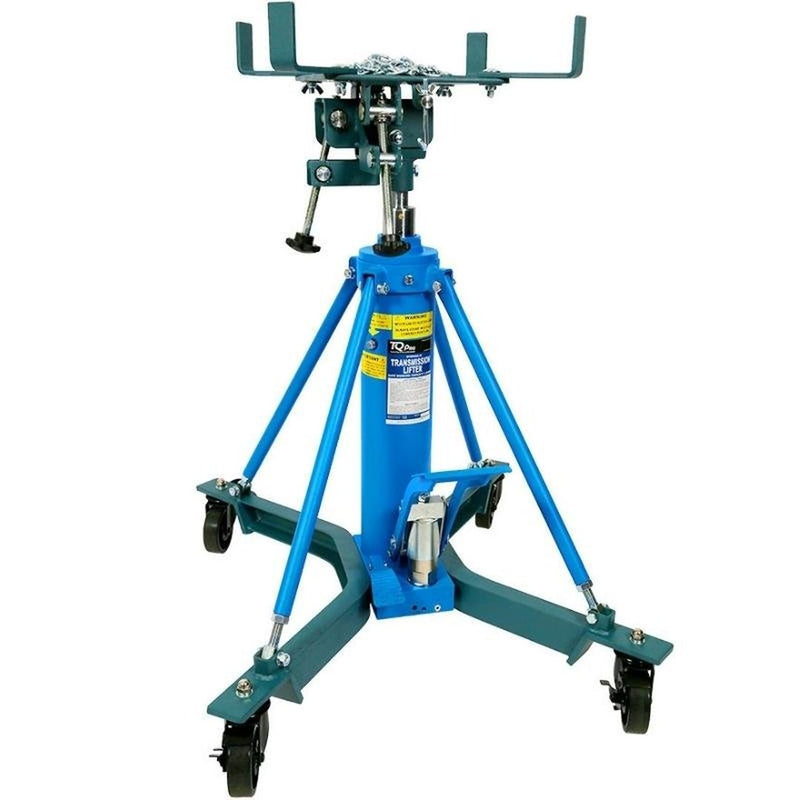

The TQ Pro two-stage 1,000kg hydraulic telescopic transmission lifter is designed to help increase workshop productivity, suited to car, 4WD and light truck transmissions. It features an oversized universal mounting cradle with a wide four-way tilt range to set the load at the perfect angle, and a telescopic two-stage design ideal for reduced clearance lifts. High speed foot pedal operation keeps hands free during lowering, a bypass system prevents over extension and accidental overloading, and four braked nylon swivel castors make it a one-person job to position around the workshop.
Features
CNC Steel Frame: The chassis and frame are built from superior grade steel using CNC technology to premium standards for professional quality and durability.
Hydraulic Cylinder: A high quality large diameter hydraulic steel cylinder with precision tolerances and an in-ram bleeding and lubricating mechanism.
Treated Piston-Ram: The piston-ram is precision machined, treated and polished to minimise wear and extend service life.
Twin O-Rings: Premium quality twin O-rings with an anti-dust ring reduce wear and increase durability.
Double Staged Pump: A concealed double staged pump core.
Rapid Lift: Rapid lift without load.
Slow Descent: Slow descent with load.
Overload Valve: An overload safety valve.
Lead-Free Finish: A lead-free paint finish applied after a thorough chemical wash for a durable finish.
Easy Cleanup: The paint is oil, grease and dirt resistant for easy cleanup.
Tilting Cradle: An oversize mounting cradle provides a broad four-way adjustment and tilt range.
Swivel Castors: Premium quality lockable nylon swivel castors.
Included accessories
Specifications
| Safe Working Capacity | 1,000kg |
|---|---|
| Maximum Height | 1940mm |
| Minimum Height | 940mm |
| Two Stage Ram Travel | 1st 490mm, 2nd 510mm |
| Cradle Size | 280 x 280mm (480 x 480mm max) |
| Forward Tilt | 55° |
| Rearward Tilt | 91° |
| Left Tilt | 55° |
| Right Tilt | 16° |
| Base Dimensions | 610 x 740mm |
| Nett Weight | 76.5kg |
| Carton | 850 x 385 x 560mm |
| Gross Weight | 87.5kg |
