Suitable for use with Diesel and Petrol

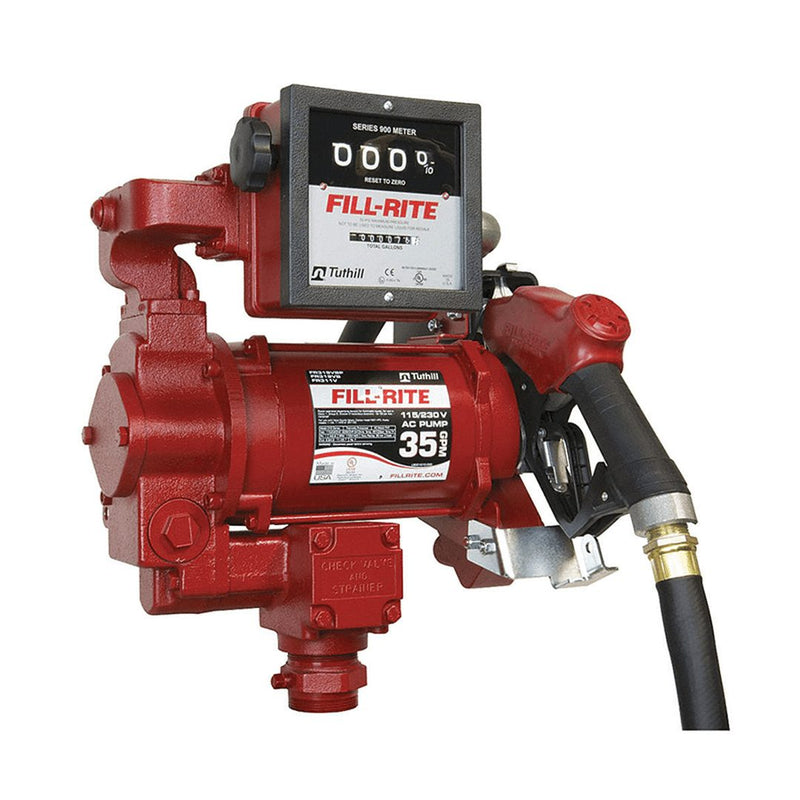

Power through high-volume refueling with the Fill-Rite 300 Series 240V AC Fuel Transfer Pump range, available at Go Industrial. Engineered for demanding fleet management, agricultural, and industrial applications, the heavy-duty Fill-Rite 300 Series Pump Range delivers ultra-high-flow performance up to 130 L/min (30 GPM) to drastically cut machinery downtime.
Made in the USA and built with rugged cast-iron construction and an IEXEc approved explosion-proof 240V motor, this commercial-grade pump provide unmatched reliability for bulk transfer of diesel, petrol, and alternative fuels. Explore our full selection of bare pumps, and complete plug and play kits for your site application.
NOTE - When pumping Petrol the Fill-Rite 300 Series pump delivers a very high flow. Given the low vapour point of petrol, you may experience vapour lock issues in very hot weather. Consider the Fill-Rite 700 Series range if you are pumping petrol in very hot climates.
Features
Ultra High-Flow Delivery
-
Dispenses fuel at a flow rate of up to 130 L/min (30 GPM), making quick work of filling heavy machinery, trucks, combine harvesters, fuel trailers and mobile tanks.
Heavy-Duty 3/4 HP Motor
-
Powered by a robust, IECEx rated explosion-proof 3/4 HP 240V AC motor engineered for high-demand, continuous commercial dispensing without thermal drop-off.
Cast-Iron Rotary Vane Design
-
Constructed with a powder-coated cast-iron body, sintered iron rotor, and self-adjusting carbon vanes that automatically compensate for wear to maintain day-one flow pressure.
Large-Diameter Fluid Connections
-
Supplied with a DN32 (1 1/4") BSP F Inlet and a DN25 (1") BSP F Outlet to maximise fluid throughput and significantly minimise suction line restriction.
Broad Liquids Compatibility
-
Safely transfers a wide range of common commercial fuels and solvents:
-
Diesel & Biodiesel (up to B20)
-
Petrol / Gasoline (up to E15 blend)
-
Kerosene
-
Mineral spirits & Stoddard solvents
-
Aviation Fuels - AVGAS and JetA1
-
Advanced Equipment Protection
-
Thermal Overload Protection: Automatically shuts down the motor under extreme temperatures to prevent winding burnout.
-
Internal Bypass Valve: Prevents pressure spikes when the nozzle is closed while the motor is active.
-
Removable Mesh Screen: Integrated, accessible strainer screens out rust and debris before it enters your machinery's fuel tank.
Site & Asset Security
-
Includes a heavy-duty lockable nozzle boot and switch lever to secure fuel supplies against unauthorised draw and theft.
Hazardous Location Certified
-
Fully tested and certified with global explosion-proof safety standards, including UL/cUL, ATEX, IECEx, and CE marks.
Specifications
| Specification Parameter | Technical Detail |
|---|---|
| Warranty | Fill-Rite 2-Year Limited Warranty |
| Max Flow Rate | Up to 130 L/min (30 GPM) |
| Operating Voltage | 230V / 240V AC (50/60 Hz) |
| Motor Horsepower | 3/4 HP Heavy-Duty Explosion-Proof Motor |
| Current / Amp Draw | 2.8 Amps (Full Load @ 240V) |
| Duty Cycle | Continuous Duty |
| Inlet Port Size | DN32 (1-1/4") BSP F |
| Outlet Port Size | DN25 (1") BSP F |
| Mounting Options | DN50 (2") BSP M Threaded Bung Mount |
| Max Operating Pressure | 26 PSI (1.8 bar / 179 kPa) |
| Max Suction Lift | Up to 3.65 m (12 ft) dry lift |
| Pump Technology | Rotary Carbon Vane with Sintered Iron Rotor |
| Housing Material | Powder-Coated Heavy-Duty Cast Iron |
| Seal Material | Fluorocarbon / Viton® Shaft Seals |
| Compatible Fluids | Diesel, Petrol (Gasoline up to E15), Kerosene, Bio-Diesel (up to B20), Mineral Spirits |
| Incompatible Fluids | Water, AdBlue / DEF, Acids, Caustics, Thick Oils (>50 SSU) |
| Inlet Strainer | Cleanable 40 x 40 Mesh Stainless Steel Strainer |
| Certifications & Safety | UL/cUL Listed Motor, ATEX, IECEx, CE Certified (Hazardous Location Approved) |
| Operating Temperature | -26°C to +40°C (-15°F to +104°F) |
| Security Features | Integrated lockable nozzle boot and heavy-duty locking lever |
| Bare Pump Unit Weight | Approx. 15.4 kg (34 lbs) |
| Shipping Bare Pump | 48.3 cm × 38.1 cm × 33.0 cm — 16.8 kg |
| Shipping Pump Kit | 53.3 cm × 48.3 cm × 35.6 cm — 23.5 kg |
