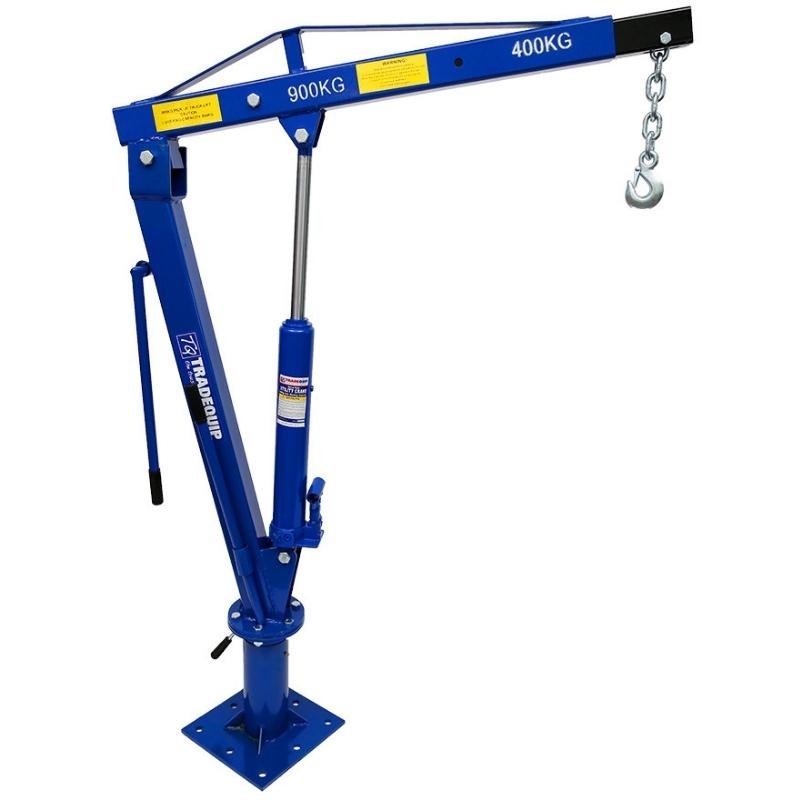

The TradeQuip steel ute crane lifts loads from the ground to ute or truck tray height, then rotates them into the cargo area. Its telescopic boom uses a manual hydraulic hand pump to pivot the boom up and down, and the base swivels 360 degrees for maximum accessibility. The crane handles up to 250kg in extended mode and 900kg when retracted, with a boom reach of 1,290mm at 250kg and 870mm at 900kg.
A pre-drilled 275 x 275mm base plate makes mounting quick, and the boom stores over the wheel well when not in use. It is designed for vertical lifting only and must not be used for lifting personnel or overhead lifting.
Features
Base plate: pre-drilled 275 x 275mm base plate makes mounting quick and easy.
Dual capacity: handles up to 250kg extended and 900kg retracted.
Hooks included: includes a chain hook with chain slot lock and a cable hook, both with safety latch.
360 degree rotation: base rotates 360 degrees for maximum access.
Vertical lifting: designed for vertical lifting only.
Usage limits: not to be used for lifting personnel or overhead lifting.
Steel construction: all steel construction.
Compact storage: boom stores over the wheel well when not in use.
Included accessories
Specifications
| Hydraulic Jack Capacity | 3,000kg |
|---|---|
| Hydraulic Lifting Capacity | 250 - 900kg |
| Maximum Reach of Boom | 1290mm (250kg), 870mm (900kg) |
| Maximum Height (hook height) | 2300mm (250kg), 2000mm (900kg) |
| Minimum Height | 1425mm (from ute tray to boom pivot, excluding boom) |
| Mounting Base | 275 x 275mm |
| Mounting Base Holes | 8 holes x 16mm dia x 110mm (centre to centre) |
| Weight | 48kg |
| Carton 1 of 2 | 1110 x 250 x 180mm |
| Carton 2 of 2 | 340 x 330 x 320mm |
