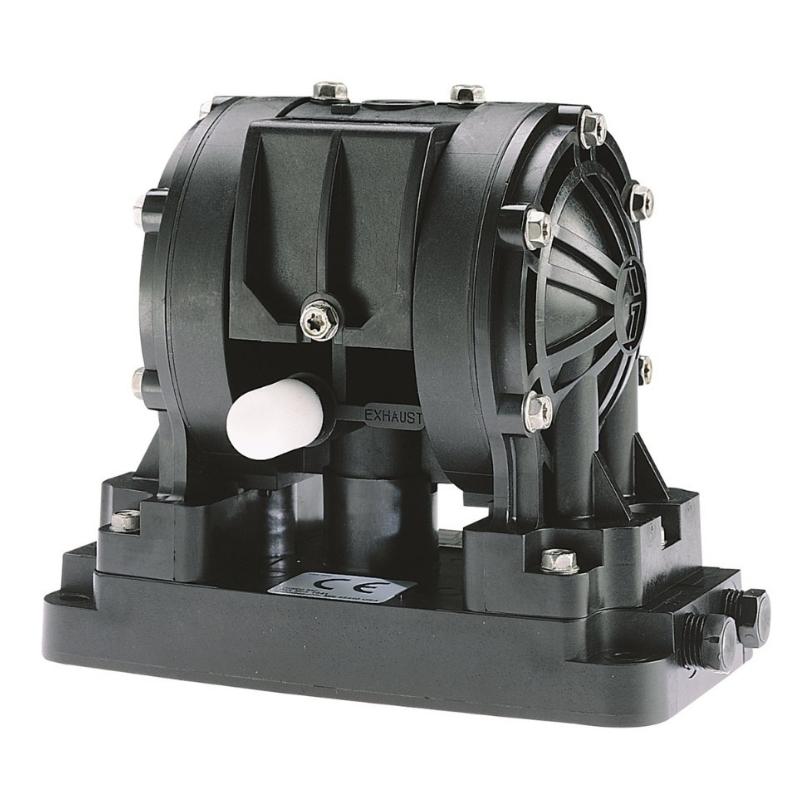

GRACO Husky 205 Air - Operated Diaphragm Pumps - GO Industrial - D11021
  • GRACO Husky 205 Air - Operated Diaphragm Pumps - GO Industrial - D12096
  • GRACO Husky 205 Air - Operated Diaphragm Pumps - GO Industrial - D150A1
  • GRACO Husky 205 Air - Operated Diaphragm Pumps - GO Industrial - D11021
1 1

GRACO Husky 205 Air-Operated Diaphragm Pumps

SKU: D12096

GRACO Husky 205 Air-Operated Diaphragm Pumps

$928.00 AUD
$928.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Models

Other payment options

View full details
GRACO Husky 205 Air - Operated Diaphragm Pumps - GO Industrial - D12096

GRACO Husky 205 Air-Operated Diaphragm Pumps

From $928.00 AUD
From $928.00 AUD
Save $0
Sold out

Details

  • Rugged construction. Resists corrosion for reliable performance and long life
  • Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
  • Flow rates up to 300 gpm (1135 lpm)
  • Lube-free for cleaner operation
  • DataTrak™ available to prevent pump runaway and track material usage

Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

Applicable for:

  • Paints, stains, coatings, inks and dyes
  • Chemicals
  • Acids
  • Corrosive and abrasive fluids
  • Lubricants
  • Ceramic glazes
  • Sludge, slurry, and waste fluid
  • Soaps, detergents, and solvents

Model List

  • D12096: Husky 205 PP Pump, PP Center Section, PP Balls & SP Diaphragm
  • D12091: Husky 205 PP AODD Plastic Pump, PP/PT/PT-FKM
  • D150A1: Husky 205 PVDF Pump, PP Center Section, PVDF Balls & PTFE Diaphragm
  • D11021: Husky 205 AC Pump, PP Center Section, AC Balls & PTFE Diaphragm

Features

  • True-formed PTFE and Santoprene diaphragms for enhanced performance
  • Spring loaded checks allow the diaphragm pump to work in any orientation
  • Inlet and Outlet are interchangeable
  • Remote control option using an external controller
  • 1/4-in (6.35 mm) end-porting double diaphragm pump

    • Graco Husky 205 Air-Operated Diaphragm Pumps

    Overview

    The Graco Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money. The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • Go Brochure Graco Process Equipment 300570EN-K
      • GO Instruction Graco Husky 205 Air-Operated Diaphragm Pumps 308652EN-ZAS
      • GO Data Sheet Graco Husky 205 Air-Operated 300570EN-K

      Specifications

      Technical Specifications SKU D12096 SKU D12091
      TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 1/4 1/4
      AIR EXHAUST PORT THREAD GENDER Female Female
      AIR EXHAUST PORT THREAD TYPE NPT, BSP NPT, BSP
      AIR INLET SIZE (IN) 1/4 1/4
      AIR INLET THREAD GENDER Female Female
      AIR INLET THREAD TYPE NPT, BSP NPT, BSP
      APPLICATION Industrial Industrial
      BALL MATERIAL Polypropylene Polypropylene
      CENTER SECTION MATERIAL Polypropylene Polypropylene
      COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink
      DIAPHRAGM MATERIAL Santoprene PTFE/EPDM 2-Piece
      FLUID INLET SIZE (CM) 0.635 0.635
      FLUID INLET SIZE (IN) 1/4 1/4
      FLUID INLET SIZE (MM) 6.35 6.35
      FLUID INLET THREAD GENDER Female Female
      FLUID INLET THREAD TYPE NPT, BSPT NPT, BSPT
      FLUID OUTLET SIZE (CM) 0.635 0.635
      FLUID OUTLET SIZE (IN) 1/4 1/4
      FLUID OUTLET SIZE (MM) 6.35 6.35
      FLUID OUTLET THREAD GENDER Female Female
      FLUID OUTLET THREAD TYPE NPT, BSPT NPT, BSPT
      FLUID SECTION MATERIAL Polypropylene Polypropylene
      MANIFOLD CONFIGURATION End Port End Port
      MANIFOLD O-RING MATERIAL PTFE PTFE
      MATERIAL Polypropylene Polypropylene
      MAXIMUM AIR CONSUMPTION (SCFM) 9 9
      MAXIMUM AIR PRESSURE (BAR) 6.9 6.9
      MAXIMUM AIR PRESSURE (KPA) 690 690
      MAXIMUM AIR PRESSURE (PSI) 100 100
      MAXIMUM CYCLE RATE (CPM) 320 320
      MAXIMUM FLOW RATE (GPM) 5 5
      MAXIMUM FLOW RATE (L/MIN) 18.9 18.9
      MAXIMUM FLUID PRESSURE (BAR) 6.9 6.9
      MAXIMUM FLUID PRESSURE (KPA) 690 690
      MAXIMUM FLUID PRESSURE (PSI) 100 100
      MAXIMUM OPERATING TEMPERATURE (°C) 66 66
      MAXIMUM OPERATING TEMPERATURE (°F) 150 150
      MAXIMUM SOLID SIZE (CM) 0.15 0.15
      MAXIMUM SOLID SIZE (IN) 0.06 0.06
      MAXIMUM SOLID SIZE (MM) 1.5 1.5
      MODEL Husky Husky
      OVERALL HEIGHT (IN) 6 6
      POWER SOURCE Air Air
      SEAT MATERIAL Polypropylene Polypropylene
      SERIES 205 205
      WEIGHT (LB) 2 2
      WETTED MATERIAL Polypropylene, Santoprene, PTFE Polypropylene, PTFE/EPDM
      MAXIMUM FLUID PRESSURE (MPA) 0.69 0.69
      MAXIMUM AIR PRESSURE (MPA) 0.69 0.69
      Technical Specifications SKU D150A1 SKU D11021
      TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 1/4 1/4
      AIR EXHAUST PORT THREAD GENDER Female Female
      AIR EXHAUST PORT THREAD TYPE NPT, BSP NPT, BSP
      AIR INLET SIZE (IN) 1/4 1/4
      AIR INLET THREAD GENDER Female Female
      AIR INLET THREAD TYPE NPT, BSP NPT, BSP
      APPLICATION Industrial Industrial
      BALL MATERIAL PVDF Acetal
      CENTER SECTION MATERIAL Polypropylene Polypropylene
      COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink
      DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece PTFE/EPDM 2-Piece
      FLUID INLET SIZE (CM) 0.635 0.635
      FLUID INLET SIZE (IN) 1/4 1/4
      FLUID INLET SIZE (MM) 6.35 6.35
      FLUID INLET THREAD GENDER Female Female
      FLUID INLET THREAD TYPE NPT, BSPT NPT, BSPT
      FLUID OUTLET SIZE (CM) 0.635 0.635
      FLUID OUTLET SIZE (IN) 1/4 1/4
      FLUID OUTLET SIZE (MM) 6.35 6.35
      FLUID OUTLET THREAD GENDER Female Female
      FLUID OUTLET THREAD TYPE NPT, BSPT NPT, BSPT
      FLUID SECTION MATERIAL PVDF Acetal
      MANIFOLD CONFIGURATION End Port End Port
      MANIFOLD O-RING MATERIAL PTFE PTFE
      MATERIAL PVDF Acetal
      MAXIMUM AIR CONSUMPTION (SCFM) 9 9
      MAXIMUM AIR PRESSURE (BAR) 6.9 7
      MAXIMUM AIR PRESSURE (KPA) 690 700
      MAXIMUM AIR PRESSURE (PSI) 100 100
      MAXIMUM CYCLE RATE (CPM) 320 320
      MAXIMUM FLOW RATE (GPM) 5 5
      MAXIMUM FLOW RATE (L/MIN) 18.9 18.9
      MAXIMUM FLUID PRESSURE (BAR) 6.9 7
      MAXIMUM FLUID PRESSURE (KPA) 690 700
      MAXIMUM FLUID PRESSURE (PSI) 100 100
      MAXIMUM OPERATING TEMPERATURE (°C) 82 82
      MAXIMUM OPERATING TEMPERATURE (°F) 180 180
      MAXIMUM SOLID SIZE (CM) 0.15 0.15
      MAXIMUM SOLID SIZE (IN) 0.06 0.06
      MAXIMUM SOLID SIZE (MM) 1.5 1.5
      MODEL Husky Husky
      OVERALL HEIGHT (IN) 6 6
      POWER SOURCE Air Air
      SERIES 205 205
      WEIGHT (LB) 2.8 2.5
      WETTED MATERIAL PVDF, Polypropylene, PTFE/EPDM Acetal, Polypropylene, PTFE/EPDM
      MAXIMUM FLUID PRESSURE (MPA) 0.69 0.7
      MAXIMUM AIR PRESSURE (MPA) 0.69 0.7


        Features

      • True-formed PTFE and Santoprene diaphragms for enhanced performance
      • Spring loaded checks allow the diaphragm pump to work in any orientation
      • Inlet and Outlet are interchangeable
      • Remote control option using an external controller
      • 1/4-in (6.35 mm) end-porting double diaphragm pump
