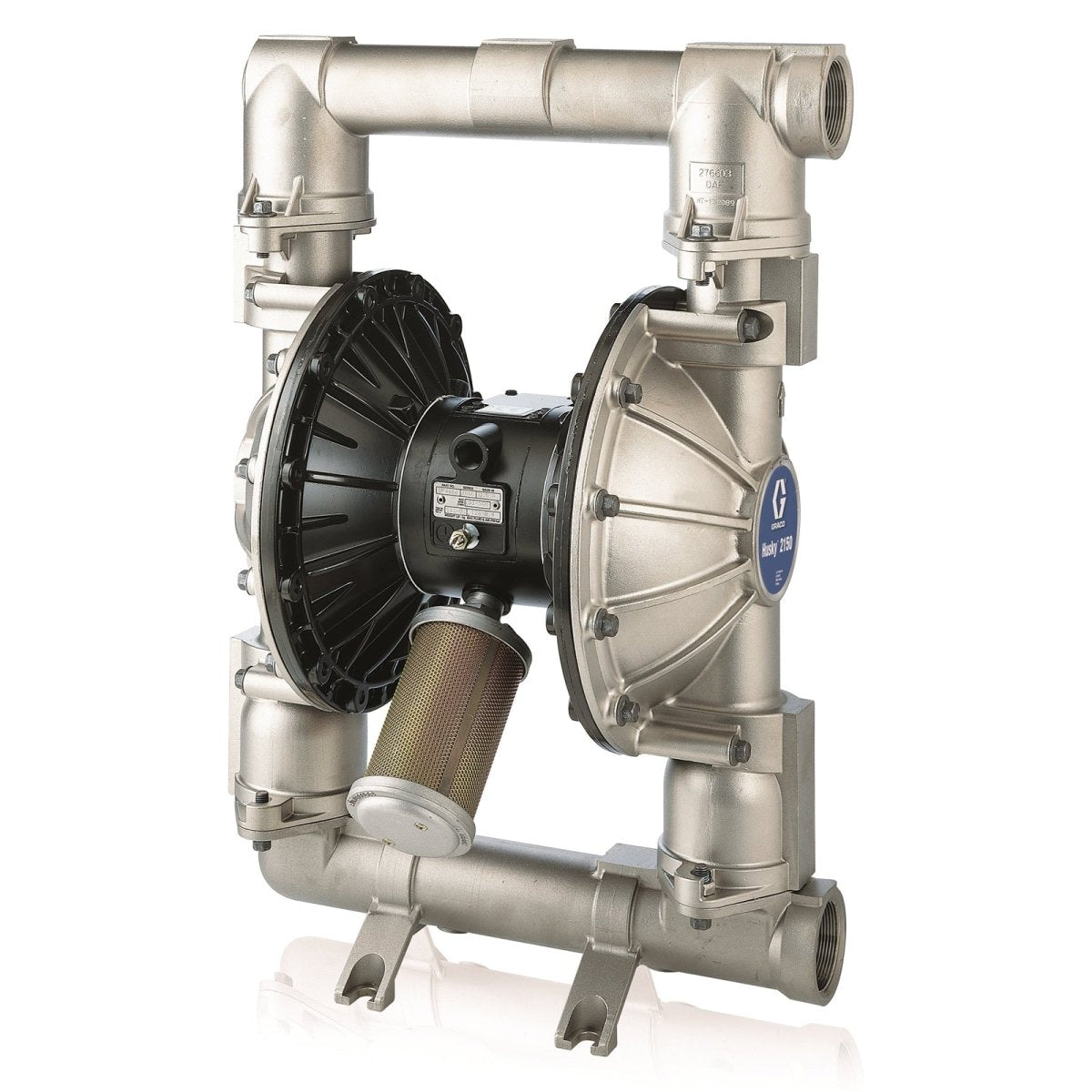

  • GRACO Husky 1590 Air - Operated Diaphragm Pumps - GO Industrial - DTD311
1 2

GRACO Husky 1590 Air-Operated Diaphragm Pumps

SKU: DB3525

GRACO Husky 1590 Air-Operated Diaphragm Pumps

$3,730.00 AUD
$3,730.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Models

Other payment options

View full details
GRACO Husky 1590 Air - Operated Diaphragm Pumps - GO Industrial - DB3525

GRACO Husky 1590 Air-Operated Diaphragm Pumps

From $3,730.00 AUD
From $3,730.00 AUD
Save $0
Sold out

Details

  • Rugged construction. Resists corrosion for reliable performance and long life
  • Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
  • Flow rates up to 300 gpm (1135 lpm)
  • Lube-free for cleaner operation
  • DataTrak™ available to prevent pump runaway and track material usage

Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

Applicable for:

  • Paints, stains, coatings, inks and dyes
  • Chemicals
  • Acids
  • Corrosive and abrasive fluids
  • Lubricants
  • Ceramic glazes
  • Sludge, slurry, and waste fluid
  • Soaps, detergents, and solvents

Model List

  • DB3525: Husky 1590 AL 1 1/2" (38.1 mm) NPT Standard Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm
  • DBC525: Husky 1590 AL 1 1/2" (38.1 mm) BSP Standard Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm
  • DB3GGG: Husky 1590 AL 1 1/2" (38.1 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & Diaphragm
  • DBCGGG: Husky 1590 AL 1 1/2" (38.1 mm) BSP Standard Pump, AL Center Section, GE Seats, GE Balls & Diaphragm
  • DTD311: Husky 1590 SS 1 1/2" (38.1 mm) BSP Standard Pump, SS Center Section, SS Seats, PTFE Balls & Diaphragm
  • DBC311: Husky 1590 AL 1 1/2" BSP Standard Pump, AL Center Section, SS Seats, PTFE Balls & Diaphragm

Features

  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
  • Expanded material offering to handle endless applications
  • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
  • Offered in ATEX configuration.
  • 1-1/2 in. (38.1 mm) ANSI end-porting
  • High flow - 100 gpm (378 lpm) in a compact, portable size
  • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
  • Lube-free operation
  • Available in polypropylene, aluminum and stainless steel
  • Epoxy-coated air section for tough environmental conditions

    • Graco Husky 1590 Air-Operated Diaphragm Pumps

    Overview

    The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • 308441EN-ZAU Husky 1590 Air-Operated Diaphragm Pumps Manual
    • 3A2889EN-G Graco Husky 15120 Air-Operated Diaphragm Pump Repair and Parts
    • Husky 1590 Air-Operated Diaphragm Pumps Data Sheet
    • GO Data Sheet Graco Husky 1050
    • GO Data Sheet Graco Husky 1590 Air-Operated 300570EN-K

    Specifications

    TYPE Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 3/4
    AIR EXHAUST PORT THREAD GENDER Female
    AIR EXHAUST PORT THREAD TYPE NPT
    AIR INLET SIZE (IN) 1/2
    AIR INLET THREAD GENDER Female
    AIR INLET THREAD TYPE NPT
    APPLICATION Industrial
    BALL MATERIAL Acetal [DB3525, DBC525]
    Geolast [DB3GGG, DBCGGG]
    PTFE [DTD311, DBC311]
    CENTER SECTION MATERIAL Aluminum [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    Stainless Steel [DTD311]
    COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
    DIAPHRAGM MATERIAL TPE (Hytrel) [DB3525, DBC525]
    Geolast [DB3GGG, DBCGGG]
    PTFE/EPDM 2-Piece [DTD311, DBC311]
    FLUID INLET SIZE (CM) 3.81
    FLUID INLET SIZE (IN) 1-1/2
    FLUID INLET SIZE (MM) 38.1
    FLUID INLET THREAD GENDER Female [DB3525, DB3GGG]
    BSPT [DTD311]
    FLUID INLET THREAD TYPE NPT [DB3525, DB3GGG]
    BSPT [DBC525, DBCGGG, DBC311]
    FLUID OUTLET SIZE (CM) 3.81
    FLUID OUTLET SIZE (IN) 1-1/2
    FLUID OUTLET SIZE (MM) 38.1
    FLUID OUTLET THREAD GENDER Female [DB3525, DB3GGG]
    FLUID OUTLET THREAD TYPE NPT [DB3525, DB3GGG]
    BSPT [DBC525, DBCGGG, DTD311, DBC311]
    FLUID SECTION MATERIAL Aluminum [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    Stainless Steel [DTD311]
    MANIFOLD CONFIGURATION End Port
    MANIFOLD O-RING MATERIAL PTFE [DB3GGG, DBCGGG, DTD311, DBC311]
    MATERIAL Aluminum [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    Stainless Steel [DTD311]
    MAXIMUM AIR CONSUMPTION (SCFM) 125
    MAXIMUM AIR PRESSURE (BAR) 8 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    8.27 [DTD311]
    MAXIMUM AIR PRESSURE (KPA) 800 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    827 [DTD311]
    MAXIMUM AIR PRESSURE (PSI) 120
    MAXIMUM CYCLE RATE (CPM) 200
    MAXIMUM FLOW RATE (GPM) 100
    MAXIMUM FLOW RATE (L/MIN) 379
    MAXIMUM FLUID PRESSURE (BAR) 8 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    8.27 [DTD311]
    MAXIMUM FLUID PRESSURE (KPA) 800 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    827 [DTD311]
    MAXIMUM FLUID PRESSURE (PSI) 120
    MAXIMUM OPERATING TEMPERATURE (°C) 66 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    82 [DBC311]
    MAXIMUM OPERATING TEMPERATURE (°F) 150 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    180 [DBC311]
    MAXIMUM SOLID SIZE (CM) 0.4763
    MAXIMUM SOLID SIZE (IN) 0.1875
    MAXIMUM SOLID SIZE (MM) 4.763
    MODEL Husky
    OVERALL HEIGHT (IN) 19.6
    POWER SOURCE Air
    SEAT MATERIAL TPE (Hytrel) [DB3525, DBC525]
    Geolast [DB3GGG, DBCGGG]
    Stainless Steel [DTD311, DBC311]
    SERIES 1590
    STANDARDS MET ATEX, CE
    WEIGHT (LB) 33.5
    WETTED MATERIAL Aluminum, Acetal, TPE [DB3525, DBCGGG]
    Aluminum, Stainless Steel, PTFE/EPDM [DBC311]
    MAXIMUM FLUID PRESSURE (MPA) 0.8 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    0.827 [DTD311]
    MAXIMUM AIR PRESSURE (MPA) 0.8 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    0.827 [DTD311]
    CONNECTION TYPE Threaded
    DIAPHRAGM_COMPATIBLE_MATERIAL TPE [DB3525, DBC525] Geolast [DB3GGG, DBCGGG]
    PTFE [DTD311, DBC311]

      Features

    • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
    • Expanded material offering to handle endless applications
    • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
    • Offered in ATEX configuration.
    • 1-1/2 in. (38.1 mm) ANSI end-porting
    • High flow - 100 gpm (378 lpm) in a compact, portable size
    • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
    • Lube-free operation
    • Available in polypropylene, aluminum and stainless steel
    • Epoxy-coated air section for tough environmental conditions
