Enquire For Price
- Double Acting
- 2.5 inch pump stroke for high flow rates
- Provides continuous flow operation for better pump efficiencies
- Pumps fluid in both directions of the stroke for increased flows
- Self-Priming
- Pump can free itself of air and resume pumping without any adjustments
- Anti-locking so air cannot get trapped inside air motor and stall pump
- Environmentally friendly
- 4.5” air motors come ready for a gas recovery add-on kit
- Less fugitive emissions
- Recoverable exhaust gas with kit
- Ease of Serviceability
- Minimum number of tools required
- Pumps are installed vertically for a reduced footprint
- Simple pump design for quick seals replacement
| Technical Specifications | |
| TYPE | Pneumatic Chemical Pump |
| APPLICATION | Hazardous Location |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPT |
| PLUNGER MATERIAL | Chromex Coated |
| SEAL MATERIAL | FFKM, HNBR, TFE/P |
| PLUNGER ROD COATING | Ceramic |
| APPROVALS | ATEX |
| SERIES | XL DA |
| MODEL | Python |

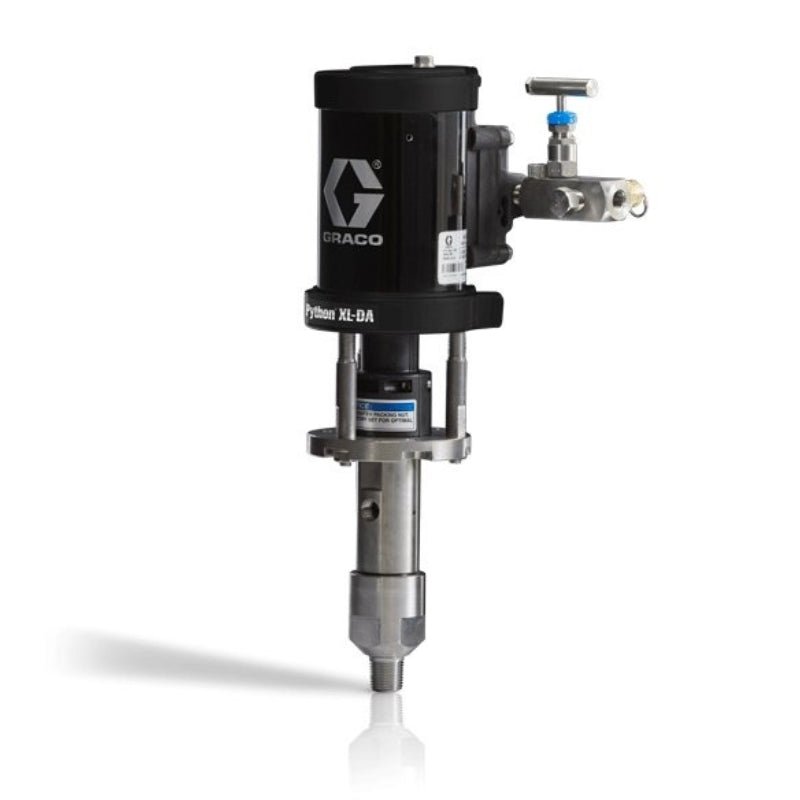

Graco Python XL-DA Pump with Chromex Coated Plunger - ATEX Approved
SKU: A24201Graco Python XL-DA Pump with Chromex Coated Plunger - ATEX Approved
Regular price
$5,214.00 AUD
Sale price
$5,214.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Other payment options
Couldn't load pickup availability
At a Glance
Python XL-DA series pumps are suitable for chemical injection applications that require higher flows at high pressures. These pumps operate on low gas or compressed air pressures and utilize the same Merkur® air motor used on other Graco products. The Graco patented high efficiency air valve helps minimize fugitive emissions and gas recovery can be achieved on specific models. The Python XL-DA pumps fluid in both stroke directions which provides continuous flow operation and prevents the pump from air locking.
- Double Acting
- 2.5 inch pump stroke for high flow rates
- Provides continuous flow operation for better pump efficiencies
- Pumps fluid in both directions of the stroke for increased flows
- Self-Priming
- Pump can free itself of air and resume pumping without any adjustments
- Anti-locking so air cannot get trapped inside air motor and stall pump
- Environmentally friendly
- 4.5” air motors come ready for a gas recovery add-on kit
- Less fugitive emissions
- Recoverable exhaust gas with kit
- Ease of Serviceability
- Minimum number of tools required
- Pumps are installed vertically for a reduced footprint
- Simple pump design for quick seals replacement
| Technical Specifications | |
| TYPE | Pneumatic Chemical Pump |
| APPLICATION | Hazardous Location |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPT |
| PLUNGER MATERIAL | Chromex Coated |
| SEAL MATERIAL | FFKM, HNBR, TFE/P |
| PLUNGER ROD COATING | Ceramic |
| APPROVALS | ATEX |
| SERIES | XL DA |
| MODEL | Python |
