Features

Ease of serviceability
- Modular air valve design
- Removable pilot valve
- Pump lowers are interchangeable with other Python XL models
- Plunger packings can be replaced in 10 minutes or less
Highest technology air motor on the market
- Only requires a minimum of 15 psi to operate pump
- Low air/gas consumption for increased efficiency
- Muffler provides low operation noise levels
- Proven Graco® Merkur® air motor technology
Robust and simple design
- 316 SST fluid section/wetted parts
- Three stroke adjustment positions
- HNBR, FKM, FKM ETP, FFKM, and TFE/P plunger packings and check valve seals
Environmentally friendly
- 97% recoverable exhaust gas
- Reduced fugitive methane emissions

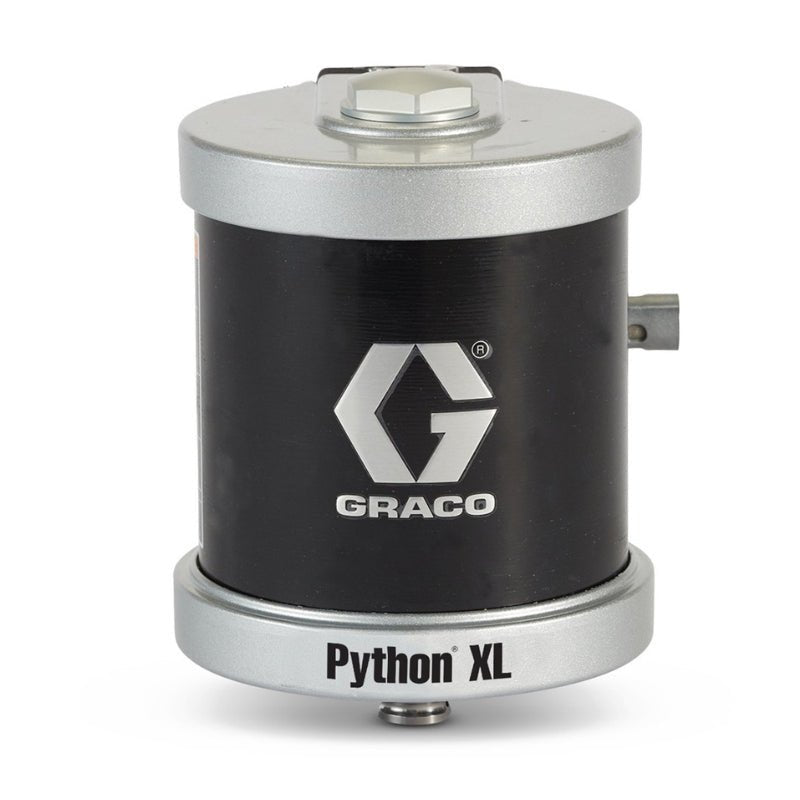

Graco Python XL Pump with Chromex Coated Plunger ATEX Approved

Name: GRACO Python XL Pump with Chromex Coated Plunger ATEX Approved
Brand: Graco Australia Pty Ltd
SKU: A25515
Price: 3616.0 AUD
Availability: InStock

Overview

Python XL pumps are ideal for wells with low gas or compressed air inlet pressure. Capable of operating up to 12,000 psi, the pumps are easy to operate and include an air motor with the same proven technology that Graco offers in other product lines. Plus the Python XL’s extreme duty plungers (Chromex™ and ceramic coated), seals and air valves are designed for years of operation before replacement.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

Graco Python XL Chemical Injection Manual 3A4019EN-J

Python XL Series Pumps Data Sheet 3G0026EN-D

Specifications

TYPE	Pneumatic Chemical Pump
AIR INLET THREAD GENDER	Female
AIR INLET THREAD TYPE	NPT
APPLICATION	Hazardous Location
COMPATIBLE MATERIAL	Chemicals
FLUID OUTLET THREAD TYPE	NPT
PLUNGER MATERIAL	FFKM, FKM, FKM-ETP, HNBR
SEAL MATERIAL	FFKM, FKM, FKM-ETP, HNBR
PLUNGER ROD COATING	Chromex
APPROVALS	ATEX
SERIES	XL
MODEL	Python

Features

Ease of serviceability
- Modular air valve design
- Removable pilot valve
- Pump lowers are interchangeable with other Python XL models
- Plunger packings can be replaced in 10 minutes or less
Highest technology air motor on the market
- Only requires a minimum of 15 psi to operate pump
- Low air/gas consumption for increased efficiency
- Muffler provides low operation noise levels
- Proven Graco® Merkur® air motor technology
Robust and simple design
- 316 SST fluid section/wetted parts
- Three stroke adjustment positions
- HNBR, FKM, FKM ETP, FFKM, and TFE/P plunger packings and check valve seals
Environmentally friendly
- 97% recoverable exhaust gas
- Reduced fugitive methane emissions
