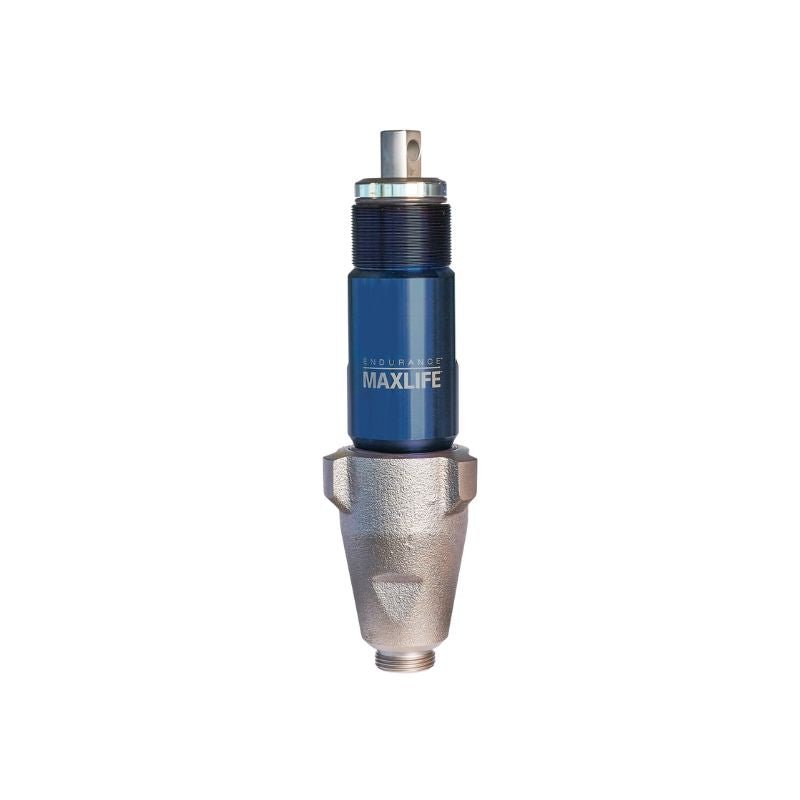

GRACO Displacement Pump 16X423 for GMAX II 7900 Standard
Skip to product information
1 of 1

Sprayer Compatibility

  • 16W883 - GMAX II 7900 Standard Low-Boy Cart
  • 16W884 - GMAX II 7900 Standard Hi-Boy Cart
  • GO Brochure Graco Airless Accessories 344386EN-J
  • GO Repair Graco Displacement Pump 333028EN-E
UPC Product: 00633955426993
Family Code: FAMSPA
Unit of Measure: EA
Height: 5.25 IN   |  13.335 CM
Length: 5.3 IN   |  13.462 CM
Width: 20.5 IN   |  52.07 CM
Volume: .33 FT3   |  .009 M3
Chargeable Weight: 11.34 LBS  | 5.14 KG

Technical Specifications

FLUID INLET SIZE (IN) 1 5/16
FLUID INLET THREAD TYPE UN
FLUID OUTLET SIZE (IN) 3/8
FLUID OUTLET THREAD GENDER Female
FLUID OUTLET THREAD TYPE NPT
FOR USE WITH GMAX II 7900 标准系列立式(2019 及后续型号), GMAX II 7900 標準シリーズ Lo-Boy (2019 年以降), GMAX II 7900 Standard Series Hi-Boy (2019 and newer), Lo-Boy GMAX II 7900 serie Standard (2019 y posteriores), GMAX II 7900 표준 시리즈 Hi-Boy(2019 또는 그 이후)
TYPE Replacement Pump
FLUID INLET SIZE (CM) 3.33375
FLUID INLET THREAD GENDER Male
MAXIMUM WORKING PRESSURE (PSI) 3300
MODEL Endurance
SERIES MaxLife

    Genuine Graco Endurance Pumps lead the industry in durability and ease of installation. Keep a spare on hand to minimize downtime in the field.

    Replacement pump for GMAX II 7900 Standard Series Hi-Boy sprayers model year 2019 and newer.

    • Lasts 2X longer than the next leading brand
    • Chromex rod and hardened stainless steel cylinder
    • Long Life V-Max Blue Packings
    • Faster cleaning with the QuikAccess intake valve
    • Repack the pump in minutes with the new QuikPak Cartridge System

GRACO Displacement Pump 16X423 for GMAX II 7900 Standard

SKU: 16X423

GRACO Displacement Pump 16X423 for GMAX II 7900 Standard

Regular price $2,436.00 AUD
Sale price $2,436.00 AUD Regular price $2,706.00 AUD
Save $270
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

The Basics

    • Replacement Pump
    • Complete fluid section for the airless sprayers listed below.
    • Fluid section include piston rod, cylinder, intake valve and ball, and fluid packings.

                Sprayer Compatibility

                • 16W883 - GMAX II 7900 Standard Low-Boy Cart
                • 16W884 - GMAX II 7900 Standard Hi-Boy Cart
                • GO Brochure Graco Airless Accessories 344386EN-J
                • GO Repair Graco Displacement Pump 333028EN-E
                UPC Product: 00633955426993
                Family Code: FAMSPA
                Unit of Measure: EA
                Height: 5.25 IN   |  13.335 CM
                Length: 5.3 IN   |  13.462 CM
                Width: 20.5 IN   |  52.07 CM
                Volume: .33 FT3   |  .009 M3
                Chargeable Weight: 11.34 LBS  | 5.14 KG

                Technical Specifications

                FLUID INLET SIZE (IN) 1 5/16
                FLUID INLET THREAD TYPE UN
                FLUID OUTLET SIZE (IN) 3/8
                FLUID OUTLET THREAD GENDER Female
                FLUID OUTLET THREAD TYPE NPT
                FOR USE WITH GMAX II 7900 标准系列立式(2019 及后续型号), GMAX II 7900 標準シリーズ Lo-Boy (2019 年以降), GMAX II 7900 Standard Series Hi-Boy (2019 and newer), Lo-Boy GMAX II 7900 serie Standard (2019 y posteriores), GMAX II 7900 표준 시리즈 Hi-Boy(2019 또는 그 이후)
                TYPE Replacement Pump
                FLUID INLET SIZE (CM) 3.33375
                FLUID INLET THREAD GENDER Male
                MAXIMUM WORKING PRESSURE (PSI) 3300
                MODEL Endurance
                SERIES MaxLife

                  Genuine Graco Endurance Pumps lead the industry in durability and ease of installation. Keep a spare on hand to minimize downtime in the field.

                  Replacement pump for GMAX II 7900 Standard Series Hi-Boy sprayers model year 2019 and newer.

                  • Lasts 2X longer than the next leading brand
                  • Chromex rod and hardened stainless steel cylinder
                  • Long Life V-Max Blue Packings
                  • Faster cleaning with the QuikAccess intake valve
                  • Repack the pump in minutes with the new QuikPak Cartridge System
                View full details
