Diesel Pump 200 LPM 240V AC Powered

• High Flow: DN50 (2") BSP Female Inlet and Outlet providing a consistent 200lpm flow rate
• Made in Italy Quality
• Self-Priming: The Pump automatically draws fuel without manual priming.
• Pump Seal: The pump is equipped with a 6 bar mechanical seal.  This high-quality seal prevents leaks and ensures a long service life.
• Integrated Bypass:  protects the pump and motor from damage caused by excessive pressure and heat.

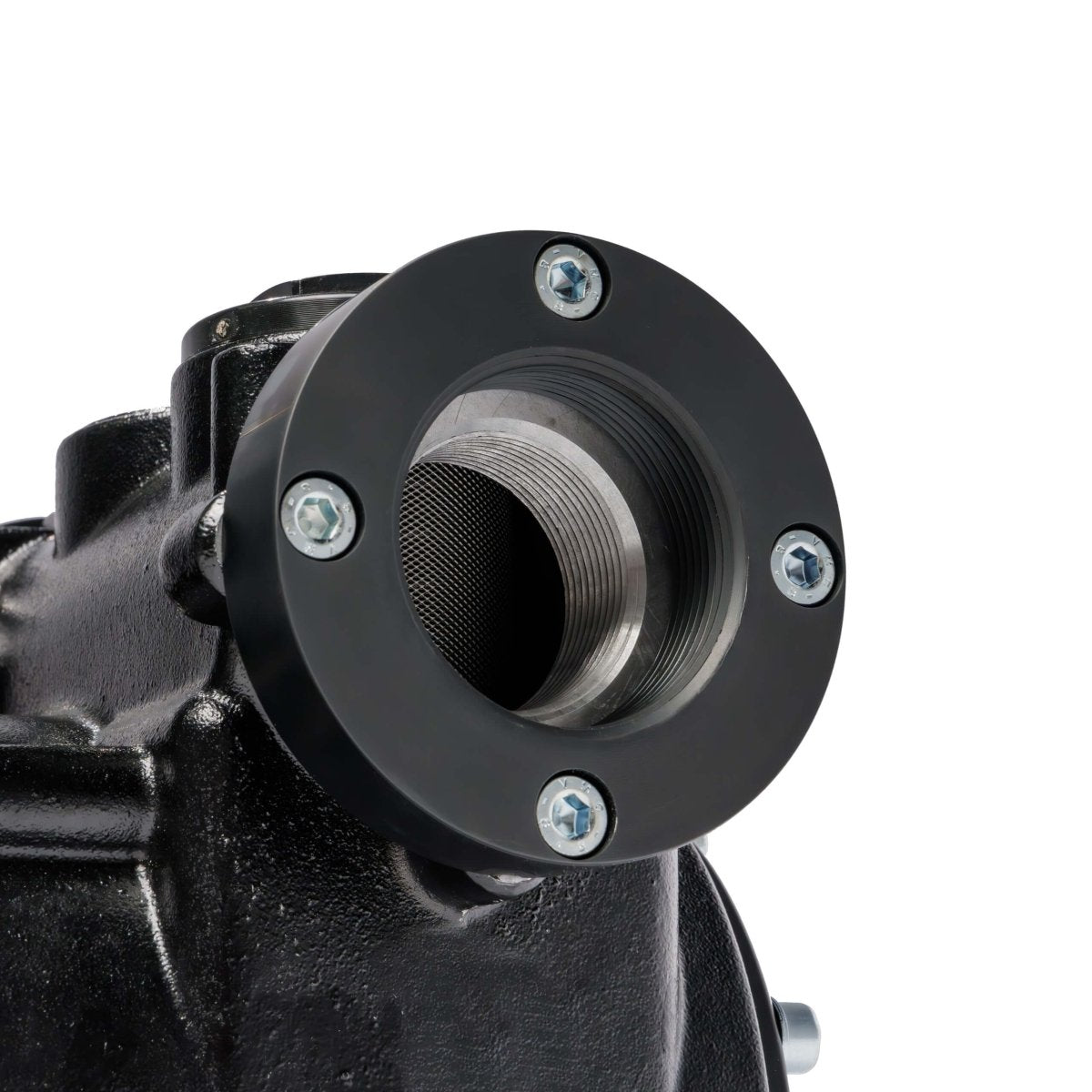

• Inlet Strainer: 130µm inlet strainer, which helps to remove impurities from the fuel, protecting the pump's internal components from damage and ensuring clean fuel transfer

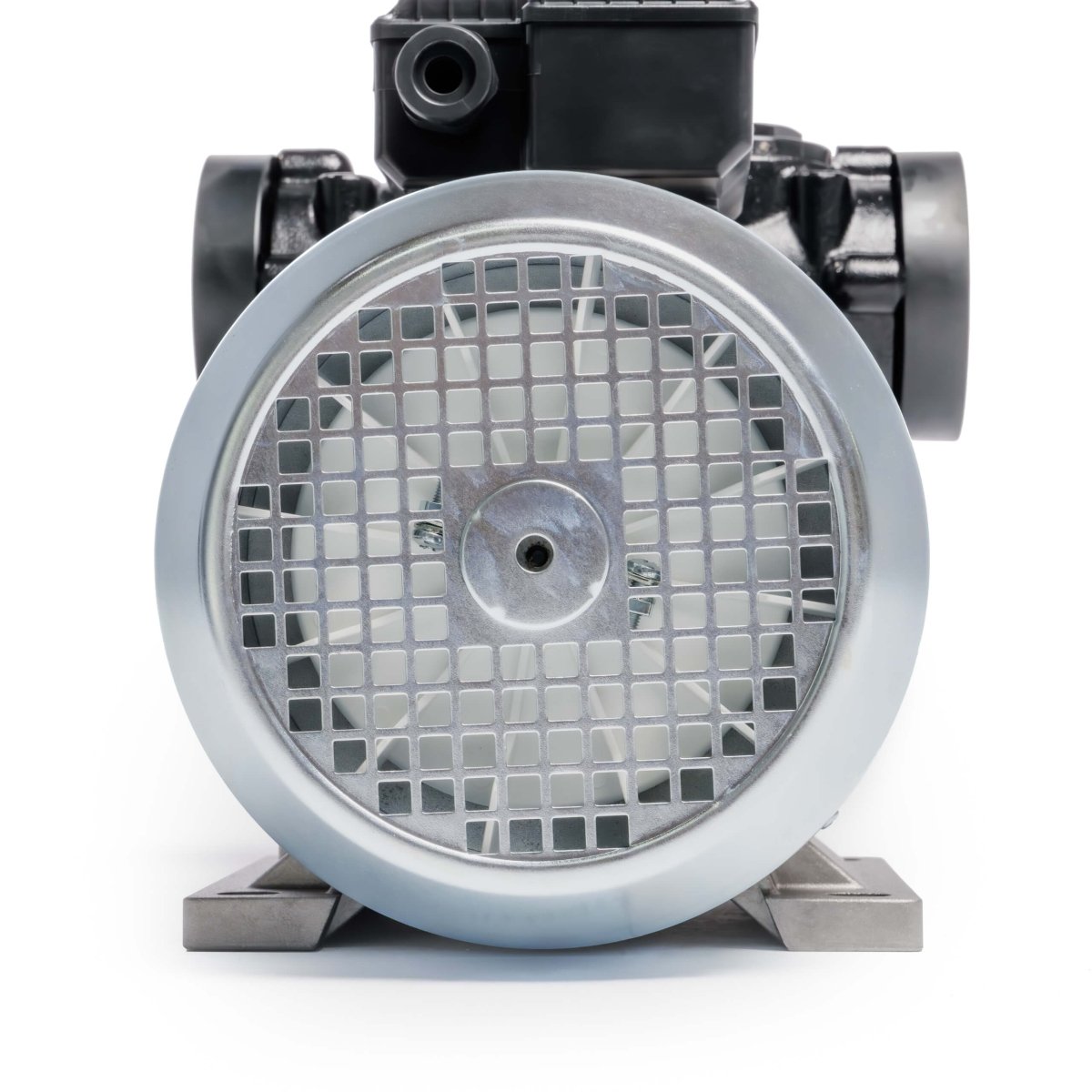

• Electric Motor: powered by asynchronous continuous duty AC motor with integrated auto reset thermal protection.

Overview

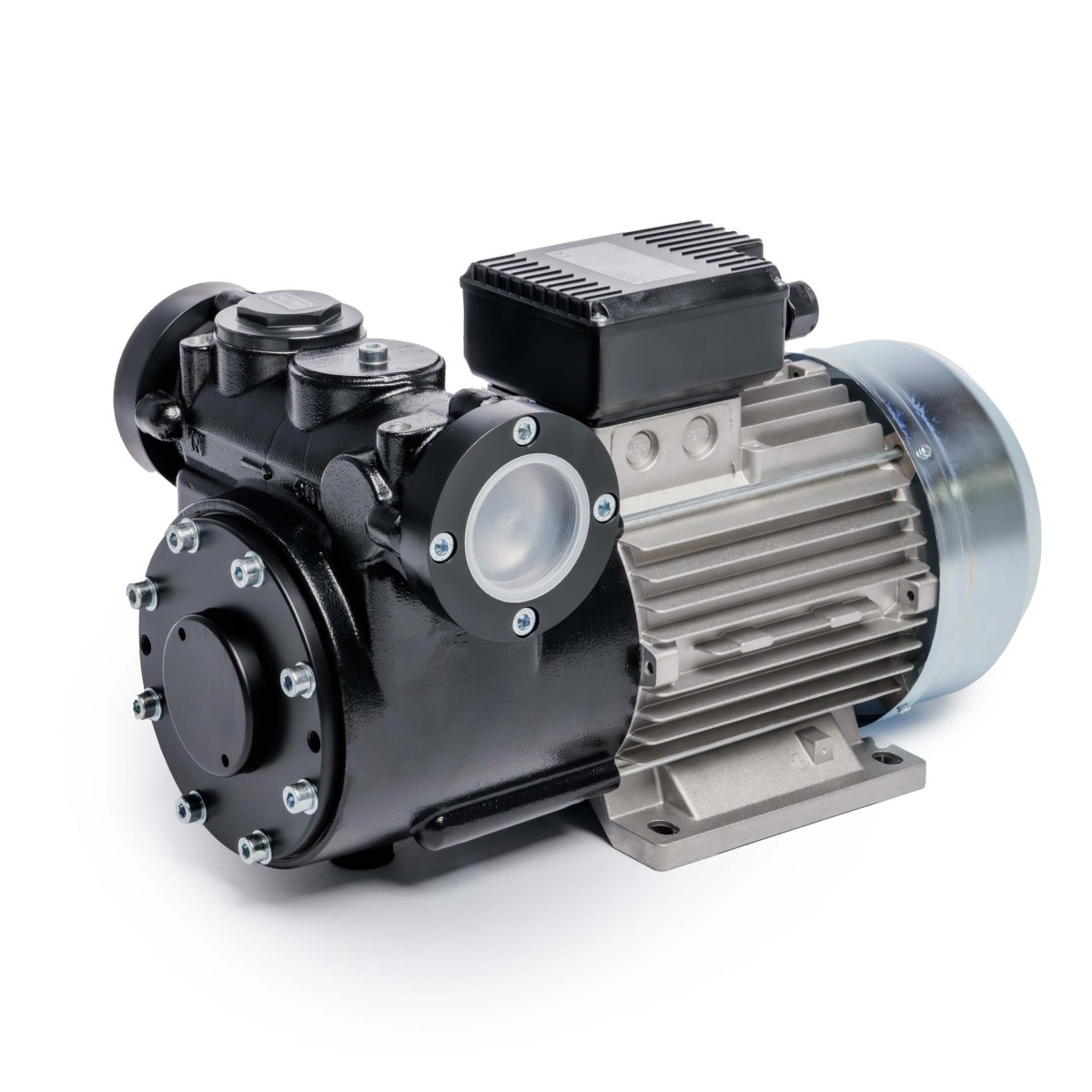

Elevate your diesel dispensing with the heavy duty GO Fill DETP0855 240V Positive Displacement Vane Pump.  This Italian manufactured pump is engineered for rapid and reliable diesel fuel transfer in demanding commercial and agricultural environments. The DETP0855 boasts an impressive high flow rate, ideal for bulk transfer and quickly refuelling fleets, machinery, or fuel trailers.

Data Sheet
GO Data Sheet Pump 200lpm DETP0855

• Flow Rate (1 bar): 200 lpm
• Max Pressure: 4 Bar
• IN:  DN50 (2") BSP F
• OUT: DN50 (2") BSP F
• Flange IN-OUT: Yes
• Suction: 3 mt
• HP: 3
• Watt: 2237
• Power Draw: 11.7 amp
• Engine Rotation: 1400 rpm
• Seal: 6 bar Mechanical Seal
• Valve Start Eased: Included
• Compatible Liquids: Diesel and Low Viscosity Lubricants
• Product Dimensions: 44cm L x 26cm W x 27cm H
• Packaging Dimensions: 46cm L x 26cm W x 37cm H
• Weight: 38 kg

• High Flow: DN50 (2") BSP Female Inlet and Outlet providing a consistent 200lpm flow rate
• Made in Italy Quality
• Self-Priming: The Pump automatically draws fuel without manual priming.
• Pump Seal: The pump is equipped with a 6 bar mechanical seal.  This high-quality seal prevents leaks and ensures a long service life.
• Integrated Bypass:  protects the pump and motor from damage caused by excessive pressure and heat.
• Inlet Strainer: 130µm inlet strainer, which helps to remove impurities from the fuel, protecting the pump's internal components from damage and ensuring clean fuel transfer
• Electric Motor: powered by asynchronous continuous duty AC motor with integrated auto reset thermal protection.
