Electric Start Diesel Pump DN50 (2 Inch) 240lpm Yanmar L48N Engine

• High Flow: DN50 (2") Inlet and Outlet providing a consistent 240lpm flow rate
• Made in Italy Quality
• Portability: It is a portable solution as it doesn't require an external power source.
• Self-Priming: The Pump automatically draws fuel without manual priming.
• Pump Seal: The pump is equipped with a 6 bar mechanical seal.  This high-quality seal prevents leaks and ensures a long service life.
• Inlet Strainer: 130µm inlet strainer, which helps to remove impurities from the fuel, protecting the pump's internal components from damage and ensuring clean fuel transfer
• Robust Design: Built for durability in challenging environments.

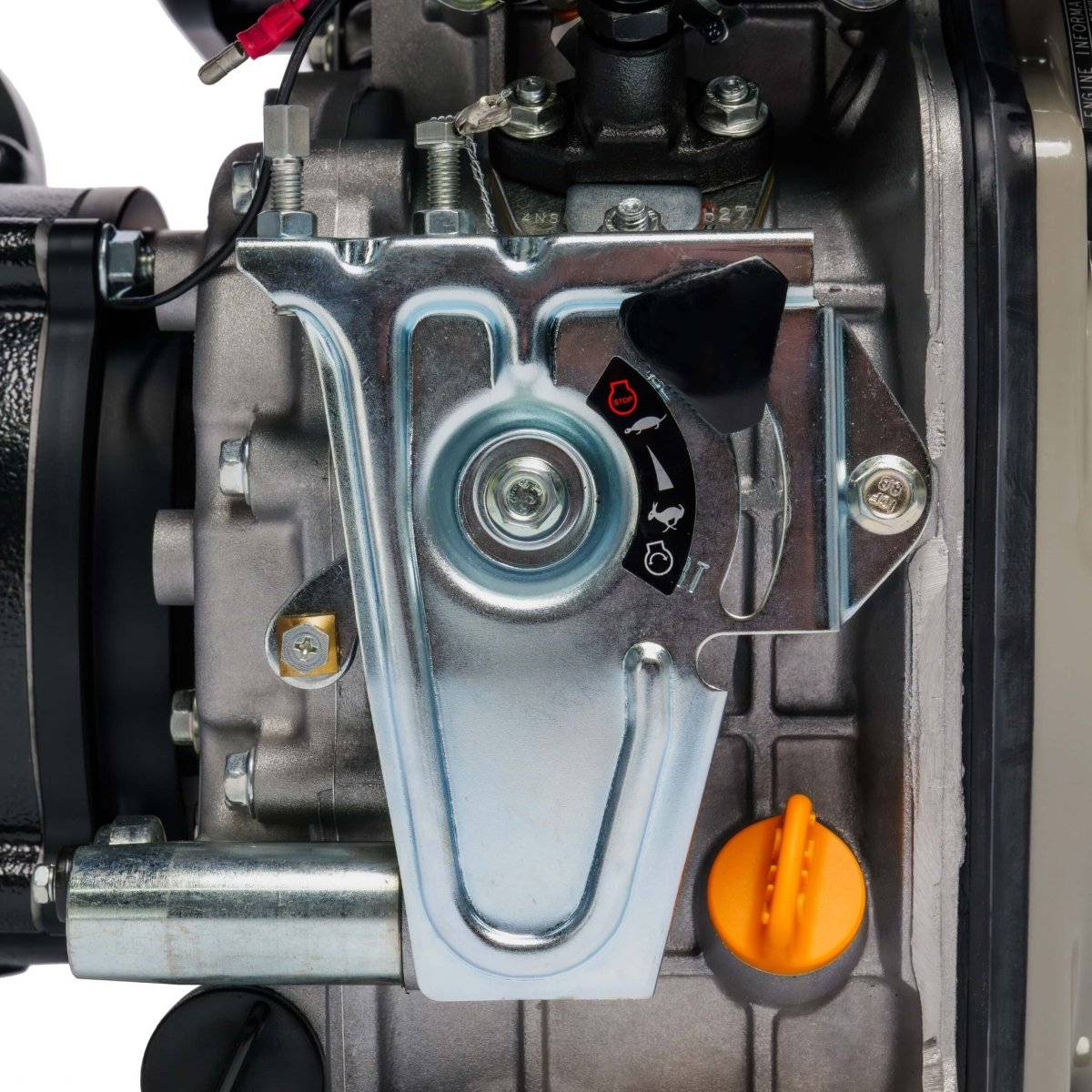

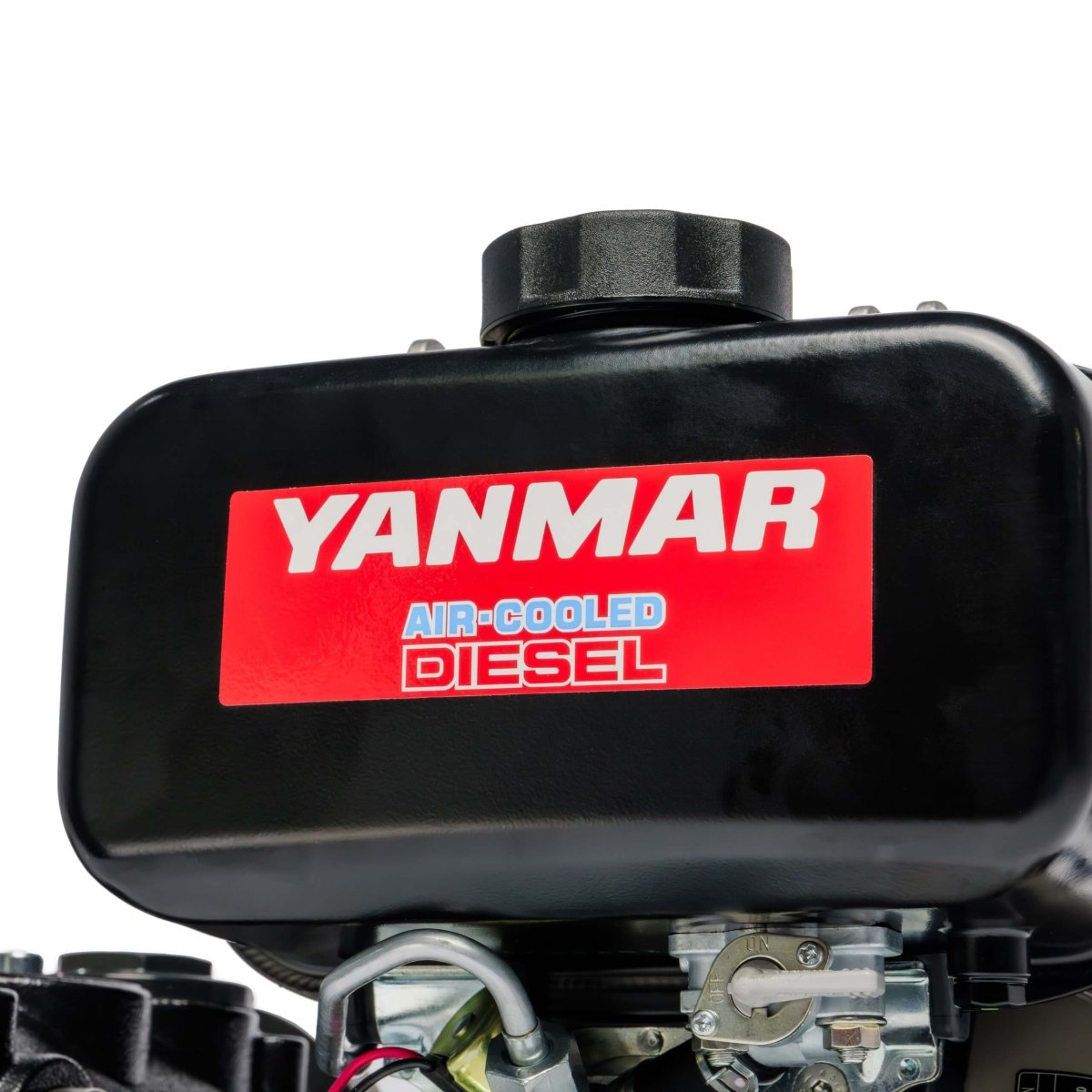

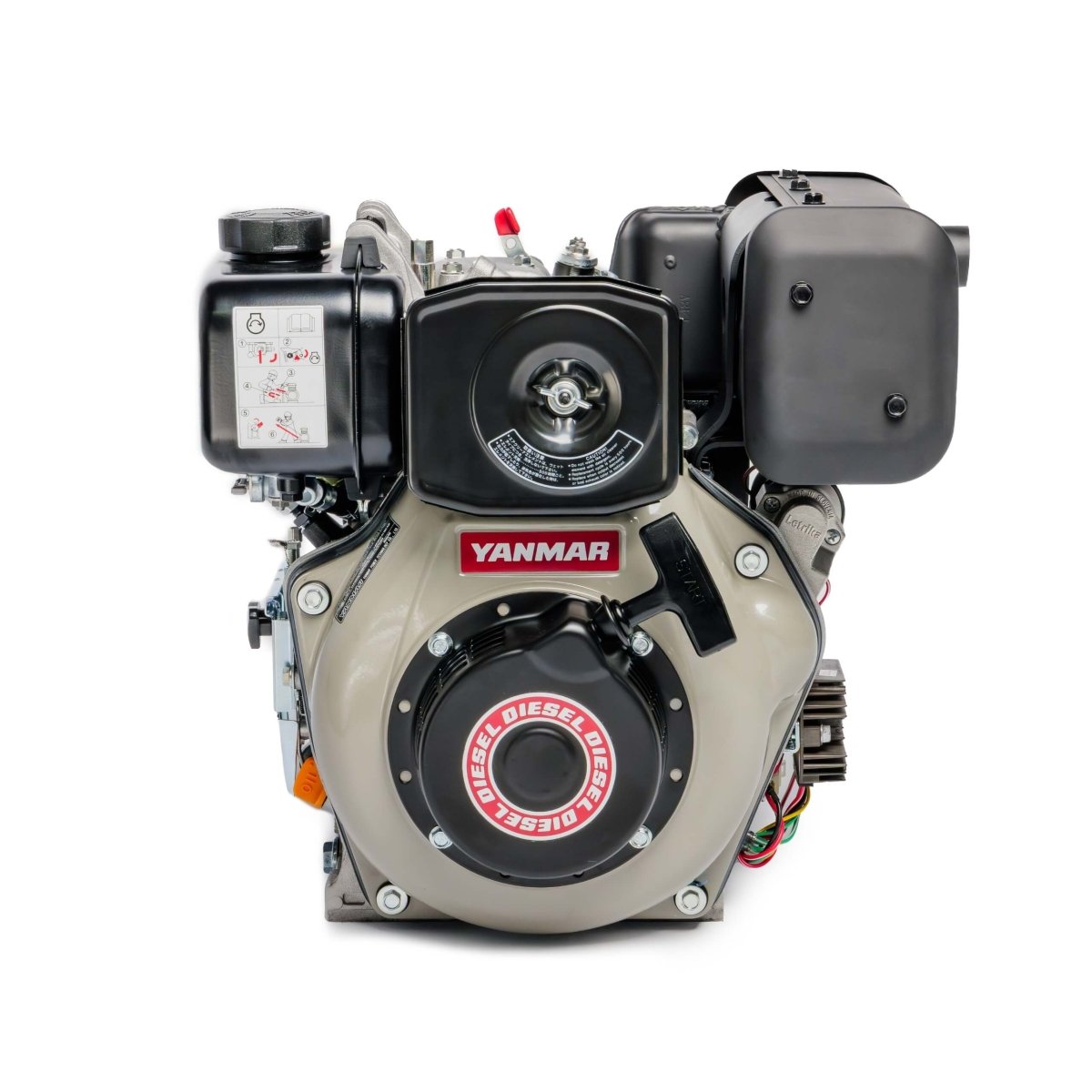

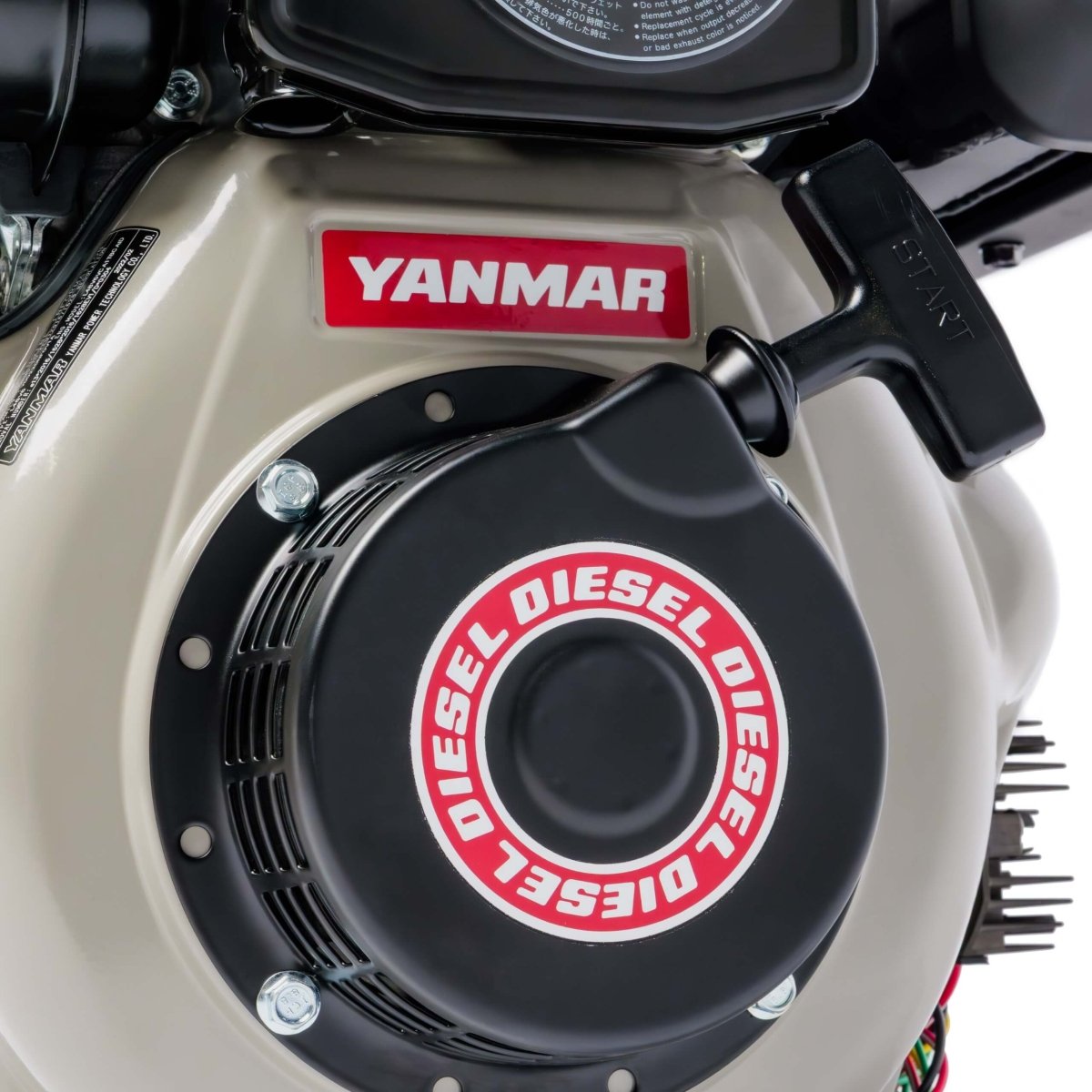

• Yanmar Quality: Electric Start genuine Yanmar L48N Diesel Driven Engine
• Balanced Cylinders: The engine has balanced cylinders, which helps to reduce vibration during operation. This contributes to a smoother and quieter running pump.
• Motion Transmission: It uses a supported crankshaft for motion transmission, which contributes to its durability and stable operation.

Overview

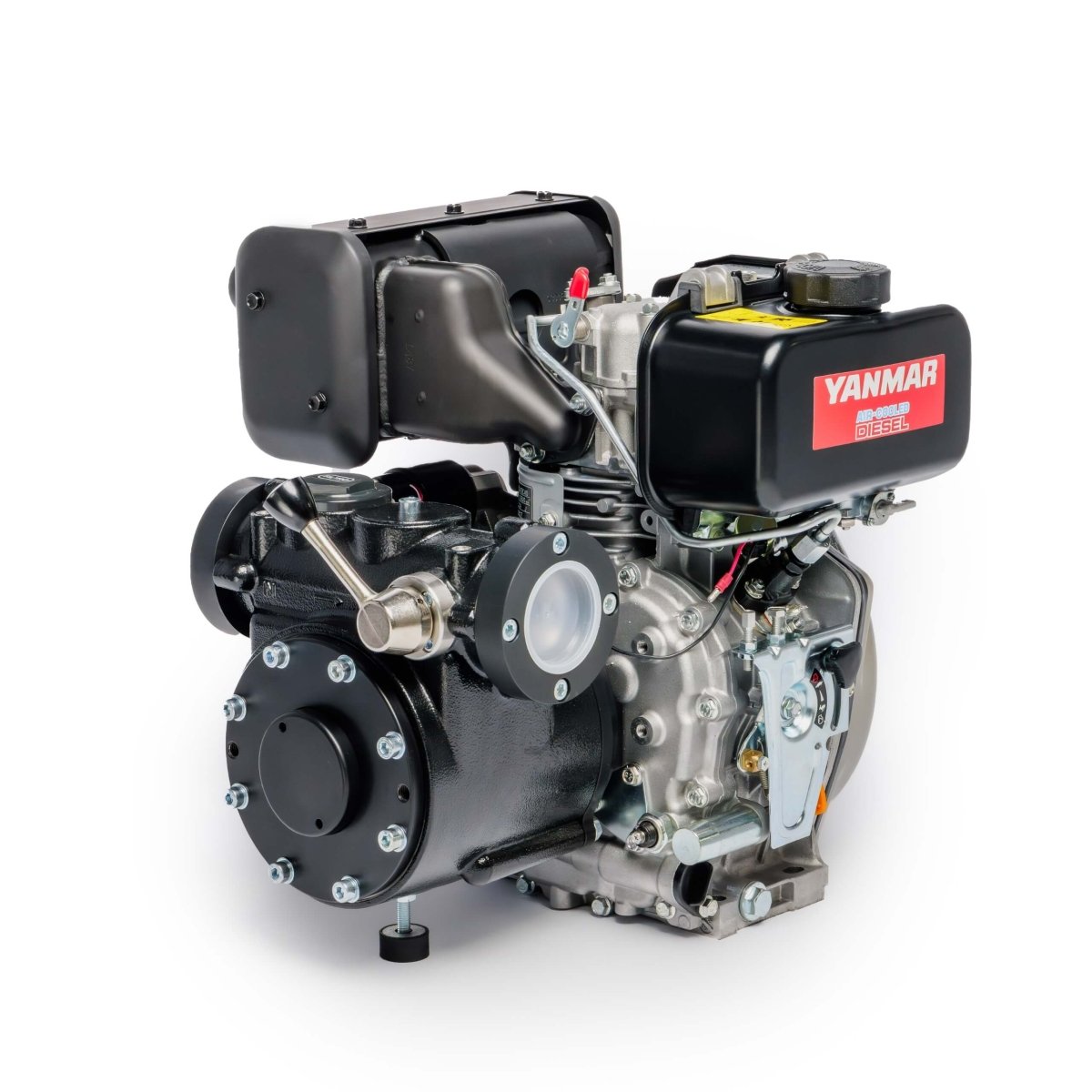

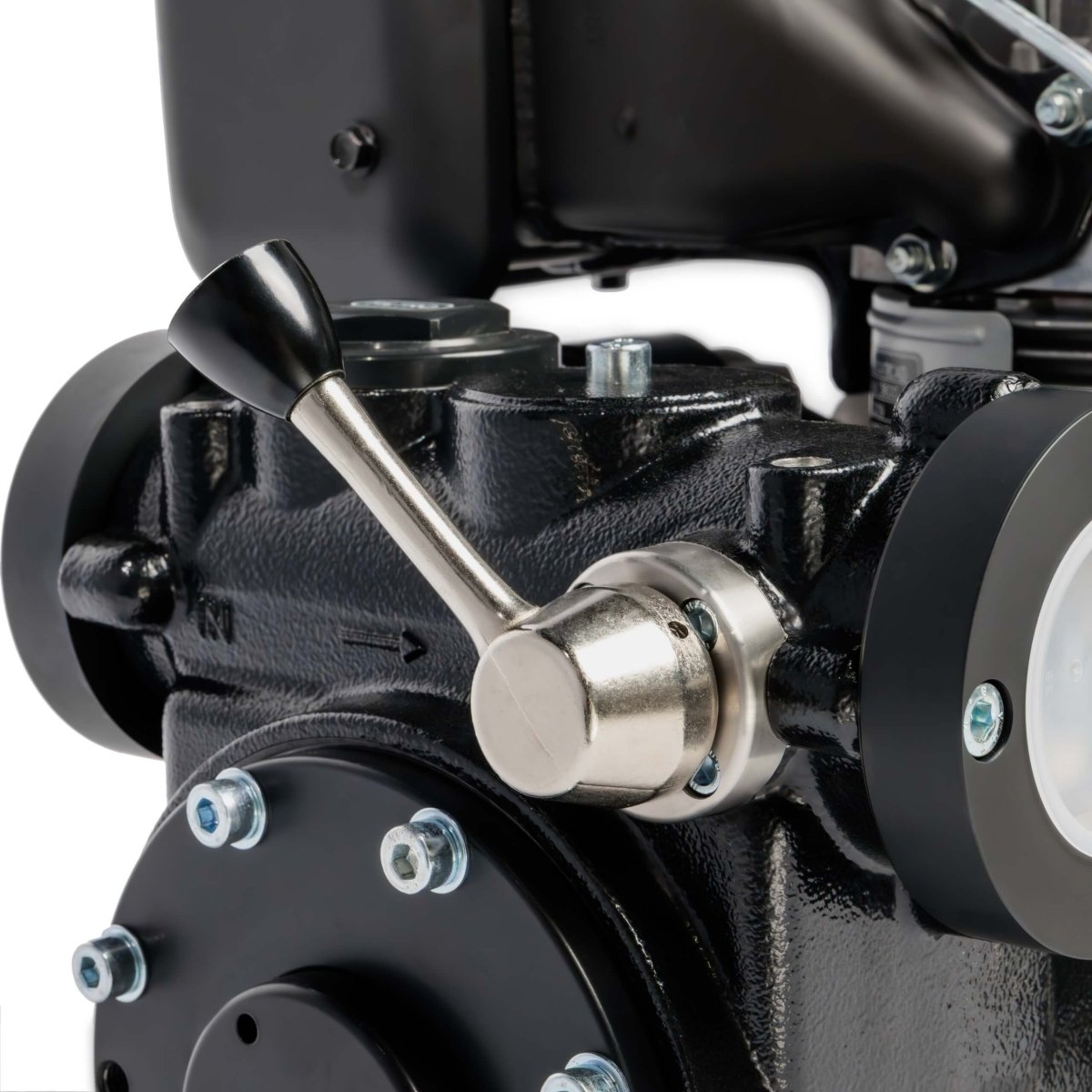

No power, no problem.  The GO Fill DMTP0012 Electric Start, Diesel Powered, Positive Displace Vane Pump provides a true stand alone, heavy duty diesel dispensing solution.  An ever reliable Yanmar L48N Engine has been coupled with an Italian made Positive Displacement Vane Pump to provide a fully engineered diesel fuel dispensing package suitable for use with GO Self Bunded Tanks, GO Self Bunded Fuel Trailers or to retro fit to your existing site infrastructure.

Data Sheet
GO Data Sheet Pump 240lpm DMTP0012
Manual - Engine
YANMAR L48N WORKSHOP MANUAL

• Flow Rate (1 bar): 240 lpm
• Max Pressure: 2.5 Bar
• IN:  DN50 (2") BSP F
• OUT: DN50 (2") BSP F
• Flange IN-OUT: Yes
• Suction: 2.5 mt
• Engine Rotation: 3600 rpm
• Power: 3550watt (4.7hp)
• Seal: 6 bar Mechanical Seal
• Valve Start Eased: Included
• Battery: not included - 12V 45A
• Compatible Liquids: Diesel and Low Viscosity Lubricants
• Product Dimensions: 45cm L x 37.5cm W x 37cm H
• Packaging Dimensions: 58cm L x 68cm W x 63cm H
• Weight: 59 kg

• High Flow: DN50 (2") Inlet and Outlet providing a consistent 240lpm flow rate
• Made in Italy Quality
• Portability: It is a portable solution as it doesn't require an external power source.
• Self-Priming: The Pump automatically draws fuel without manual priming.
• Pump Seal: The pump is equipped with a 6 bar mechanical seal.  This high-quality seal prevents leaks and ensures a long service life.
• Inlet Strainer: 130µm inlet strainer, which helps to remove impurities from the fuel, protecting the pump's internal components from damage and ensuring clean fuel transfer
• Robust Design: Built for durability in challenging environments.
• Yanmar Quality: Electric Start genuine Yanmar L48N Diesel Driven Engine
• Balanced Cylinders: The engine has balanced cylinders, which helps to reduce vibration during operation. This contributes to a smoother and quieter running pump.
• Motion Transmission: It uses a supported crankshaft for motion transmission, which contributes to its durability and stable operation.
