GRACO XD40 Bare Hose Reels
Regular price
From $3,220.00 AUD
Sale price
From $3,220.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Features

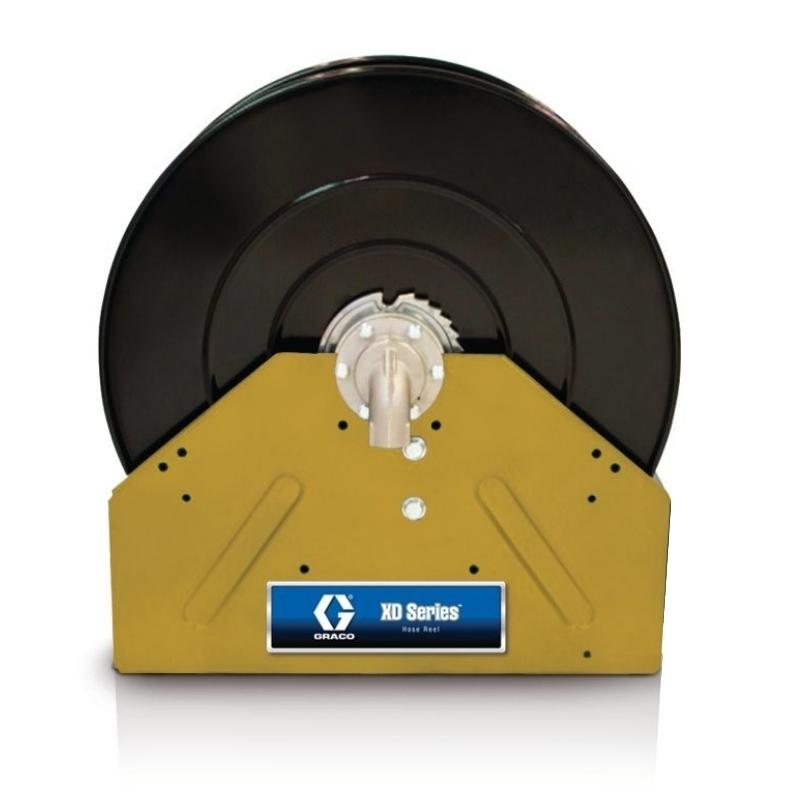

Graco XD40 Bare Hose Reels
Overview
Graco’s XD40 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
- Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
- Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
Specifications
| Technical Specifications | SKU 24P315 | SKU 24P322 |
| COLOR | Yellow | Yellow |
| DRY WEIGHT (LB) | 116 | 125 |
| HOSE INSIDE DIAMETER (IN) | 1 | 1 |
| HOSE INSIDE DIAMETER (MM) | 25.4 | 25.4 |
| HOSE LENGTH (FT) | 50 | 50 |
| HOSE LENGTH (M) | 15 | 15 |
| INLET SIZE (IN) | 1 | 1 |
| INLET SIZE (MM) | 25.4 | 25.4 |
| INLET THREAD TYPE | NPT | NPT |
| MAXIMUM WORKING PRESSURE (PSI) | 600 | 2000 |
| OUTLET SIZE (IN) | 1 | 1 |
| OUTLET SIZE (MM) | 25.4 | 25.4 |
| OVERALL HEIGHT (IN) | 26.13 | 26.13 |
| OVERALL HEIGHT (MM) | 664 | 664 |
| OVERALL LENGTH (IN) | 26.4 | 26.4 |
| OVERALL LENGTH (MM) | 671 | 671 |
| OVERALL WIDTH (IN) | 16.54 | 16.54 |
| OVERALL WIDTH (MM) | 420 | 420 |
| SERIES | 40 | 40 |
| WETTED PARTS | Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber | Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber |
| APPLICATION | Air, Water | Oil |
| TYPE | Spring-Rewind Reel | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor | Indoor, Outdoor |
| FRAME TYPE | Box Frame | Box Frame |
| BARE REEL | 1 | 1 |
| REEL THREAD TYPE | NPT | NPT |
| RECOMMENDED FLUID TYPE | Air, Water | Oil |
| HOSE REEL TYPE | Bare Reel | Bare Reel |
| MODEL | XD | XD |
| Technical Specifications | SKU 24P325 | SKU 24P318 |
| COLOR | Yellow | Yellow |
| DRY WEIGHT (LB) | 152 | 125 |
| HOSE INSIDE DIAMETER (IN) | 3/4 | 1 |
| HOSE INSIDE DIAMETER (MM) | 19.05 | 25.4 |
| HOSE LENGTH (FT) | 100 | 50 |
| HOSE LENGTH (M) | 30 | 15 |
| INLET SIZE (IN) | 1 | 1 |
| INLET SIZE (MM) | 25.4 | 25.4 |
| INLET THREAD TYPE | NPT | NPT |
| MAXIMUM WORKING PRESSURE (PSI) | 2000 | 600 |
| OUTLET SIZE (IN) | 1 | 1 |
| OUTLET SIZE (MM) | 25.4 | 25.4 |
| OVERALL HEIGHT (IN) | 26.13 | 26.13 |
| OVERALL HEIGHT (MM) | 664 | 664 |
| OVERALL LENGTH (IN) | 26.4 | 26.4 |
| OVERALL LENGTH (MM) | 671 | 671 |
| OVERALL WIDTH (IN) | 17.47 | 16.54 |
| OVERALL WIDTH (MM) | 444 | 420 |
| SERIES | 40 | 40 |
| WETTED PARTS | Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber | Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber |
| APPLICATION | Oil | Air, Water, Diesel Fuel, WOE |
| TYPE | Spring-Rewind Reel | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor | Indoor, Outdoor |
| FRAME TYPE | Box Frame | Box Frame |
| BARE REEL | 1 | 1 |
| REEL THREAD TYPE | NPT | NPT |
| RECOMMENDED FLUID TYPE | Oil | Air, Water, Diesel Fuel, WOE |
| HOSE REEL TYPE | Bare Reel | Bare Reel |
| MODEL | XD | XD |
