GRACO LDP5 Electronic Preset Meter Flexible Extension 1/2
  • GRACO LDP5 Electronic Preset Meter Flexible Extension 1/2" Inlet - GO Industrial - 258694
1 1

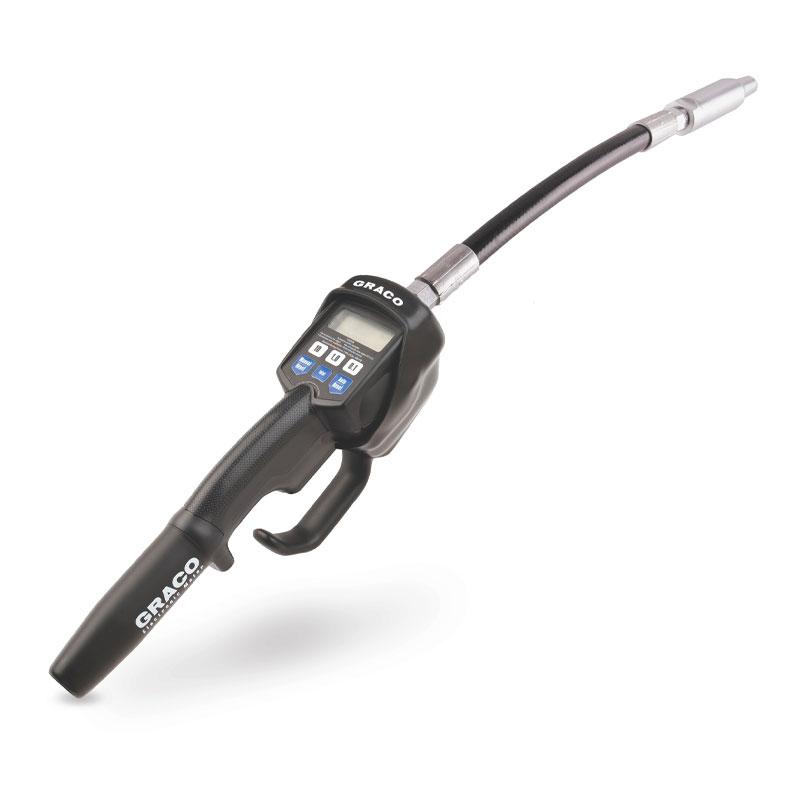

GRACO LDP5 Electronic Preset Meter Flexible Extension 1/2" Inlet

SKU: 258694

GRACO LDP5 Electronic Preset Meter Flexible Extension 1/2" Inlet

$1,316.00 AUD
$1,316.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

View full details
GRACO LDP5 Electronic Preset Meter Flexible Extension 1/2

GRACO LDP5 Electronic Preset Meter Flexible Extension 1/2" Inlet

$1,316.00 AUD
$1,316.00 AUD
Save $0
Sold out

Features

  • Easy to read LCD screen keeps dispenses precise.
  • Inlet 1/2 in. NPT with swivel.
  • Rugged meter body is impact resistant for long life.
  • Ergonomically-design, comfortable handle with two-finger trigger.
  • Preset meter automatically shuts-off flow when preset quantity has been dispensed.
  • 5 year warranty. See manufacturers website for details.

    • Graco LDP5 Electronic Preset Meter Flexible Extension 1/2" Inlet

    Overview

    Graco's LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centres and automotive dealerships. These meters are capable of metering petroleum, synthetic based oil and anti-freeze up to 5 gpm (19 lpm).

    Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centres, Fleet service facilities, Service shops, and In-plant.

    Trigger Guard and Swivel Cover Included - NPT

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • LDP5 Electronic Preset Meter - Flexible Extension - 1 2 Inlet

    Specifications

    APPROVALS CE
    COMPATIBLE MATERIAL Oil, Antifreeze
    DISPENSE TYPE Preset
    DISPLAY TYPE Electronic
    EXTENSION TYPE Flexible
    FLUID INLET THREAD GENDER Female
    FLUID OUTLET THREAD GENDER Female
    INCLUDES Nozzle, Extension, Trigger Guard, Swivel Cover
    INLET SIZE (CM) 1.27
    INLET SIZE (IN) 1/2
    INLET SIZE (MM) 12.7
    INLET THREAD TYPE NPT
    MAXIMUM OPERATING TEMPERATURE (°C) 49
    MAXIMUM OPERATING TEMPERATURE (°F) 120
    MAXIMUM STORAGE TEMPERATURE (°F) 120
    MAXIMUM STORAGE TEMPERATURE (°C) 49
    MAXIMUM WORKING PRESSURE (PSI) 1000
    MAXIMUM WORKING PRESSURE (KPA) 6900
    MAXIMUM WORKING PRESSURE (BAR) 69
    METER ACCURACY (%) ±0.5
    OVERALL HEIGHT (CM) 8.3
    OVERALL HEIGHT (IN) 3.25
    OVERALL HEIGHT (MM) 83
    OVERALL LENGTH (CM) 28
    OVERALL LENGTH (IN) 11
    OVERALL LENGTH (MM) 280
    OVERALL WIDTH (CM) 8.3
    OVERALL WIDTH (IN) 3.25
    OVERALL WIDTH (MM) 83
    METER TECHNOLOGY Oval Gear
    METERING GUN WEIGHT (LB) 3
    METERING GUN WEIGHT (KG) 1.36
    WETTED MATERIAL Stainless Steel, Nitrile Rubber, Zinc, CS, LCP
    WARRANTY 5 years Structural Components, 2 years Electronics, 1 year Wear Parts
    UNIT OF MEASURE Pint, Quart, Gallon, Liter
    TRIGGER PROTECTION TYPE Guard
    TRIGGER LOCK Locking
    RECOMMENDED ENVIRONMENT Indoor
    OUTLET THREAD TYPE NPT
    OUTLET SIZE (CM) 0.9525
    OUTLET SIZE (MM) 9.525
    OUTLET SIZE (IN) 3/8
    NOZZLE TYPE Automatic
    MINIMUM OPERATING TEMPERATURE (°F) 32
    MINIMUM OPERATING TEMPERATURE (°C) 0
    TYPE Electronic Metered Dispense Valve
    VALVE TYPE Metered
    MAXIMUM WORKING PRESSURE (MPA) 6.9
    MODEL LDP5

      Features

    • Easy to read LCD screen keeps dispenses precise.
    • Inlet 1/2 in. NPT with swivel.
    • Rugged meter body is impact resistant for long life.
    • Ergonomically-design, comfortable handle with two-finger trigger.
    • Preset meter automatically shuts-off flow when preset quantity has been dispensed.
    • 5 year warranty. See manufacturers website for details.
