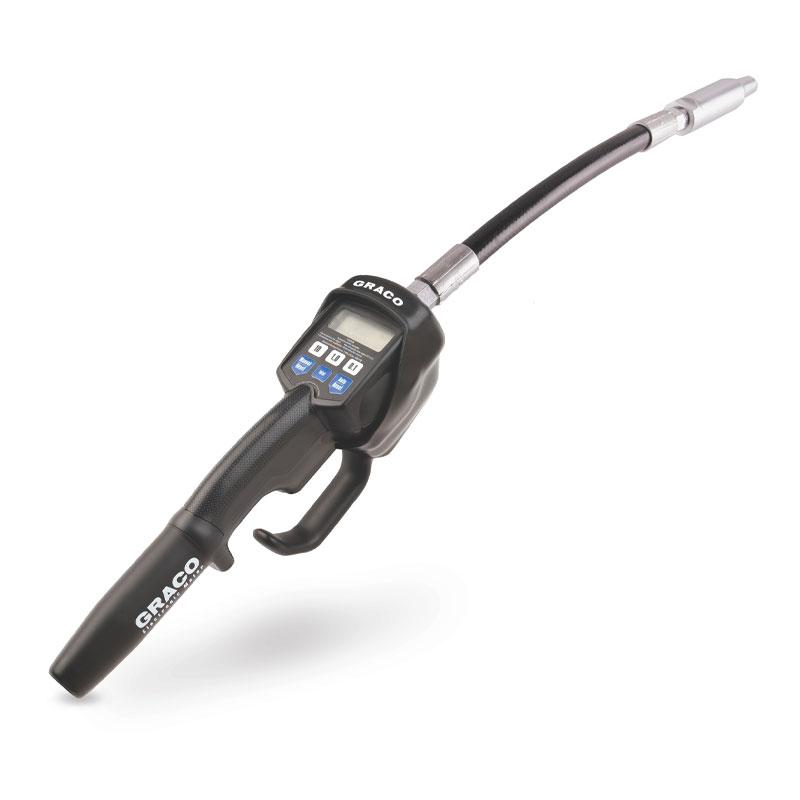

GRACO LDP5 Electronic Preset Meter Flexible Extension 1/2" Inlet
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Graco's LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centres and automotive dealerships. These meters are capable of metering petroleum, synthetic based oil and anti-freeze up to 5 gpm (19 lpm).
Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centres, Fleet service facilities, Service shops, and In-plant.
Trigger Guard and Swivel Cover Included - NPT
Features
- Preset Dispensing: Set the quantity and the meter shuts flow off by itself once it has been delivered.
- Easy-Read LCD: A clear LCD keeps each dispense precise without squinting into the display.
- Rugged Meter Body: An impact-resistant body built to survive being dropped on a workshop floor.
- Comfortable Two-Finger Trigger: An ergonomic handle and two-finger trigger that stays workable across a full shift.
- Swivel Inlet: A 1/2 in NPT inlet with swivel so the hose does not wind up as the gun moves.
- Five-Year Warranty: Backed by a five-year warranty on structural components.
Specifications
| APPROVALS | CE |
|---|---|
| COMPATIBLE MATERIAL | Oil, Anti-freeze |
| DISPENSE TYPE | Preset |
| DISPLAY TYPE | Electronic |
| EXTENSION TYPE | Flexible |
| FLUID INLET THREAD GENDER | Female |
| FLUID OUTLET THREAD GENDER | Female |
| INCLUDES | Nozzle, Extension, Trigger Guard, Swivel Cover |
| INLET SIZE | 12.7 MM | 1/2 IN |
| INLET THREAD TYPE | NPT |
| MAXIMUM OPERATING TEMPERATURE | 49 C | 120 F |
| MAXIMUM STORAGE TEMPERATURE | 49 C | 120 F |
| MAXIMUM WORKING PRESSURE | 69 BAR | 1000 PSI |
| METER ACCURACY | ±0.5% |
| OVERALL HEIGHT | 83 MM | 3.25 IN |
| OVERALL LENGTH | 280 MM | 11 IN |
| OVERALL WIDTH | 83 MM | 3.25 IN |
| METER TECHNOLOGY | Oval Gear |
| METERING GUN WEIGHT | 1.36 KG | 3 LB |
| WETTED MATERIAL | Stainless Steel, Nitrile Rubber, Zinc, CS, LCP |
| WARRANTY | 5 years Structural Components, 2 years Electronics, 1 year Wear Parts |
| UNIT OF MEASURE | Pint, Quart, Gallon, Litre |
| TRIGGER PROTECTION TYPE | Guard |
| TRIGGER LOCK | Locking |
| RECOMMENDED ENVIRONMENT | Indoor |
| OUTLET THREAD TYPE | NPT |
| OUTLET SIZE | 9.525 MM | 3/8 IN |
| NOZZLE TYPE | Automatic |
| MINIMUM OPERATING TEMPERATURE | 0 C | 32 F |
| TYPE | Electronic Metered Dispense Valve |
| VALVE TYPE | Metered |
| MODEL | LDP5 |
