Graco LD Pump 5:1 Air Driven Cart Kit Range
Graco LD Pump 5:1 Air Driven Cart Kit Range
Graco LD Pump 3:1 Air Driven Range
Skip to product information
1 of 4

Only Graco can give you the field-proven performance found in the famous FireBall® pump for a solution that works as hard as you. Fast repairs, flexible configuration, industry leading warranty, and so many other field proven features are built-in—all at a competitive price.

Pilot Valve

  • Patent-pending self cleaning design increases reliability in dirty air environments and minimises pressure drop with rapid changeovers for reduced stalling and smoother flow.

5 Year Warranty

  • Industry leading Graco factory 5 year warranty

Three Inch Air Motor

  • Provides more power to create better flow.

Adjustable Bung Adapter Included

  • Built-in slide adjustment with easy-set hand screws is easier to fit into more applications.

Engineered for Durability

  • Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

NXT Air Valve

  • Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.

Modular Air Valve

  • Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.

Built-In Thermal Relief and Inlet Strainer

  • Built-in thermal relief (oil only) protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
  • GO Data Sheet Graco LD Range
  • GO Manual Graco LD Range
  • GO Manual Graco LD Oil Repair

LD Series Oil Pump

Maximum Fluid Working Pressure

51.7 bar, 5.17 MPa

Fluid Pressure Ratio

3:1 or 5:1

Suction Lift (feet of oil)

10

Air Operation Range

1.37 to 10.3 bar, 0.137 to 1.03 MPa

Recommended Air Pressure for Optimum Pump Life

8.6 bar, 0.86 MPa

Air Consumption (at 100 psi)

See Performance Curves in instruction manual 3A1334

Cycles per gallon (liter)

3:1 – 7 cycles/l, 5:1 – 10 cycles/l

Maximum Recommended Pump Speed

3:1 – 120 cycles/min, 5:1 – 180 cycles/min

Recommended Speed for Optimum Pump Life

75 cycles/min and lower, 3:1 – 9.8 l/min, 5:1– 7.6 l/min

Wetted parts

zinc plated carbon, steel, aluminum, nitrile, polyurethane, nickel plated aluminum

Sound Pressure Level, calculated at a distance of 1 meter from measurements taken per ISO 9614–2 @ 100 psi air pressure (6.89 bar, 0.68 MPa) and 20 cycles per minutes. Muffler 112933 can be ordered separately for reduced sound levels.

72.9 dB(a)

Sound Power Level, measured per ISO 9614–2 at 100 psi air pressure (6.89 bar, 0.68 MPa) and 20 cycles per minute. Muffler 112933 can be ordered separately for reduced sound levels.

82.0 dB(a)

Performance Curve

See charts in instruction manual 3A1334

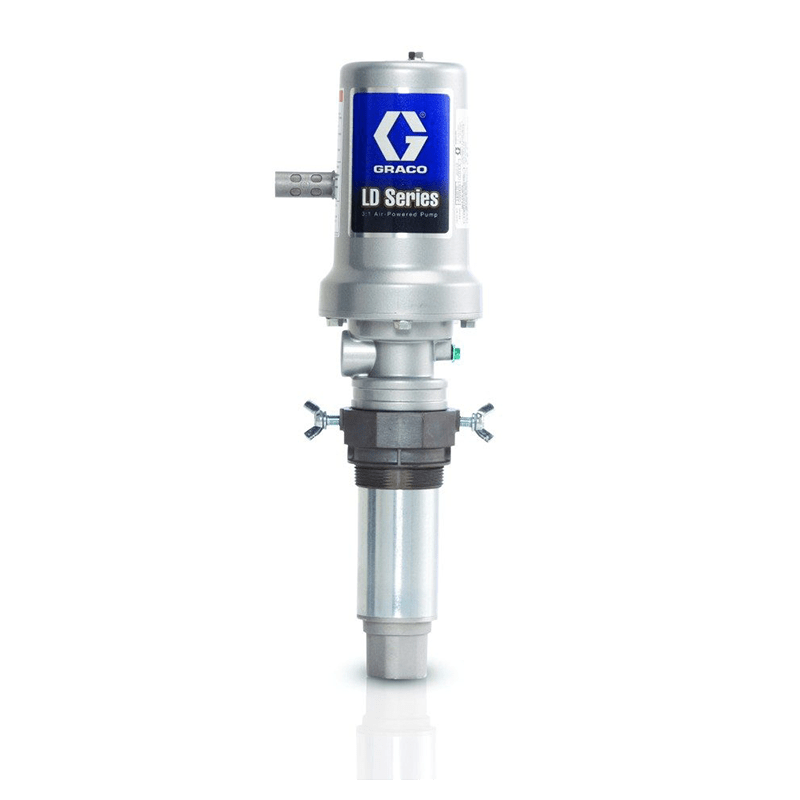

        Graco LD Pump 5:1 Air Driven Cart Kit Range

        SKU: 24H923

        Graco LD Pump 5:1 Air Driven Cart Kit Range

        Regular price $2,640.00 AUD
        Sale price $2,640.00 AUD Regular price
        Save $0
        Sold out
        Inclusive of GST. Shipping calculated at checkout.
        Size

        Other payment options

        The Basics

        Discover the Value of Graco LDSeries Pumps.  Stay ahead of the competition with the latest product solution from Graco Lubrication—the LD Series Pump.

        The affordable and full featured LD is designed for lower volume applications and is available in 3:1 and 5:1 for oil and 50:1 for grease. These pumps are fine-tuned for a compact, flexible and still incredibly durable solution.

        Kits Include:

        Model Pump Meter Reel Other
        24H923 5:1

        24G596

        LDM5 Flex Meter

        (24F881)

        1/2" x 11m

        24F796

        Fluid oil hose kit (24J497),

        Cart (24F915)

        24H924

        5:1

        24G596

        LDM5 Rigid Meter

        (24F882)

        1/2" x 11m

        24F796

        Fluid oil hose kit (24J497),

        Cart (24F915)







              Only Graco can give you the field-proven performance found in the famous FireBall® pump for a solution that works as hard as you. Fast repairs, flexible configuration, industry leading warranty, and so many other field proven features are built-in—all at a competitive price.

              Pilot Valve

              • Patent-pending self cleaning design increases reliability in dirty air environments and minimises pressure drop with rapid changeovers for reduced stalling and smoother flow.

              5 Year Warranty

              • Industry leading Graco factory 5 year warranty

              Three Inch Air Motor

              • Provides more power to create better flow.

              Adjustable Bung Adapter Included

              • Built-in slide adjustment with easy-set hand screws is easier to fit into more applications.

              Engineered for Durability

              • Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

              NXT Air Valve

              • Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.

              Modular Air Valve

              • Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.

              Built-In Thermal Relief and Inlet Strainer

              • Built-in thermal relief (oil only) protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
              • GO Data Sheet Graco LD Range
              • GO Manual Graco LD Range
              • GO Manual Graco LD Oil Repair

              LD Series Oil Pump

              Maximum Fluid Working Pressure

              51.7 bar, 5.17 MPa

              Fluid Pressure Ratio

              3:1 or 5:1

              Suction Lift (feet of oil)

              10

              Air Operation Range

              1.37 to 10.3 bar, 0.137 to 1.03 MPa

              Recommended Air Pressure for Optimum Pump Life

              8.6 bar, 0.86 MPa

              Air Consumption (at 100 psi)

              See Performance Curves in instruction manual 3A1334

              Cycles per gallon (liter)

              3:1 – 7 cycles/l, 5:1 – 10 cycles/l

              Maximum Recommended Pump Speed

              3:1 – 120 cycles/min, 5:1 – 180 cycles/min

              Recommended Speed for Optimum Pump Life

              75 cycles/min and lower, 3:1 – 9.8 l/min, 5:1– 7.6 l/min

              Wetted parts

              zinc plated carbon, steel, aluminum, nitrile, polyurethane, nickel plated aluminum

              Sound Pressure Level, calculated at a distance of 1 meter from measurements taken per ISO 9614–2 @ 100 psi air pressure (6.89 bar, 0.68 MPa) and 20 cycles per minutes. Muffler 112933 can be ordered separately for reduced sound levels.

              72.9 dB(a)

              Sound Power Level, measured per ISO 9614–2 at 100 psi air pressure (6.89 bar, 0.68 MPa) and 20 cycles per minute. Muffler 112933 can be ordered separately for reduced sound levels.

              82.0 dB(a)

              Performance Curve

              See charts in instruction manual 3A1334
