GO Double Solenoid Valve 1/8
  • GO Double Solenoid Valve 1/8" to 1/2" A610 5 Way 2 Position Range
1 1



Aluminium 5 way 2 position differential solenoid/solenoid valve.G1/8", 5mm orifice, 304 SS operator, copper shading ring, NBR seat, man o/ride.1.5-8 BAR pressure range, media temp 5°C to 80°C.Coil Class F insulation, 4.8 Watts, IP65 protection.

Model Port Size (BSP) Orifice ømm CV Pressure Media Temperature Weight Kg Coil Specifications
A610-1-5-*NM 1/8 5 0.67 1.5 to 8 Bar 5°C to 80°C 0.3 SC-A1
5 Watts
6 Volt Amps
Class H Insulation
100% Ed
A610-2-7-*NM 1/4 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
A610-3-7-*NM 3/8 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
A610-4-8-*NM 1/2 8 2.8 1.5 to 8 Bar 5°C to 80°C 0.6



  • Size 1/8" to 1/2" BSP
  • Function 5 way 2 position double solenoid with manual override
  • Valve Operation Servo Assisted
  • Body Aluminium
  • Seat NBR
  • Pressure Range 1.5 to 8 BAR
  • Media Air

    •

      pagination here

    GO Double Solenoid Valve 1/8" to 1/2" A610 5 Way 2 Position Range

    SKU: A610-1-5

    GO Double Solenoid Valve 1/8" to 1/2" A610 5 Way 2 Position Range

    $171.00 AUD
    $171.00 AUD
    Save $0
    Sold out
    Inclusive of GST. Shipping calculated at checkout.
    Size
    Orifice

    Other payment options

    The Basics

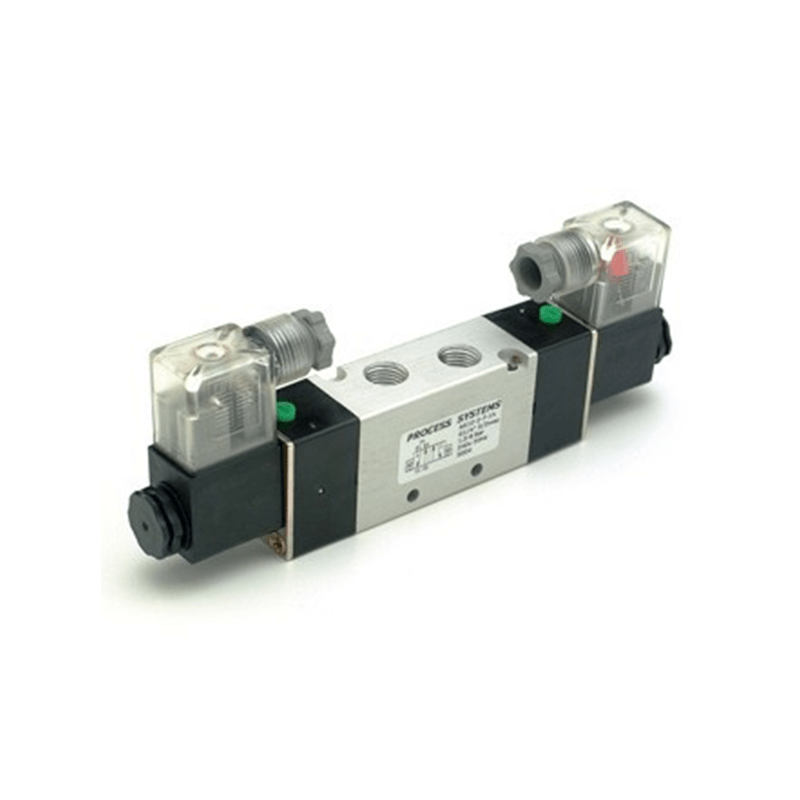

    5 way 2 position solenoid valve (solenoid both ends) suitable for use in controlling air actuators or cylinders. Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil. Can be mounted on manifolds of up to 12 stations.









                  Aluminium 5 way 2 position differential solenoid/solenoid valve.G1/8", 5mm orifice, 304 SS operator, copper shading ring, NBR seat, man o/ride.1.5-8 BAR pressure range, media temp 5°C to 80°C.Coil Class F insulation, 4.8 Watts, IP65 protection.

                  Model Port Size (BSP) Orifice ømm CV Pressure Media Temperature Weight Kg Coil Specifications
                  A610-1-5-*NM 1/8 5 0.67 1.5 to 8 Bar 5°C to 80°C 0.3 SC-A1
                  5 Watts
                  6 Volt Amps
                  Class H Insulation
                  100% Ed
                  A610-2-7-*NM 1/4 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
                  A610-3-7-*NM 3/8 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
                  A610-4-8-*NM 1/2 8 2.8 1.5 to 8 Bar 5°C to 80°C 0.6



                • Size 1/8" to 1/2" BSP
                • Function 5 way 2 position double solenoid with manual override
                • Valve Operation Servo Assisted
                • Body Aluminium
                • Seat NBR
                • Pressure Range 1.5 to 8 BAR
                • Media Air

                  •
