GO A610 5 Way 2 Position Double Solenoid Valves

Overview

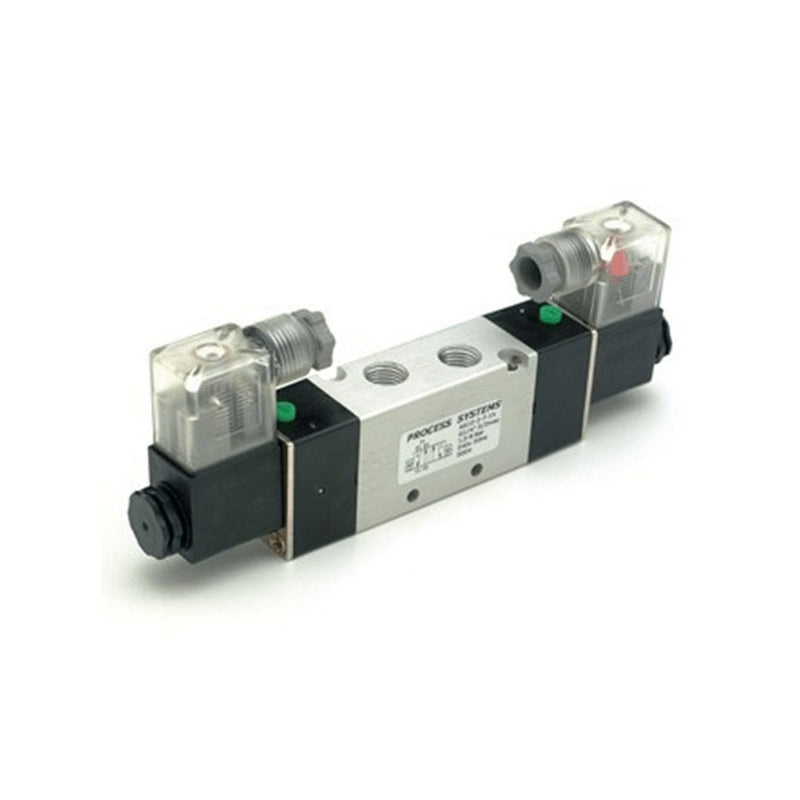

5 way 2 position solenoid valve (solenoid both ends) suitable for use in controlling air actuators or cylinders. Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil. Can be mounted on manifolds of up to 12 stations.

                Specifications

                Aluminium 5 way 2 position differential solenoid/solenoid valve.G1/8", 5mm orifice, 304 SS operator, copper shading ring, NBR seat, man o/ride.1.5-8 BAR pressure range, media temp 5°C to 80°C.Coil Class F insulation, 4.8 Watts, IP65 protection.

              • Size 1/8" to 1/2" BSP
              • Function 5 way 2 position double solenoid with manual override
              • Valve Operation Servo Assisted
              • Body Aluminium
              • Seat NBR
              • Pressure Range 1.5 to 8 BAR
              • Media Air
                • Model Port Size (BSP) Orifice ømm CV Pressure Media Temperature Weight Kg Coil Specifications
                A610-1-5-*NM 1/8 5 0.67 1.5 to 8 Bar 5°C to 80°C 0.3 SC-A1
                5 Watts
                6 Volt Amps
                Class H Insulation
                100% Ed
                A610-2-7-*NM 1/4 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
                A610-3-7-*NM 3/8 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
                A610-4-8-*NM 1/2 8 2.8 1.5 to 8 Bar 5°C to 80°C 0.6
