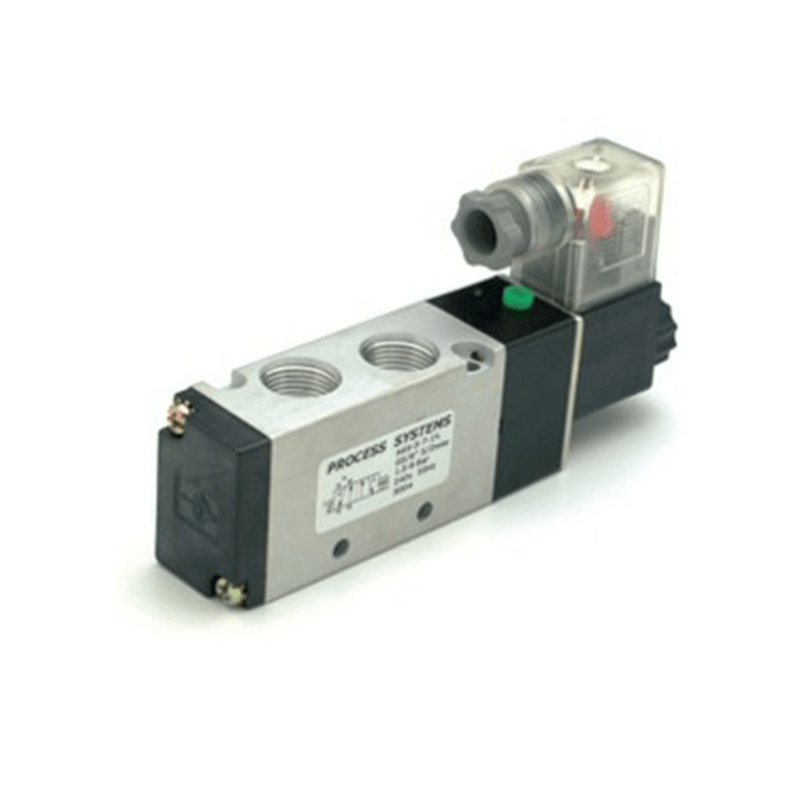

GO A69 5 Way 2 Position Solenoid Spring Valve

SKU: A69-1-5-7N

GO A69 5 Way 2 Position Solenoid Spring Valve

$93.50 AUD
$93.50 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size
Orifice

Other payment options

View full details
GO A69 5 Way 2 Position Solenoid Spring Valve - GO Industrial - A69 - 1 - 5 - 7N

GO A69 5 Way 2 Position Solenoid Spring Valve

From $93.50 AUD
From $93.50 AUD
Save $0
Sold out

GO A69 5 Way 2 Position Solenoid Spring Valve

Overview

5 way 2 position solenoid valve (solenoid one end and spring on the other) suitable for use in controlling air actuators or cylinders. Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil. This unit can also be mounted on a manifold of up to 12 units.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

Aluminium 5 way 2 position differential solenoid/spring valve.G1/8", 5mm orifice, 304 SS operator, copper shading ring, NBR seat, man o/ride.1.5-8 BAR pressure range, media temp 5°C to 80°C.Coil Class F insulation, 4.8 Watts, IP65 protection.

  • Size 1/8" to 1/2" BSP
  • Function 5 way 2 position solenoid/spring with manual override
  • Valve Operation Servo Assisted
  • Body Aluminium
  • Seat NBR
  • Pressure Range 1.5 to 8 BAR
  • Media Air
    • Model Port Size (BSP) Orifice ømm CV Pressure Media Temperature Weight Kg Coil Specifications
    A69-1-5-*NM 1/8 5 0.67 1.5 to 8 Bar 5°C to 80°C 0.3 SC-A1
    5 Watts
    6 Volt Amps
    Class H Insulation
    100% Ed
    A69-2-7-*NM 1/4 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
    A69-3-7-*NM 3/8 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
    A69-4-8-*NM 1/2 8 2.8 1.5 to 8 Bar 5°C to 80°C 0.6
