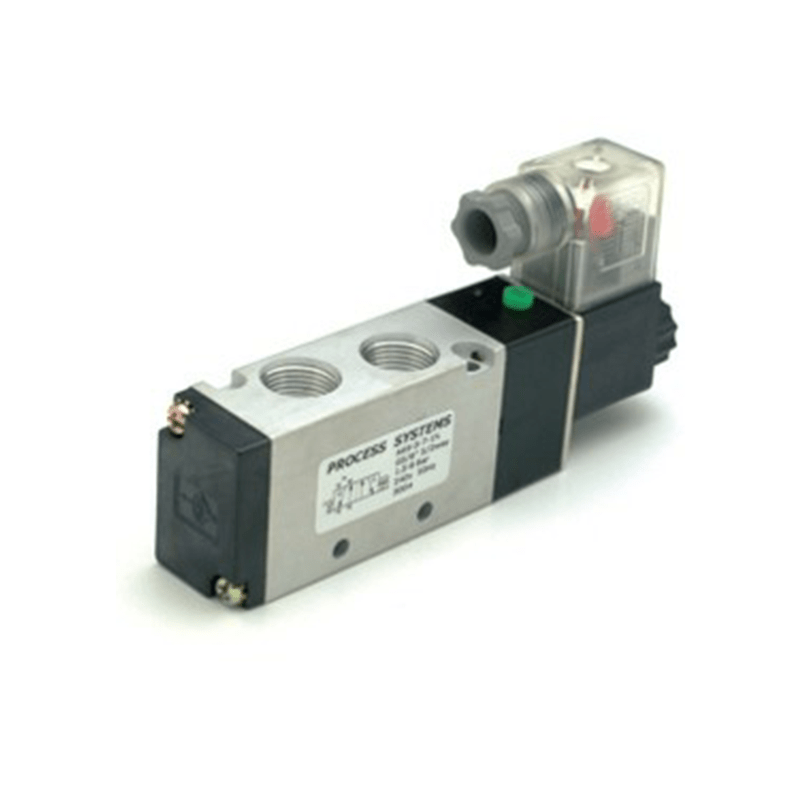

GO Solenoid Spring Valve 1/8" to 1/2" A69 5 Way 2 Position

SKU: A69-1-5

$94

GO Solenoid Spring Valve 1/8" to 1/2" A69 5 Way 2 Position

5 way 2 position solenoid valve (solenoid one end and spring on the other) suitable for use in controlling air actuators or cylinders. Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil. This unit can also be mounted on a manifold of up to 12 units.

  • Size 1/8" to 1/2" BSP
  • Function 5 way 2 position solenoid/spring with manual override
  • Valve Operation Servo Assisted
  • Body Aluminium
  • Seat NBR
  • Pressure Range 1.5 to 8 BAR
  • Media Air

              Aluminium 5 way 2 position differential solenoid/spring valve.G1/8", 5mm orifice, 304 SS operator, copper shading ring, NBR seat, man o/ride.1.5-8 BAR pressure range, media temp 5°C to 80°C.Coil Class F insulation, 4.8 Watts, IP65 protection.

              Model Port Size (BSP) Orifice ømm CV Pressure Media Temperature Weight Kg Coil Specifications
              A69-1-5-*NM 1/8 5 0.67 1.5 to 8 Bar 5°C to 80°C 0.3 SC-A1
              5 Watts
              6 Volt Amps
              Class H Insulation
              100% Ed
              A69-2-7-*NM 1/4 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
              A69-3-7-*NM 3/8 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
              A69-4-8-*NM 1/2 8 2.8 1.5 to 8 Bar 5°C to 80°C 0.6
