ATLAS COPCO PAS4-KDS3A Centrifugal Pump

SKU: PAS4-KDS3A

ATLAS COPCO PAS4-KDS3A Centrifugal Pump

Inclusive of GST. Shipping calculated at checkout.
stock
Available for pre-order only. Delivery lead time to be confirmed.

Other payment options

View full details
Altas Copco PAS4-KDS3A Dry-Prime Diesel Driven Pump

ATLAS COPCO PAS4-KDS3A Centrifugal Pump

Features

Pump System

  • High performance pump with superior BEP’s − best efficiency points
  • High abrasion-resistant ductile cast iron impeller − excellent compromise between impact resistance and surface hardness
  • Semi-open impeller allowing free passage of large diameter solids
  • Removable front cover for direct access to the wear plates and impeller for easy servicing
  • Mechanical seal with oil bath reservoir for dry running capabilities
  • Automatic priming with oil free diaphragm vacuum pump that draws significant quantities of air allowing drainage

Engine System

  • Durable power with broad range of operating speed to set optimal performance and efficiency
  • High capacity cooler guarantees continuous operation even at high ambient conditions enabling longer servicing at 500 hours

Frame and Enclosure

  • Sound-attenuated & rugged galvasteel enclosure
  • Big doors & service panels for superior accessibility
  • Spillage free frame (integrated forklift pockets, 110% containment)
  • Rigid lifting beam with eye in the centre of gravity

Control System Control Functions

  • Start/stop • Auto mode (float switch regulation)
  • Emergency stop
  • Manual speed regulation Indications
  • Running hours
  • Engine speed
  • Battery charge voltage
  • Fault icons (warnings & shutdowns)
  • Vacuum pressure gauge
  • Fuel level gauge

Atlas Copco PAS4-KDS3A Centrifugal Pump

Overview

Suitable for a wide range of applications, the PAS range is best suited for transporting or lifting water with abrasive solids in suspension. This includes applications such as: construction and mine site dewatering, floodwater, stream diversions and municipal applications. Delivering fast dewatering solutions to sites where a power source is not available.

The dry prime units offer high performance and efficiency to ensure predictable and timely job completion with minimal operating expenses. The pump’s superior duty points allow more flow and higher pressure delivery with lower power consumption.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • Altas Copco PAS4-KDS3A Centrifugal Pump

Specifications

Model

 PAS4-KDS3A
Maximum Capacity m3/h 240
Max. head m.w.c. 33
Solids handling mmø / inch ø 45/1.77

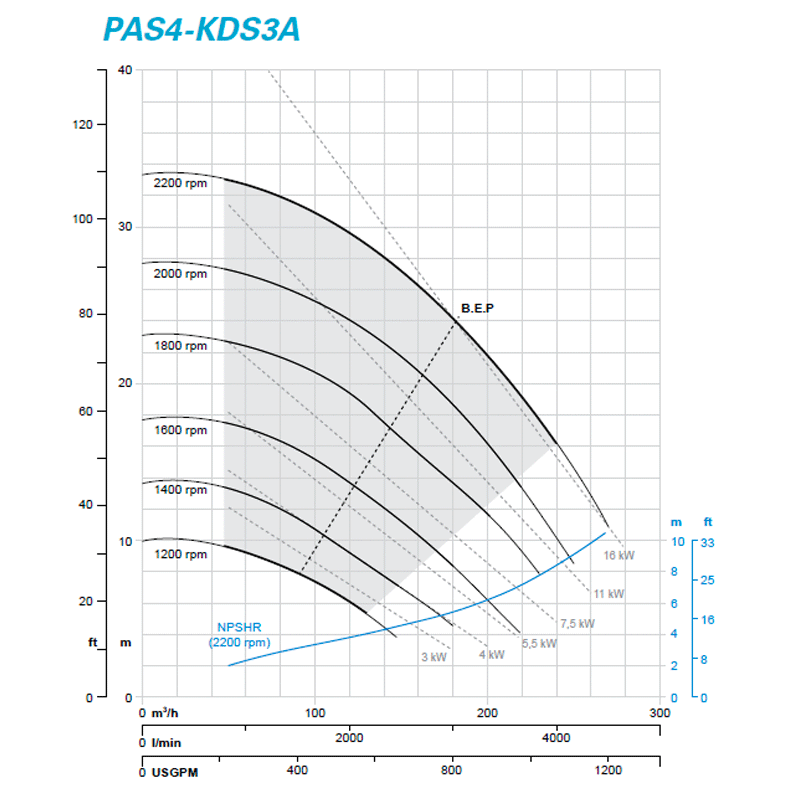

Best efficiency point (B.E.P.) 182 m3/h @ 24 m.w.c.
Pump efficiency % 75
Fuel autonomy - Standard high skid fuel tank @ B.E.P. h 55
Fuel autonomy - optional eco skid fuel tank @ B.E.P. h 19


Engine Data

 PAS4-KDS3A

Model
Kubota V2403-M-DI
Type
Vertical 4-cycle diesel
Cylinders 4
Governor Machanical
Combustion System Direct Injection
Cooling System Watercooled
Max. continuous power kW 25.7
Max. Speed rpm 2200
Exhaust emission compliance EU Stage IIIA


Pump Data

 PAS4-KDS3A

Endurance Series Type P4-220G
Operating Speed rpm 1200-2200
Maximum absorbed Power kW 18.2
Centrifugal Pump kW 16.0
Priming System kW 2.2
Pump Casing Cast Iron GG20
Impeller Ductile Iron GGG50
Pump Shaft Material Steel 38 Ni Cr Mo 4
Shaft Sleeve AISI 316 Sleeve
Coupling SAE 4 - V7.5"
O-Rings Viton


Dimension and Weight - LxWxH

PAS4-KDS3A

Standard Suction | discharge

 DN100 (4")

Standard high skid frame

mm

 2145 x 950 x 1368

Standard economy skid frame

mm

 2145 x 950 x 1168

Optional Trailer mounted. Standard fuel tank

mm

 3771 x 1571 x 1972

Optional trailer mounted. Economy skid fuel tank

mm

 3771 x 1571 x 1772

Weight (dry)

kg

 1070

Weight of the undercarriage

kg

 276

Max. sound power level (LWA) (a) according to 2000/14/EC/OND

dB(A)

 93

Max. sound pressure level (LPA) at full load and 7m

 dB(A) 67
